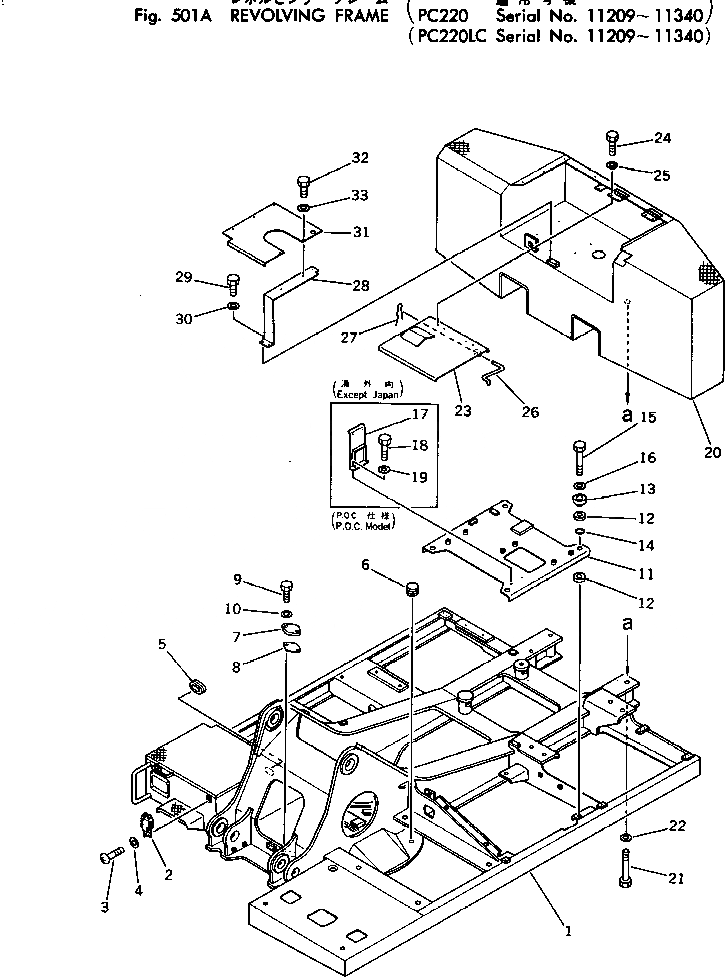

Запчасти Komatsu PC220LC-2 ОСНОВНАЯ РАМА(№9-) ОСНОВНАЯ РАМА И КАБИНА

1

206-46-43110

FRAME

2

195-57-11530

CATCH CLIP

3

01220-40512

SCREW

4

01641-20508

WASHER

5

170-43-11370

GROMMET

6

09415-03614

CAP

7

203-46-31131

COVER

8

203-46-31181

GASKET

9

01010-31230

BOLT

10

01643-31232

WASHER

11

205-46-63161

PLATE

12

205-46-51240

CUSHION

13

205-46-63270

COLLAR

14

07000-03028

O-RING

15

01010-31660

BOLT

16

01643-31645

WASHER

17

205-46-63441

BRACKET,(P.O.C. MODEL) (EXCEPT JAPAN)

18

01010-31230

BOLT,(P.O.C. MODEL) (EXCEPT JAPAN)

19

01643-31232

WASHER,(P.O.C. MODEL) (EXCEPT JAPAN)

20

206-46-43122

WEIGHT,COUNTER

21

234-977-1750

BOLT

22

01643-32460

WASHER

23

206-46-43133

COVER

24

01010-31225

BOLT

25

01643-31232

WASHER

26

206-46-43160

BAR

27

04052-00633

PIN,SNAP

28

206-46-43151

FRAME

29

01010-31225

BOLT

30

01643-31232

WASHER

31

206-46-43141

COVER

32

01010-31225

BOLT

33

01643-31232

WASHER
