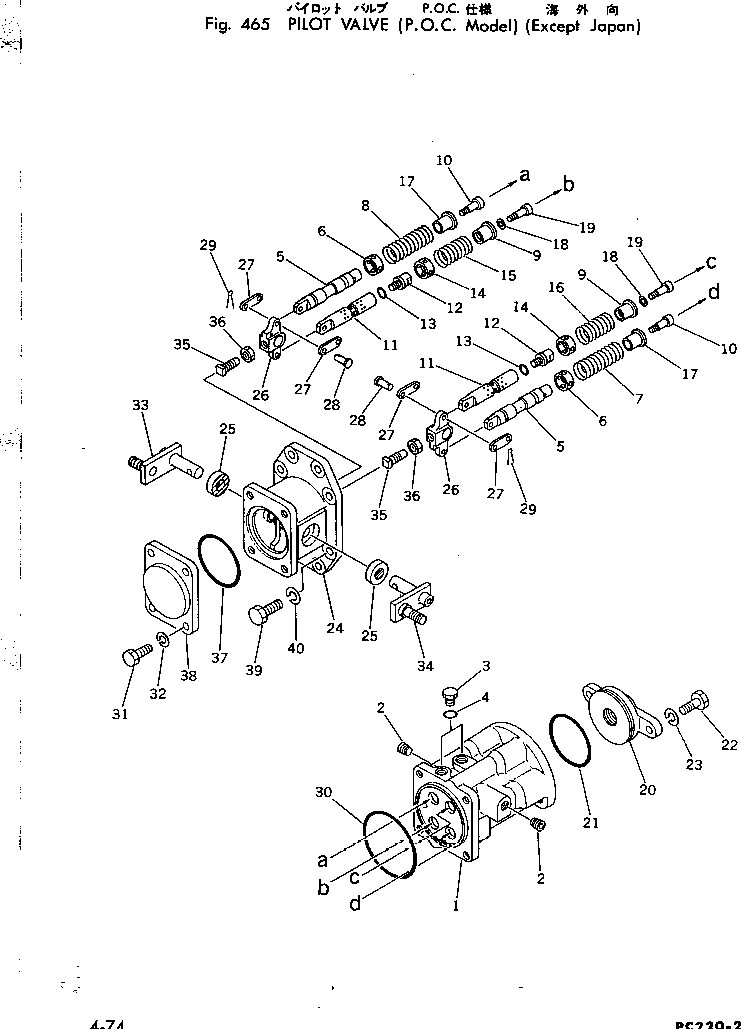

Запчасти Komatsu PC220LC-2 ГЛАВН. КЛАПАН (P.O.C. MODEL) (КРОМЕ ЯПОН.) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

702-16-16001

PILOT VALVE ASS'Y

1

BODY,VALVE

2

07043-00108

PLUG

3

07040-10807

PLUG

4

07002-00823

O-RING

5

SPOOL

6

702-16-11151

SPACER

7

702-16-11191

SPRING

8

702-16-14120

SPRING

9

702-16-11160

SPACER

10

702-16-11170

PLUG

11

SPOOL

12

702-16-11560

PLUG

13

07002-00823

O-RING

14

702-16-11151

SPACER

15

702-16-14130

SPRING

16

702-16-11580

SPRING

17

702-16-11160

SPACER

18

702-16-11590

SHIM, 1.0MM

19

702-16-11170

PLUG

20

702-16-11210

COVER

21

07000-03050

O-RING

22

01010-50820

BOLT

23

01602-20825

WASHER,SPRING

24

702-16-11221

CASE

25

702-16-11481

SEAL,OIL

26

702-16-11371

LEVER

27

702-16-11231

PLATE

28

702-16-11240

PIN

29

04050-11208

PIN,COTTER

30

07000-02070

O-RING

31

01010-50820

BOLT

32

01602-20825

WASHER,SPRING

33

702-16-16120

LEVER

34

702-16-16120

LEVER

35

702-16-11610

SCREW

36

01580-00806

NUT

37

07000-03050

O-RING

38

702-16-11650

COVER

39

01010-50820

BOLT

40

01602-20825

WASHER,SPRING
