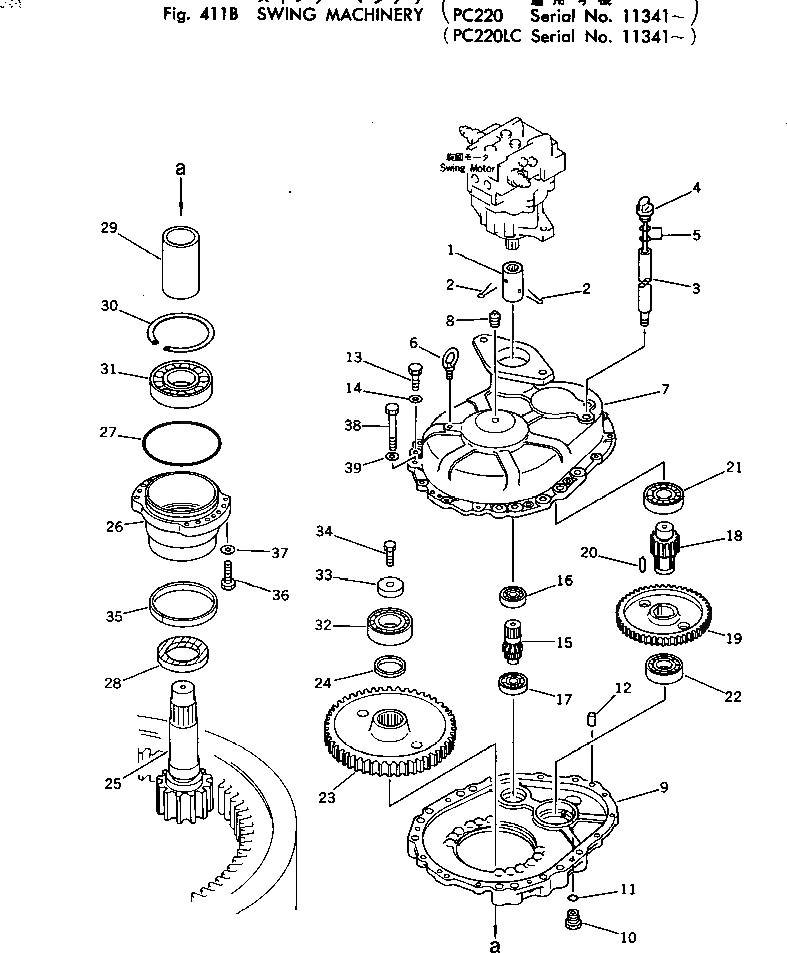

Запчасти Komatsu PC220LC-2 МЕХАНИЗМ ПОВОРОТА(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

1

205-26-62350

COUPLING

2

04050-15055

PIN,COTTER

3

205-26-61110

FILLER

4

205-26-61120

GAUGE

5

07000-03022

O-RING

6

04530-11628

BOLT,EYE

7

205-26-62212

CASE,UPPER

8

07042-10108

PLUG

9

205-26-62221

CASE,LOWER

10

07044-12412

PLUG,DRAIN

11

07002-02434

O-RING

12

04020-01638

PIN,DOWEL

13

01010-51645

BOLT

14

01643-31645

WASHER

15

205-26-62150

SHAFT

16

12R-09-15110

BEARING,ROLLER

17

06040-06307

BEARING,BALL

18

205-26-51250

SHAFT

19

205-26-62140

GEAR

20

205-26-51260

KEY

21

06044-00311

BEARING,ROLLER

22

06040-06311

BEARING,BALL

23

205-26-11421

GEAR

24

205-26-51210

SPACER

25

205-26-62252

SHAFT

26

205-26-62231

CAGE

27

07000-05230

O-RING

28

07012-00120

SEAL

29

205-26-51192

COLLAR

30

04071-00190

RING,SNAP

31

205-26-51220

BEARING,ROLLER

32

145-27-41221

BEARING,ROLLER

33

205-26-62290

HOLDER

34

01010-52460

BOLT

35

205-26-62171

SEAL

36

01010-31455

BOLT

37

01643-31445

WASHER

38

01011-82010

BOLT

39

01643-32060

WASHER
