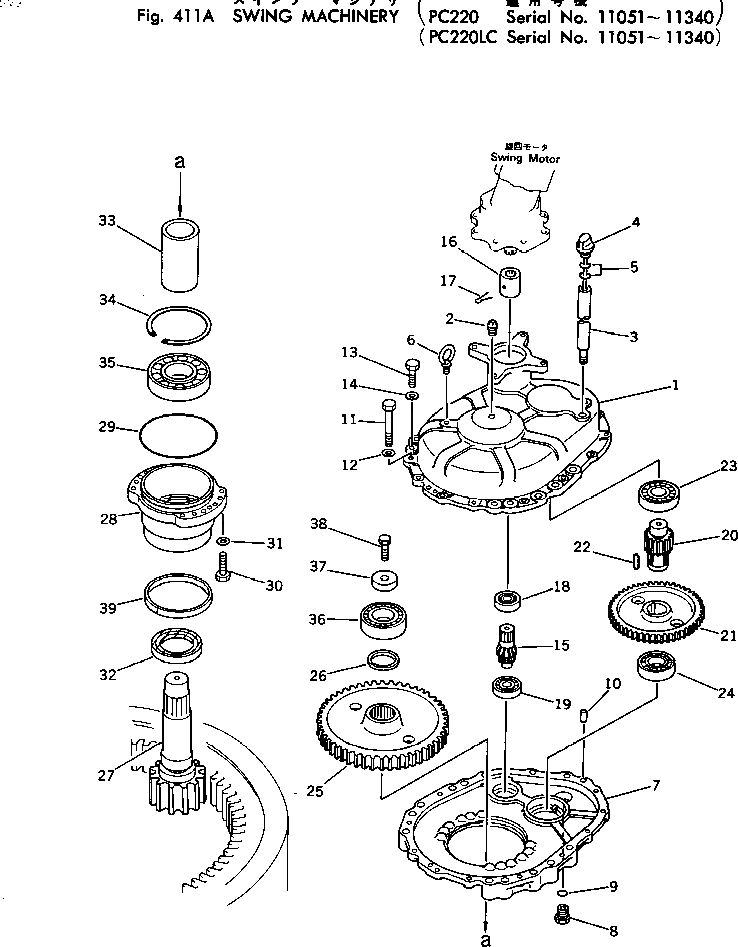

Запчасти Komatsu PC220LC-2 МЕХАНИЗМ ПОВОРОТА(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

1

205-26-62211

CASE,UPPER

2

07042-10108

PLUG

3

205-26-61110

FILLER

4

205-26-61120

GAUGE

5

07000-03022

O-RING

6

04530-11628

BOLT,EYE

7

205-26-62221

CASE,LOWER

8

07044-12412

PLUG,DRAIN

9

07002-02434

O-RING

10

04020-01638

PIN,DOWEL

11

01011-62010

BOLT

12

01643-32060

WASHER

13

01010-51645

BOLT

14

01643-31645

WASHER

15

205-26-62150

SHAFT

16

205-26-62160

COUPLING

17

04050-05055

PIN,COTTER

18

12R-09-15110

BEARING,ROLLER

19

06040-06307

BEARING,BALL

20

205-26-51250

SHAFT

21

205-26-62140

GEAR

22

205-26-51260

KEY

23

06044-00311

BEARING,ROLLER

24

06040-06311

BEARING,BALL

25

205-26-11421

GEAR

26

205-26-51210

SPACER

27

205-26-62252

SHAFT

28

205-26-62231

CAGE

29

07000-05230

O-RING

30

01010-51455

BOLT

31

01643-31445

WASHER

32

07012-00120

SEAL

33

205-26-51192

COLLAR

34

04071-00190

RING,SNAP

35

205-26-51220

BEARING,ROLLER

36

145-27-41221

BEARING,ROLLER

37

205-26-62290

HOLDER

38

01010-52460

BOLT

39

205-26-62171

SEAL
