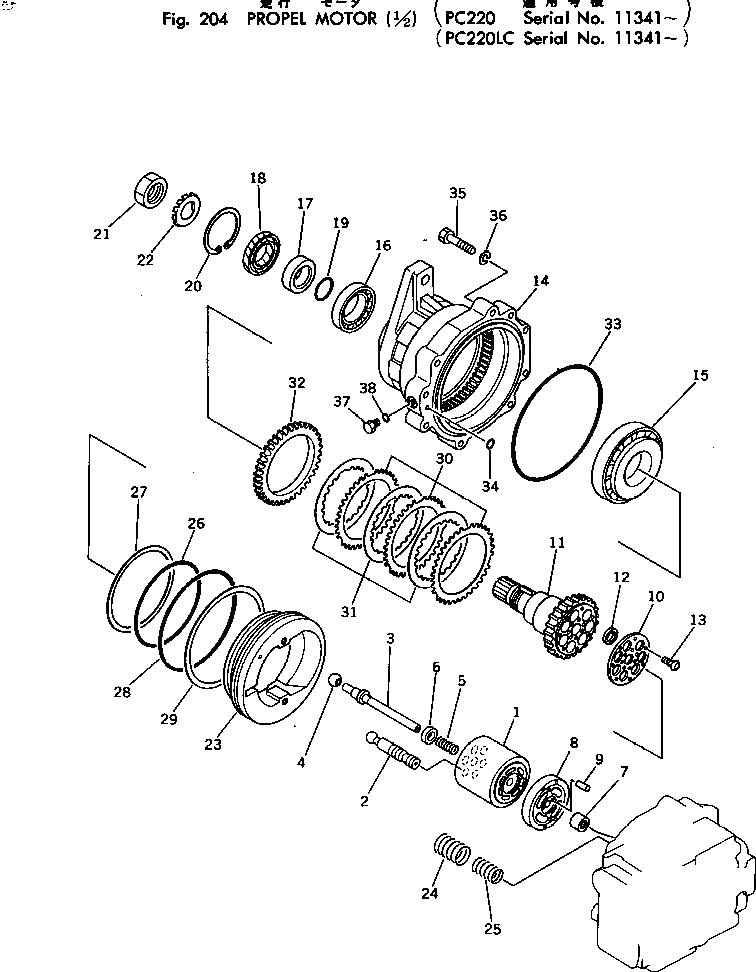

Запчасти Komatsu PC220LC-2 PКАНАТL МОТОР (/)(№-) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

706-75-10100

TRAVEL MOTOR ASS'Y

1

BLOCK,CYLINDER

2

PISTON ASS'Y

3

SHAFT,CENTER

4

BALL,CENTER

5

SPRING

6

RING,CENTER

7

BEARING

8

PLATE,VALVE

9

PIN,DOWEL

10

RETAINER

11

SHAFT,DRIVE

12

HOLDER

13

SCREW

14

CASE,BRAKE

15

BEARING

16

BEARING

17

RING

18

706-76-40920

SEAL,OIL

19

O-RING

20

04065-09030

RING,SNAP

21

NUT

22

WASHER,LOCK

23

PISTON,BRAKE

24

SPRING

25

SPRING

26

O-RING

27

RING,BACK-UP

28

O-RING

29

RING,BACK-UP

30

PLATE

31

DISC

32

PLATE

33

O-RING

34

O-RING

35

BOLT

36

WASHER,SPRING

37

07040-10807

PLUG

38

07002-10823

O-RING
