Запчасти Komatsu PC220LC-2 PКАНАТL МОТОР (/)(№-) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

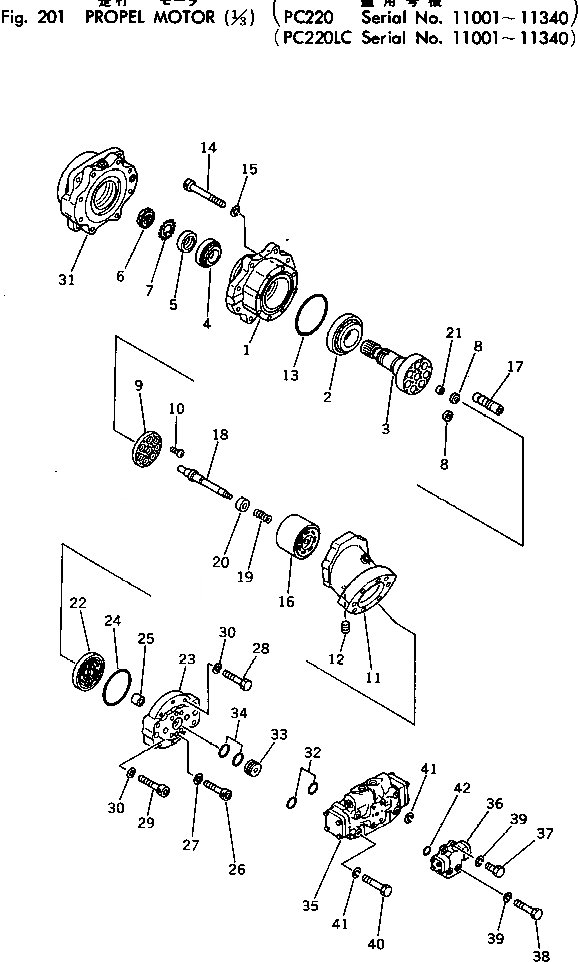

Схема запчастей Komatsu PC220LC-2 - PКАНАТL МОТОР (/)(№-) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

Артикул

Название

Примечание

Количество

|$0

706-75-36901

PROPEL MOTOR ASS'Y,(KMF90ADS)

|$1

706-75-43004

MOTOR ASS'Y,(KMFO90)

1

COVER,FRONT

2

BEARING (KIT)

3

SHAFT,DRIVE (KIT)

4

BEARING

5

RING

6

NUT

7

WASHER,LOCK (KIT)

8

HOLDER (KIT)

9

RETAINER (KIT)

10

SCREW (KIT)

11

PLATE

12

706-73-40360

PLUG

13

O-RING (KIT)

14

BOLT

15

WASHER,SPRING

16

BLOCK,CYLINDER (KIT)

17

PISTON ASS'Y (KIT)

18

SHAFT,CENTER (KIT)

19

SPRING (KIT)

20

RING,CENTER (KIT)

21

BALL,CENTER (KIT)

22

PLATE,VALVE

23

COVER,END

24

O-RING (KIT)

25

BEARING

26

BOLT (KIT)

27

GASKET,SEAL (KIT)

28

BOLT

29

BOLT

30

WASHER,SPRING

31

706-75-92001

PARKING BRAKE A.

32

07000-13032

O-RING

33

706-75-90190

RING

34

07000-03035

O-RING

35

706-75-72901

BRAKE VALVE ASS'Y

36

706-75-77400

SHUTTLE VALVE ASS'Y

37

01010-50825

BOLT

38

01010-50850

BOLT

39

01602-20825

WASHER,SPRING

40

01011-51215

BOLT

41

01643-31232

WASHER

42

07000-12010

O-RING

|$44

706-98-05030

DRIVE SHAFT KIT

|$45

BEARING

|$46

SHAFT,DRIVE

|$47

WASHER,LOCK

|$48

HOLDER

|$49

RETAINER

|$50

SCREW

|$51

O-RING

|$52

BLOCK,CYLINDER

|$53

PISTON ASS'Y

|$54

SHAFT,CENTER

|$55

SPRING

|$56

RING,CENTER

|$57

BALL,CENTER

|$58

O-RING

|$59

BOLT

|$60

GASKET,SEAL

|$61

O-RING

|$62

SEAL,OIL
