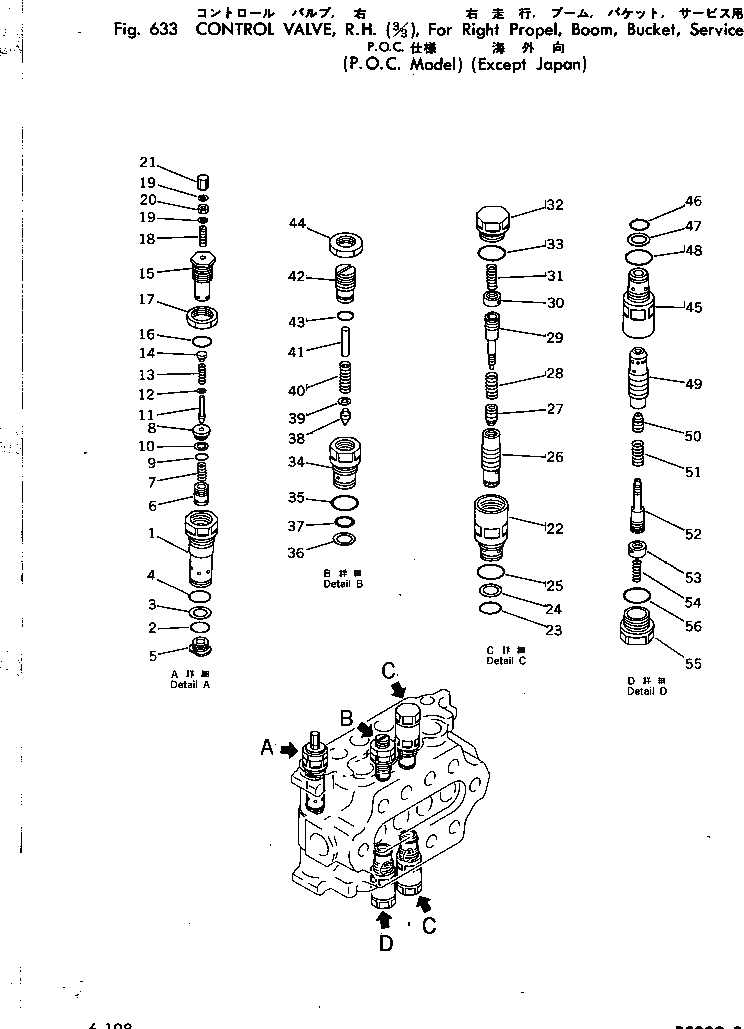

Запчасти Komatsu PC220LC-2 УПРАВЛЯЮЩ. КЛАПАН¤ПРАВ.(/)ДЛЯ ПРАВ. ХОД¤СТРЕЛА¤КОВШ¤SERVICE((№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-94-22002

CONTROL VALVE ASS'Y

|$1

700-94-22001

CONTROL VALVE ASS'Y

|$2

700-92-55000

RELIEF VALVE ASS'Y

1

SLEEVE

2

700-93-11320

O-RING

3

700-93-11330

RING,BACK-UP

4

07002-03634

O-RING

5

PLUG

6

VALVE

7

700-90-51320

SPRING

8

700-90-51150

SEAT

9

07000-22016

O-RING

10

07001-02016

RING,BACK-UP

11

700-80-61190

POPPET

12

700-80-51240

SPACER

13

700-90-51160

SPRING

14

700-90-51250

RETAINER

15

700-90-51270

HOLDER

16

07002-03034

O-RING

17

700-90-51190

NUT

18

700-90-51281

SCREW

19

700-90-51290

WASHER,SEAL

20

01580-00806

NUT

21

700-90-51311

NUT

|$24

700-90-68001

VALVE ASS'Y

22

SLEEVE

23

700-93-11320

O-RING

24

700-93-11330

RING,BACK-UP

25

07002-03634

O-RING

26

VALVE

27

POPPET

28

SPRING

29

PISTON

30

NUT

31

SPRING

32

PLUG

33

O-RING

|$37

700-90-75000

VALVE ASS'Y

34

SLEEVE

35

07002-03634

O-RING

36

700-93-11330

RING,BACK-UP

37

700-93-11320

O-RING

38

POPPET

39

WASHER

40

SPRING

41

STOPPER

42

PLUG

43

O-RING

44

NUT

|$49

700-90-63000

SUCTION VALVE ASS'Y

45

SLEEVE

46

700-93-11320

O-RING

47

700-93-11330

RING,BACK-UP

48

07002-03634

O-RING

49

VALVE

50

POPPET

51

SPRING

52

PISTON

53

NUT

54

700-90-61170

SPRING

55

700-90-61180

PLUG

56

07002-13634

O-RING
