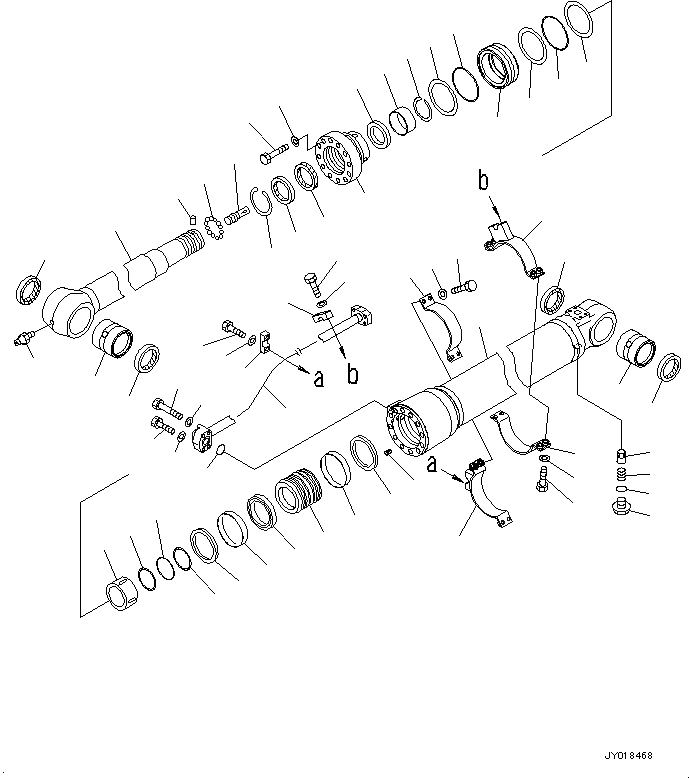

Запчасти Komatsu PC220-8M0 ЦИЛИНДР РУКОЯТИ T [РАБОЧЕЕ ОБОРУДОВАНИЕ]
![Схема запчастей Komatsu PC220-8M0 - ЦИЛИНДР РУКОЯТИ T [РАБОЧЕЕ ОБОРУДОВАНИЕ]](https://partsell.ru/storage/images/komatsu/KC_EB020/t00291a.png)
1
3
35
2
17
16
19
23
24
26
27
28
31
9
30
29
32
12
7
13
14
45
41
4
28
31
29
5
6
4
33
34
36
40
50
48
42
47
49
46
39
6
20
22
25
18
15
21
11
8
11
10
43
44
37
41
43
44
40
38
45
46
-
707-E1-00260
CYLINDER ASSEMBLY
1
721-13-14010
CYLINDER
2
721-58-10070
ROD, PISTON
3
707-76-80010
BUSHING
4
07145-00080
SEAL, DUST\((K03)\)
5
707-76-80010
BUSHING
6
07145-00080
SEAL, DUST\((K03)\)
7
07020-00000
FITTING, GREASE
8
707-71-35150
COLLAR
9
707-71-71020
PLUNGER
10
07000-B5130
O-RING\((K03)\)
11
707-35-31310
RING, BACK-UP\((K03)\)
12
707-71-80320
PLUNGER
13
04260-00635
BALL, STEEL
14
707-71-91270
CAP
15
707-27-14690
HEAD, CYLINDER
16
707-56-10740
SEAL, DUST\((K03)\)
17
07179-13114
RING, SNAP
18
707-52-90781
BUSHING
19
707-51-10860
PACKING, ROD\((K03)\)
20
707-51-10650
RING, BUFFER\((K03)\)
21
707-35-31310
RING, BACK-UP\((K03)\)
22
07000-B5130
O-RING\((K03)\)
23
01010-81875
BOLT
24
707-41-11840
WASHER
25
707-75-10160
RING, SNAP
26
707-36-14650
PISTON
27
707-44-14150
RING, PISTON\((K03)\)
28
707-39-14110
RING, WEAR\((K03)\)
29
707-35-30900
RING, BACK-UP\((K03)\)
30
07000-B5090
O-RING\((K03)\)
31
707-44-14910
RING, BACK-UP
32
01310-01216
SCREW
33
707-83-13010
VALVE
34
07750-01628
SPRING
35
707-87-14071
PLUG
36
07002-62034
O-RING\((K03)\)
37
707-86-67810
TUBE
38
707-88-51260
BRACKET
39
707-88-51270
BRACKET
