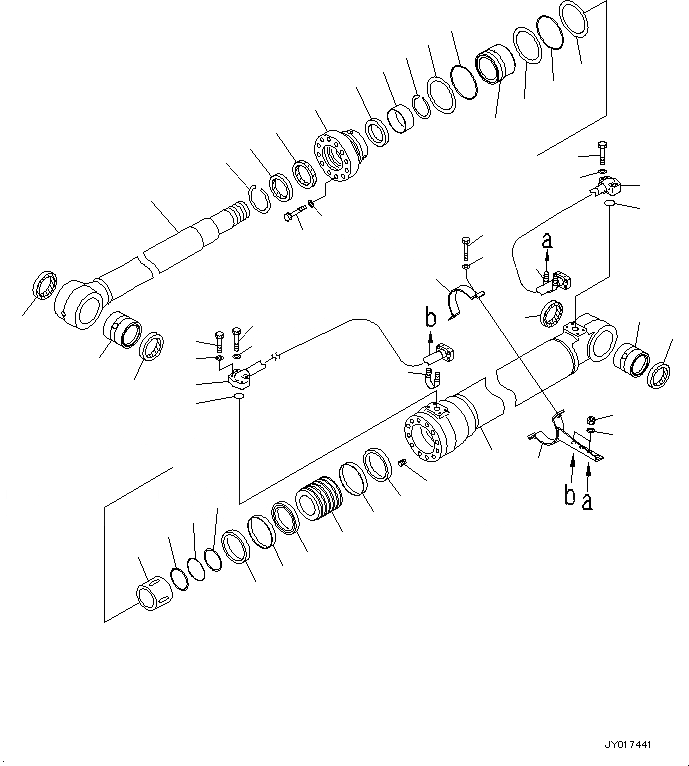

Запчасти Komatsu PC220-8M0 ЦИЛИНДР СТРЕЛЫ(ПРАВ.) T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

-

707-E1-00161

CYLINDER ASSEMBLY

1

721-13-13150

CYLINDER

2

707-58-90E50

ROD, PISTON

3

707-76-80431

BUSHING

4

07145-00080

SEAL, DUST\((K02)\)

5

707-76-80431

BUSHING

6

07145-00080

SEAL, DUST\((K02)\)

7

707-71-34690

COLLAR

8

707-35-31210

RING, BACK-UP\((K02)\)

9

07000-B5120

O-RING\((K02)\)

10

707-71-60970

PLUNGER

11

707-27-13650

CYLINDER HEAD

12

07179-13104

RING, SNAP

13

707-56-90740

SEAL, DUST\((K02)\)

14

707-52-90681

BUSHING

15

707-51-90860

PACKING, ROD\((K02)\)

16

707-51-90650

RING, BUFFER\((K02)\)

17

07000-B5120

O-RING\((K02)\)

18

707-35-31210

RING, BACK-UP\((K02)\)

19

01010-81670

BOLT

20

01643-51645

WASHER

21

707-75-90110

RING, SNAP

22

707-36-13780

PISTON

23

707-44-13150

RING, PISTON\((K02)\)

24

707-39-13150

RING, WEAR\((K02)\)

25

707-44-13911

RING

26

07000-B5080

O-RING\((K02)\)

27

707-35-30800

RING, BACK-UP\((K02)\)

28

01310-01216

SCREW

29

707-86-69010

TUBE

30

707-86-00760

TUBE

31

707-88-51060

BRACKET

32

07372-21060

BOLT

33

01643-51032

WASHER

34

07372-21045

BOLT

35

01643-51032

WASHER

36

707-88-21331

BAND

37

07000-B3030

O-RING\((K02)\)

38

07000-B3035

O-RING\((K02)\)

39

07372-21035

BOLT
