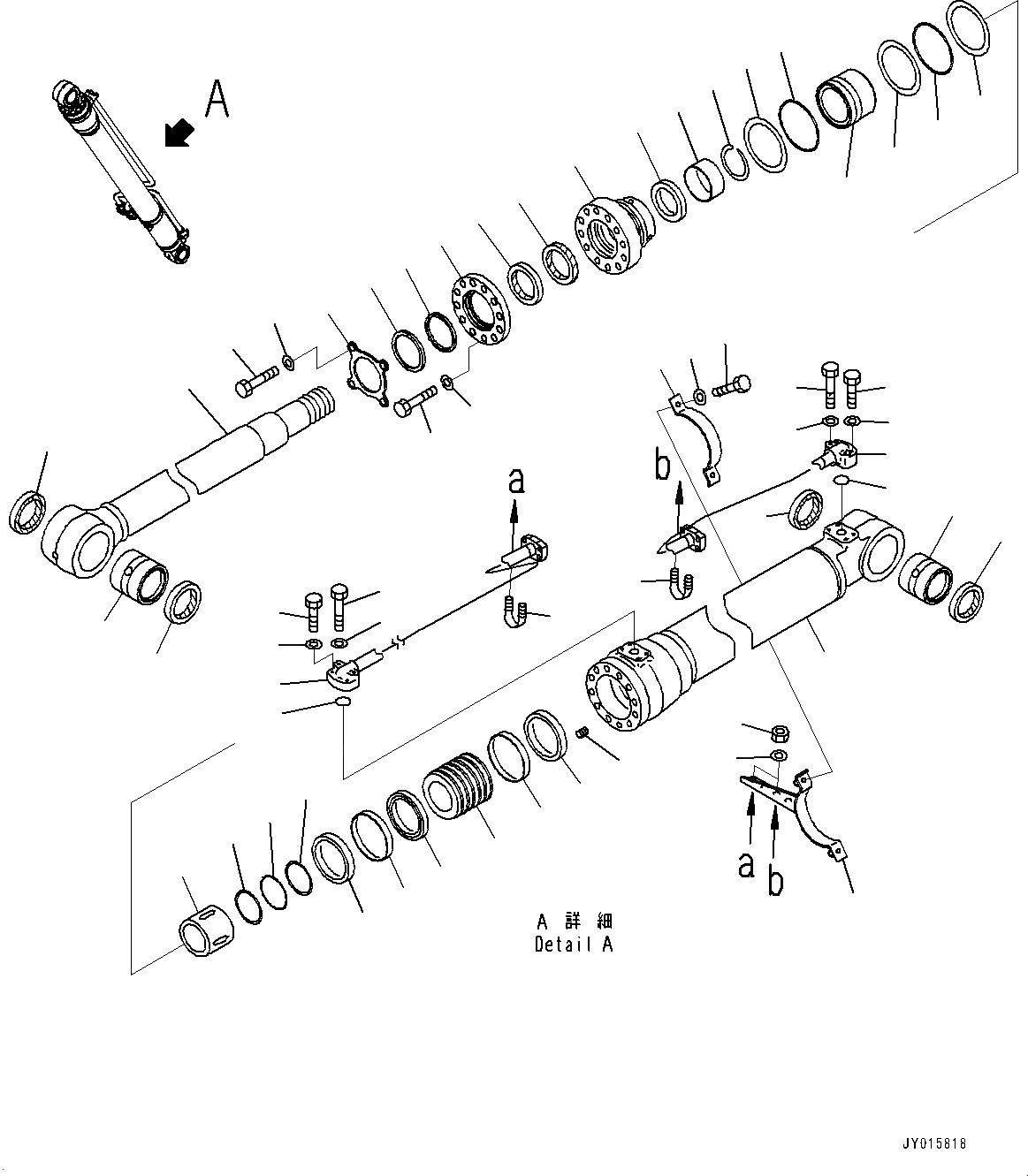

Запчасти Komatsu PC220-8 ЦИЛИНДР СТРЕЛЫ, ВНУТР. ЧАСТИ, ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№8-) ЦИЛИНДР СТРЕЛЫ, ЧАС. СМАЗКА INTERVAL, С WEBASTO ОБОГРЕВАТЕЛЬ.

|$0

707-01-0K640

Cylinder Assembly

1

707-13-13980

Cylinder

2

707-58-90F20

Rod, Piston

3

206-70-55280

Bushing

4

07145-10080

Seal, Dust, (Kit : K06)

5

707-76-80010

Bushing

6

07145-10080

Seal, Dust, (Kit : K06)

7

707-71-34670

Collar

8

707-35-91320

Ring, Back-up, (Kit : K06)

9

07000-55120

O-ring, (Kit : K06)

10

707-71-60970

Plunger

11

707-27-13650

Cylinder Head

12

707-56-90740

Seal, Dust, (Kit : K06)

13

707-52-90681

Bushing

14

707-51-90730

U-packing, (Kit : K06)

15

707-51-90650

Ring, Buffer, (Kit : K06)

16

07000-55120

O-ring, (Kit : K06)

17

707-35-91320

Ring, Back-up, (Kit : K06)

18

01010-81695

Bolt

19

707-75-90110

Ring, Snap

20

01011-81600

Bolt

21

01643-51645

Washer

22

707-88-05520

Plate

23

707-88-03921

Ring, Snap

24

707-56-90651

Seal, Dust, (Kit : K06)

25

707-88-05510

Collar

26

707-36-13780

Piston

27

707-44-13180

Ring, Piston, (Kit : K06)

28

707-39-13150

Ring, Wear, (Kit : K06)

29

707-44-13911

Ring

30

07000-55080

O-ring, (Kit : K06)

31

707-35-90940

Ring, Back-up, (Kit : K06)

32

01310-01216

Screw

33

707-86-67760

Tube

34

707-86-66310

Tube

35

707-88-28050

Bracket

36

07372-21060

Bolt

37

01643-51032

Washer

38

07372-21045

Bolt

39

01643-51032

Washer

40

707-88-21331

Band

41

07000-53030

O-ring, (Kit : K06)

42

07372-21035

Bolt

43

01643-51032

Washer

44

07283-32738

Clip, Pipe

45

01597-01009

Nut

46

01643-31032

Washer
