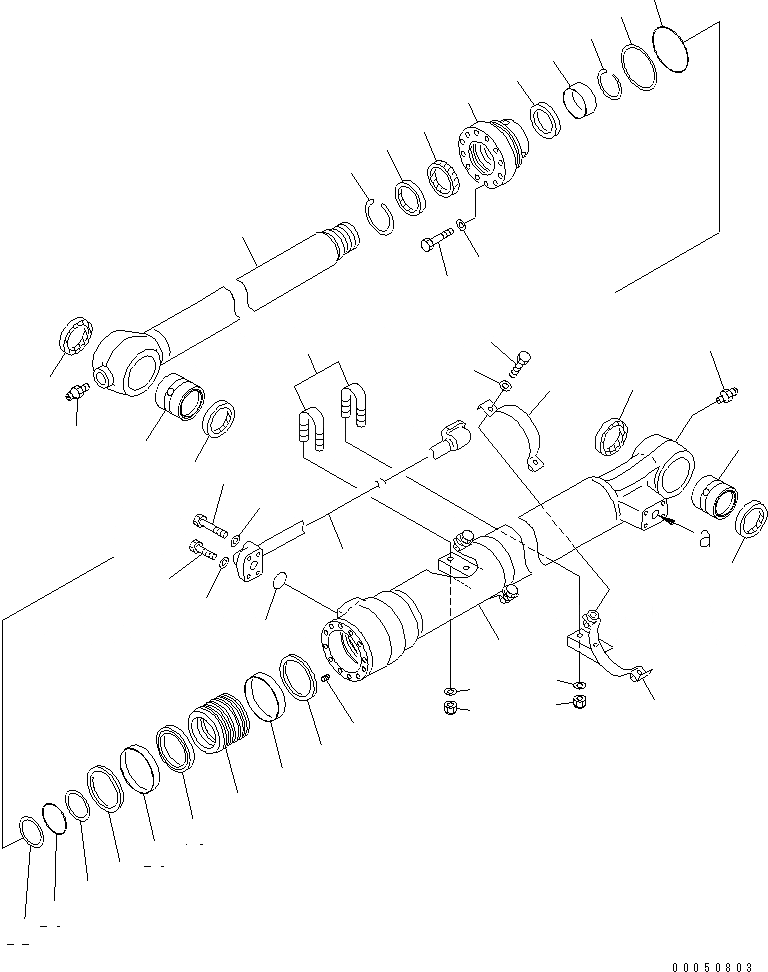

Запчасти Komatsu PC220-8 ЦИЛИНДР КОВША ( ЧАС. СИСТЕМА СМАЗКИ) (.8M РУКОЯТЬ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XR070

CYLINDER GROUP,(FINAL COATING)

|$3

707-01-0J080

CYLINDER ASS'Y

1

707-13-12590

CYLINDER

2

707-76-70651

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

707-58-85440

ROD,PISTON

5

707-76-70120

BUSHING

6

20Y-70-23220

SEAL,DUST (KIT)

7

707-27-12750

HEAD,CYLINDER

8

07179-13099

RING,SNAP

9

707-56-85510

SEAL,DUST (KIT)

10

707-52-90610

BUSHING

11

707-75-85110

RING

12

707-51-85030

PACKING,ROD (KIT)

13

07000-15115

O-RING (KIT)

14

707-35-91250

RING,BACK-UP (KIT)

15

707-51-85650

RING,BUFFER (KIT)

16

01010-81670

BOLT

17

01643-51645

WASHER

18

721-36-12030

PISTON

19

707-44-12250

RING,PISTON (KIT)

20

707-39-12560

RING,WEAR (KIT)

21

707-44-12921

RING

22

707-35-90930

RING,BACK-UP (KIT)

23

07000-15075

O-RING (KIT)

24

01310-01216

SCREW

25

07020-00000

FITTING,GREASE

26

07020-00000

FITTING,GREASE

27

707-86-67820

TUBE

28

07372-21060

BOLT

29

01643-51032

WASHER

30

07372-21045

BOLT

31

01643-51032

WASHER

32

07000-13030

O-RING (KIT)

33

707-88-22780

BRACKET

34

707-88-21530

BAND

35

07372-21035

BOLT

36

01643-51032

WASHER

37

07283-32738

CLIP

38

01597-01009

NUT

39

01643-31032

WASHER

|$44

707-99-47130

SERVICE KIT
