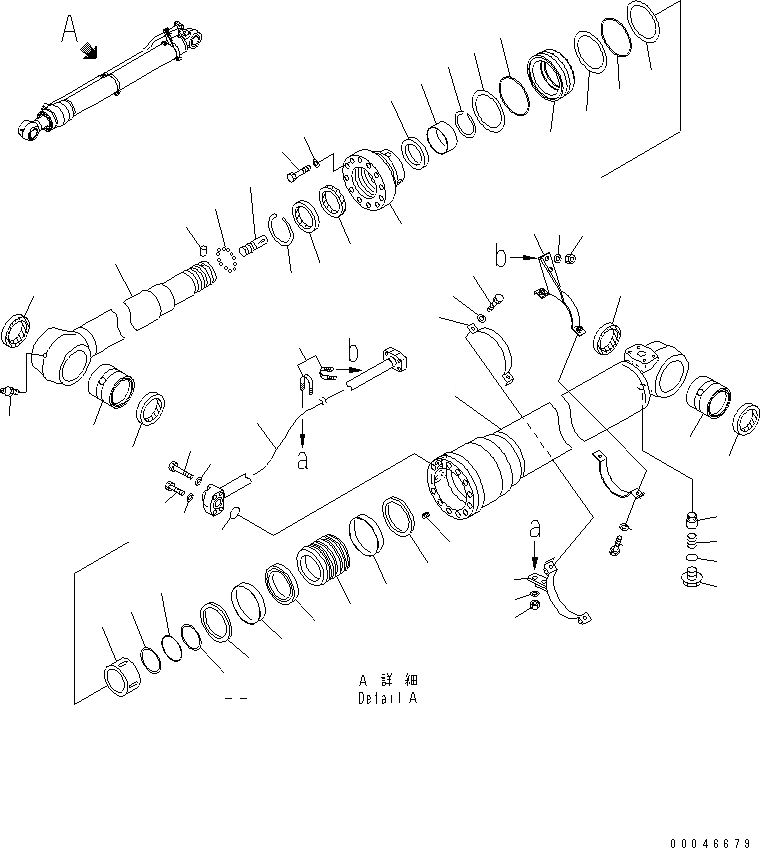

Запчасти Komatsu PC220-8 ЦИЛИНДР РУКОЯТИ(СИСТЕМА СМАЗКИ 100 ЧАС.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XR840

ARM CYLINDER GROUP,(FINAL COATING)

|$3

707-01-0J840

CYLINDER ASS'Y

1

707-13-14820

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST (KIT)

4

721-58-10070

ROD,PISTON

5

707-27-14690

HEAD,CYLINDER

6

07179-13114

RING,SNAP

7

176-63-56170

SEAL,DUST (KIT)

8

707-52-90780

BUSHING

9

707-75-10160

RING,SNAP

10

707-51-10030

PACKING,ROD (KIT)

11

07000-15130

O-RING (KIT)

12

707-35-91420

RING,BACK-UP (KIT)

13

707-51-10650

RING,BUFFER (KIT)

14

01010-81875

BOLT

15

707-41-11840

WASHER

16

707-36-14650

PISTON

17

707-44-14150

RING,PISTON (KIT)

18

707-39-14110

RING,WEAR (KIT)

19

707-44-14910

RING

20

707-71-71020

PLUNGER

21

07000-15090

O-RING (KIT)

22

07001-05090

RING,BACK-UP (KIT)

23

01310-01216

SCREW

24

707-71-80270

PLUNGER

25

07020-00000

FITTING,GREASE

26

707-71-34990

COLLAR

27

707-35-91420

RING,BACK-UP (KIT)

28

07000-15130

O-RING (KIT)

29

04260-00635

BALL

30

707-71-91270

CAP

31

707-83-13010

VALVE

32

07750-01628

SPRING

33

707-87-14070

PLUG

34

07002-12034

O-RING (KIT)

35

707-86-67810

TUBE

36

07372-21060

BOLT

37

01643-51032

WASHER

38

07372-21045

BOLT

39

01643-51032

WASHER

40

07000-13030

O-RING (KIT)

41

707-88-28090

BRACKET

42

707-88-28140

BAND

43

707-88-22630

BRACKET

44

707-88-21321

BAND

45

07372-21035

BOLT

46

01643-51032

WASHER

47

07283-32738

CLIP

48

01597-01009

NUT

49

01643-31032

WASHER

|$54

707-98-58240

SERVICE KIT
