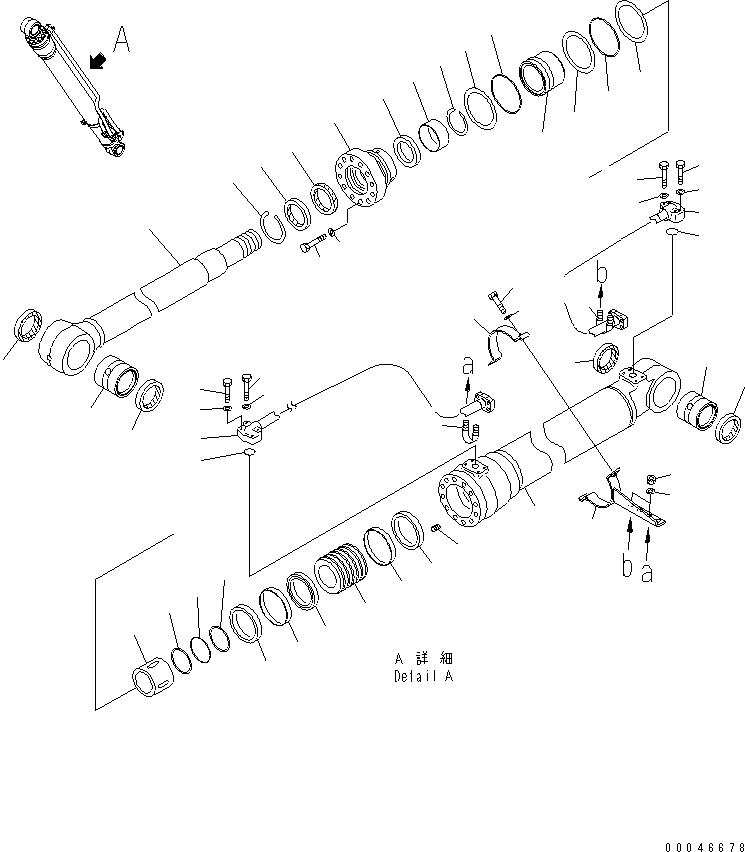

Запчасти Komatsu PC220-8 ЦИЛИНДР СТРЕЛЫ(ПРАВ.) ( ЧАС. СИСТЕМА СМАЗКИ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-2

707-01-XS490

BOOM CYLINDER GROUP,R.H. (FINAL COATING)

|$3

707-01-0H680

CYLINDER ASS'Y

1

707-13-13890

CYLINDER

2

707-76-80431

BUSHING

3

07145-00080

SEAL,DUST (KIT)

4

707-58-90E50

ROD,PISTON

5

707-76-80431

BUSHING

6

07145-00080

SEAL,DUST (KIT)

7

707-27-13650

HEAD,CYLINDER

8

07179-13104

RING,SNAP

9

195-63-94170

SEAL,DUST (KIT)

10

707-52-90680

BUSHING

11

707-75-90110

RING

12

707-51-90030

PACKING,ROD (KIT)

13

07000-15120

O-RING (KIT)

14

707-35-91320

RING,BACK-UP (KIT)

15

707-51-90650

RING,BUFFER (KIT)

16

01010-81670

BOLT

17

01643-51645

WASHER

18

707-36-13780

PISTON

19

707-44-13150

RING,PISTON (KIT)

20

707-39-13150

RING,WEAR (KIT)

21

707-44-13911

RING

22

707-71-60970

PLUNGER

23

07000-15080

O-RING (KIT)

24

707-35-90940

RING,BACK-UP (KIT)

25

01310-01216

SCREW

26

707-71-34670

COLLAR

27

707-35-91320

RING,BACK-UP (KIT)

28

07000-15120

O-RING (KIT)

29

707-86-67790

TUBE,R.H.

30

707-86-66330

TUBE,R.H.

31

07372-21060

BOLT

32

01643-51032

WASHER

33

07372-21045

BOLT

34

01643-51032

WASHER

35

07000-13030

O-RING (KIT)

36

707-88-28060

BRACKET,R.H.

37

707-88-21311

BAND

38

07372-21035

BOLT

39

01643-51032

WASHER

40

07283-32738

CLIP

41

01597-01009

NUT

42

01643-31032

WASHER

|$47

707-98-47730

SERVICE KIT
