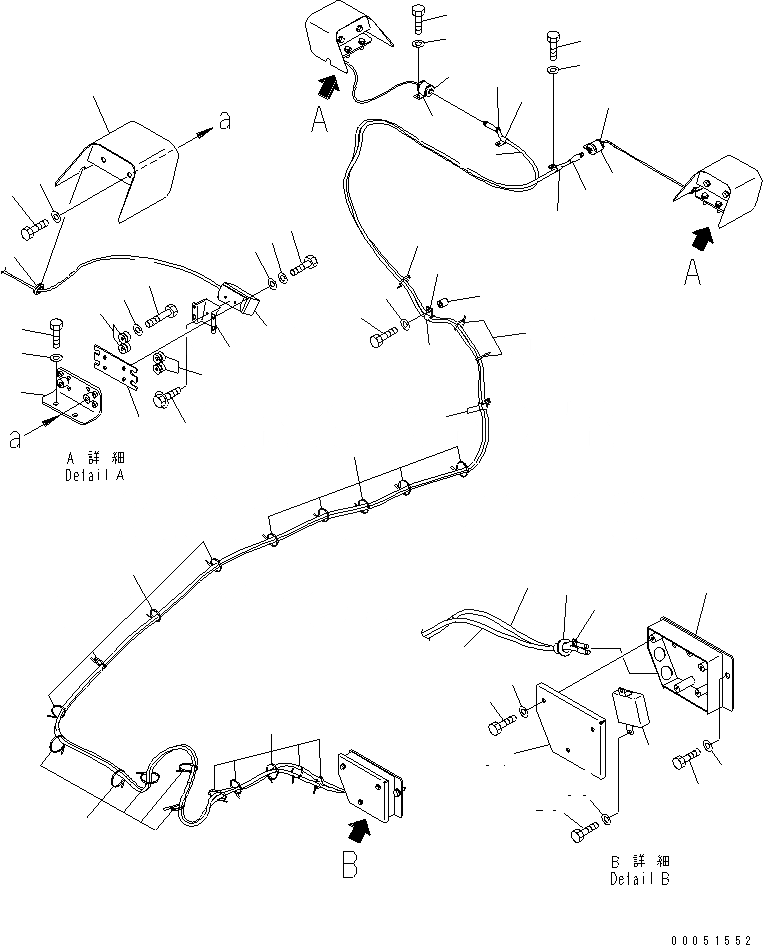

Запчасти Komatsu PC220-8 ЗАДН. VIEW МОНИТОРING СИСТЕМА ( CAMERA) ЭЛЕКТРИКА

|$1

7835-33-1001

CAMERA ASS'Y

|$2

7835-33-1000

CAMERA ASS'Y

1

CAMERA

2

BRACKET

2

BRACKET

3

BOLT

4

BOLT

5

WASHER

6

WASHER

7

20Y-06-41670

BRACKET

8

20Y-810-1240

CUSHION

9

01010-80835

BOLT

10

01643-30823

WASHER

11

20Y-06-41661

BRACKET

12

01010-81030

BOLT

13

01643-31032

WASHER

14

20Y-06-41681

COVER

15

201-54-13210

GROMMET

16

01010-81020

BOLT

17

01643-31032

WASHER

18

04434-53211

CLIP

19

07095-00317

CUSHION

20

04434-51010

CLIP

21

01010-81020

BOLT

22

01643-31032

WASHER

23

04434-51012

CLIP

24

195-33-11220

SPACER

25

01010-81250

BOLT

26

01643-31232

WASHER

27

08034-20536

BAND

28

7835-33-7000

TERMINAL BOX

29

01010-80820

BOLT

30

01643-30823

WASHER

31

20Y-06-41751

BRACKET

32

01010-81230

BOLT

33

01643-31232

WASHER

34

20Y-06-41761

COVER

35

01010-80820

BOLT

36

01643-30823

WASHER

37

7835-33-8500

WIRING HARNESS

38

7835-33-8500

WIRING HARNESS

39

20Y-62-22790

BAND, RED

40

08037-11825

GROMMET
