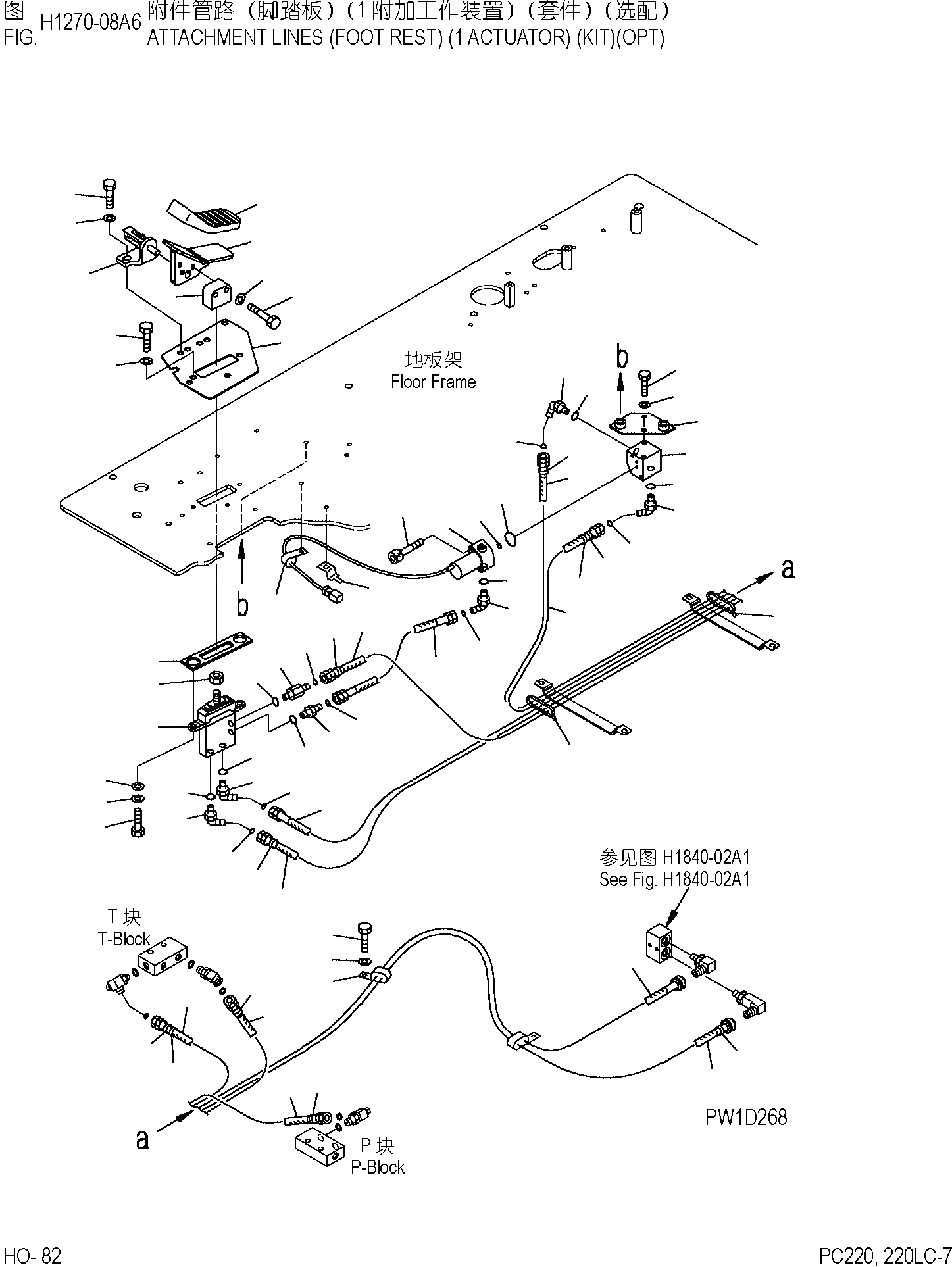

Запчасти Komatsu PC220-7 НАВЕСНОЕ ОБОРУД-Е (УПОР ДЛЯ НОГ) ( АКТУАТОР) (КОМПЛЕКТ) (ОПЦИОНН.) ГИДРАВЛИКА]

1

702-16-01230

PILOT VALVE

2

22U-54-25660

SEAL

3

22U-43-21470

SEAT

4

01010-81025

BOLT

5

01643-31032

WASHER

6

01643-31032

WASHER

7

20Y-62-25360

BRACKET

8

01010-D1025

BOLT

9

01643-71032

WASHER

10

20Y-43-31220

PEDAL

11

01010-D1045

BOLT

12

01643-71032

WASHER

13

22U-54-25541

PLATE

14

01010-81020

BOLT

15

01643-31032

WASHER

16

22U-54-25670

CAP

17

21W-62-43980

ELBOW

18

02896-11008

O-RING

19

07000-12011

O-RING

20

20Y-62-43470

NIPPLE

21

02896-11008

O-RING

22

11Y-62-12140

NIPPLE

23

02896-11008

O-RING

24

07000-12011

O-RING

25

02760-00212

HOSE

26

20Y-62-43490

HOSE, 2400MM

27

20Y-62-43510

HOSE, 2350MM

28

20Y-62-22790

BAND, RED

29

20Y-62-22810

BAND,YELLOW

30

20Y-62-22820

BAND, BLUE

31

20Y-62-22830

BAND, WHITE

32

08034-00519

BAND

33

20W-62-42240

HOSE

34

04435-51210

CLIP

35

01010-81016

BOLT

36

01643-31032

WASHER

37

01583-51408

NUT

38

702-21-07010

SOLENOID VALVE, EPC

39

203-60-62220

BOLT

40

700-93-11320

O-RING

41

07000-02011

O-RING

42

20Y-62-43410

BLOCK

43

01010-80820

BOLT

44

01643-30823

WASHER

45

20Y-62-43420

BRACKET

46

11Y-62-12160

ELBOW

47

02896-11008

O-RING

48

07002-11423

O-RING

49

21W-62-43960

ELBOW

50

02896-11008

O-RING

51

07002-11423

O-RING

52

08053-01510

CLIP

53

04434-51010

CLIP
