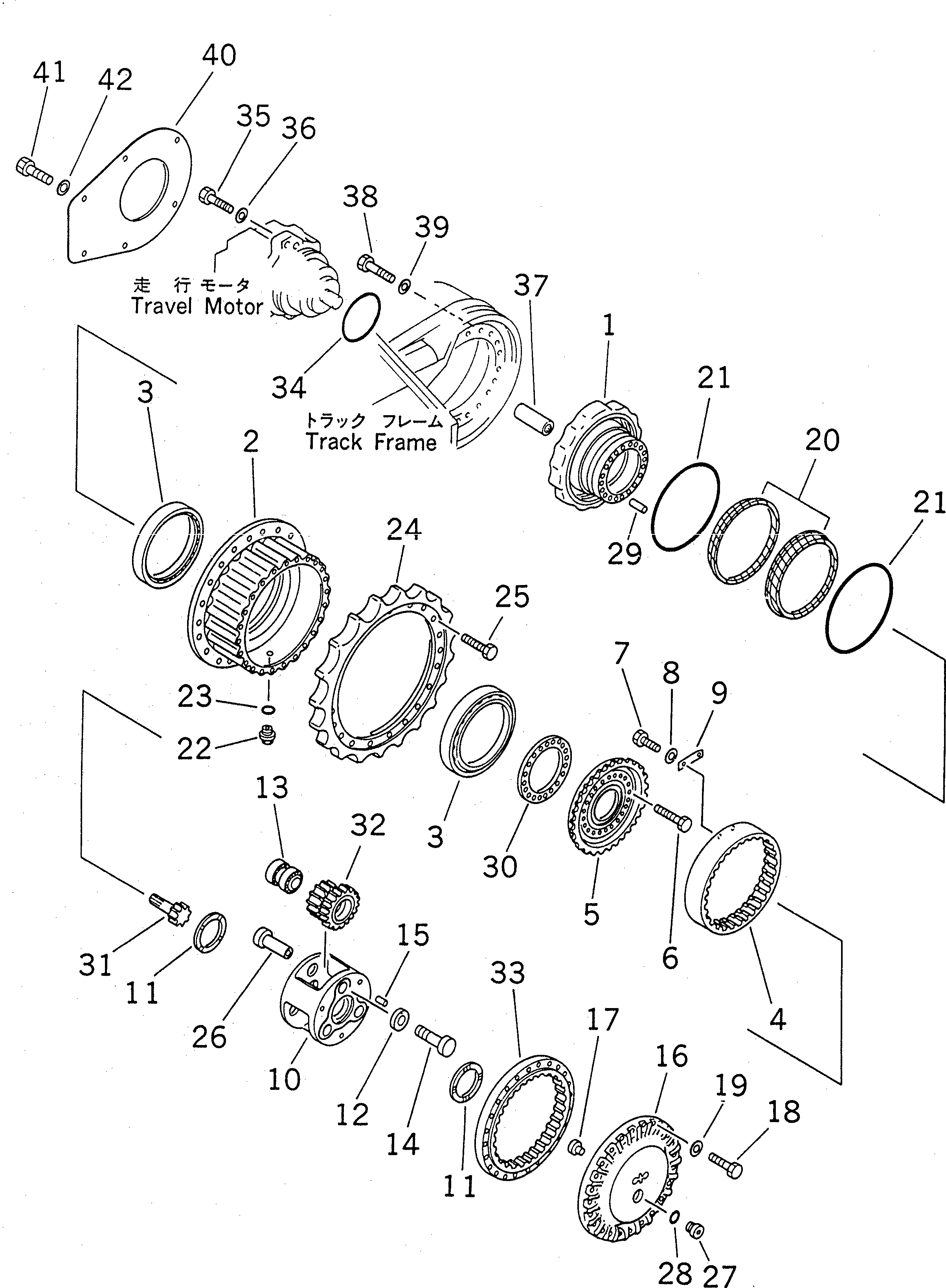

Запчасти Komatsu PC220-6Z КОНЕЧНАЯ ПЕРЕДАЧА (СКОРОСТЬ ДВИЖЕНИЯ 1)(№-77) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

1

205-27-71481

SHAFT

2

205-27-71471

HUB

3

20Y-27-11570

BEARING

4

205-27-71531

GEAR

5

205-27-71630

GEAR

6

205-27-71680

BOLT

7

01010-50820

BOLT

8

01643-50823

WASHER

9

205-27-71610

PLATE

10

205-27-71510

CARRIER

11

20Y-27-11250

SPACER

12

205-27-71592

COLLAR

13

205-27-71560

BEARING

14

01010-51465

BOLT

15

04020-00616

PIN

16

205-27-71492

COVER

17

205-27-71360

BUTTON

18

01010-51685

BOLT

19

01643-31645

WASHER

|$23

150-27-00029

FLOATING SEAL ASS'Y

20

RING

21

O-RING

22

07044-12412

PLUG

23

07002-02434

O-RING

24

205-27-71281

SPROCKET

25

205-27-71670

BOLT

26

205-27-71582

PIN

27

07040-12414

PLUG

28

07002-02434

O-RING

29

04020-01842

PIN

30

20Y-27-11310

SPACER, 4.85MM

30

20Y-27-11320

SPACER, 4.90MM,(ADJUSTMENT SPACER)

30

20Y-27-11330

SPACER, 4.95MM,(ADJUSTMENT SPACER)

30

20Y-27-11340

SPACER, 5.00MM,(ADJUSTMENT SPACER)

30

20Y-27-11350

SPACER, 5.05MM,(ADJUSTMENT SPACER)

30

20Y-27-11360

SPACER, 5.10MM,(ADJUSTMENT SPACER)

31

206-27-44112

GEAR

32

206-27-00010

PLANETARY GEAR A.

32

GEAR

33

206-27-44132

GEAR

34

07000-05190

O-RING

35

01010-51670

BOLT

36

01643-31645

WASHER

37

20Y-27-21370

COUPLING

38

01010-51670

BOLT

39

01643-31645

WASHER

40

20Y-30-24140

COVER,L.H.

40

20Y-30-11640

COVER,L.H.

40

20Y-30-24150

COVER,R.H.

40

20Y-30-11650

COVER,R.H.

41

01010-51230

BOLT

42

01643-31232

WASHER
