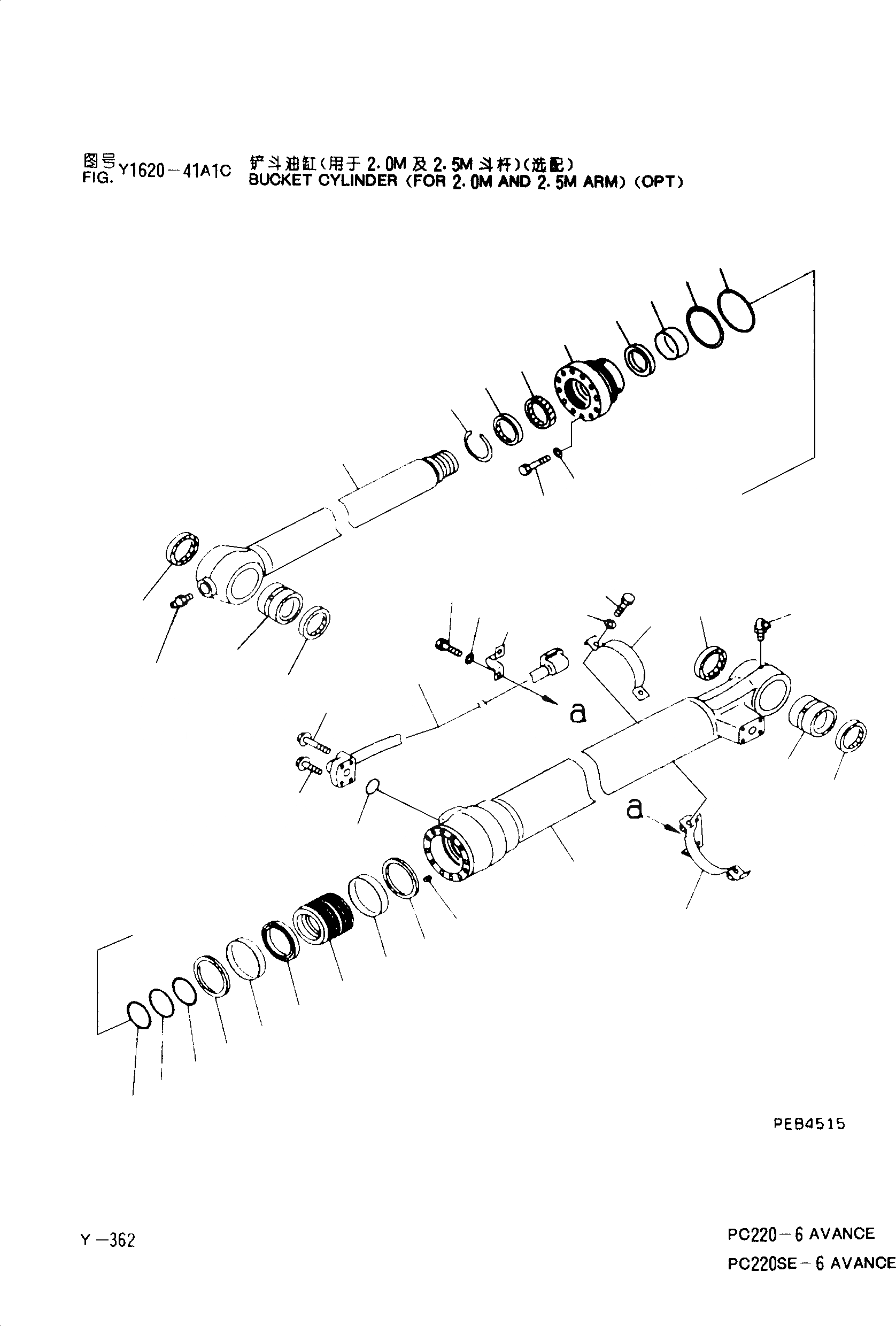

Запчасти Komatsu PC220-6 ЦИЛИНДР КОВША(ДЛЯ .M И .M РУКОЯТЬ)(ОПЦИОНН.) Y [РЕМ. КОМПЛЕКТЫ]

G1

206-63-X4140

BUCKETCYLINDERG

|$2

206-63-04140

CYLNDERASS'Y

1

206-63-73740

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST(KIT)

4

206-63-73720

ROD,PISTON

5

707-76-80020

BUSHING

6

20Y-70-23230

SEAL,DUST(KIT)

7

707-27-14920

HEAD,CYLINDER

8

07179-13114

RING,SNAP

9

176-63-56170

SEAL,DUST(KIT)

10

707-52-90780

BUSHING

11

707-51-10030

PACKING,ROD(KIT)

12

07000-15130

O-RING(KIT)

13

707-35-91420

RING,BACK-UP(KIT)

14

707-51-10640

RING,BUFFER(KIT)

15

01010-81875

BOLT

16

707-41-11840

WASHER

17

707-36-11410

PISTON

18

707-44-14180

RING,PISTON(KIT)

19

707-39-14820

RING,WEAR(KIT)

20

707-44-14910

RING

21

07001-05090

RING,BACK-UP(KIT)

22

07000-15090

O-RING(KIT)

23

01310-01216

SCREW

24

07020-00000

FITTINGGREASE

25

07020-00900

FITTINGGREASE

26

206-63-73770

TUBE

27

01435-01055

BOLT

28

01435-01040

BOLT

29

07000-13030

O-RING(KIT)

30

707-88-87100

BRACKET

31

707-88-87160

BAND

32

01010-51035

BOLT

33

01643-51032

WASHER

34

707-88-13590

CLAMP

35

01010-81040

BOLT

36

01643-31032

WASHER
