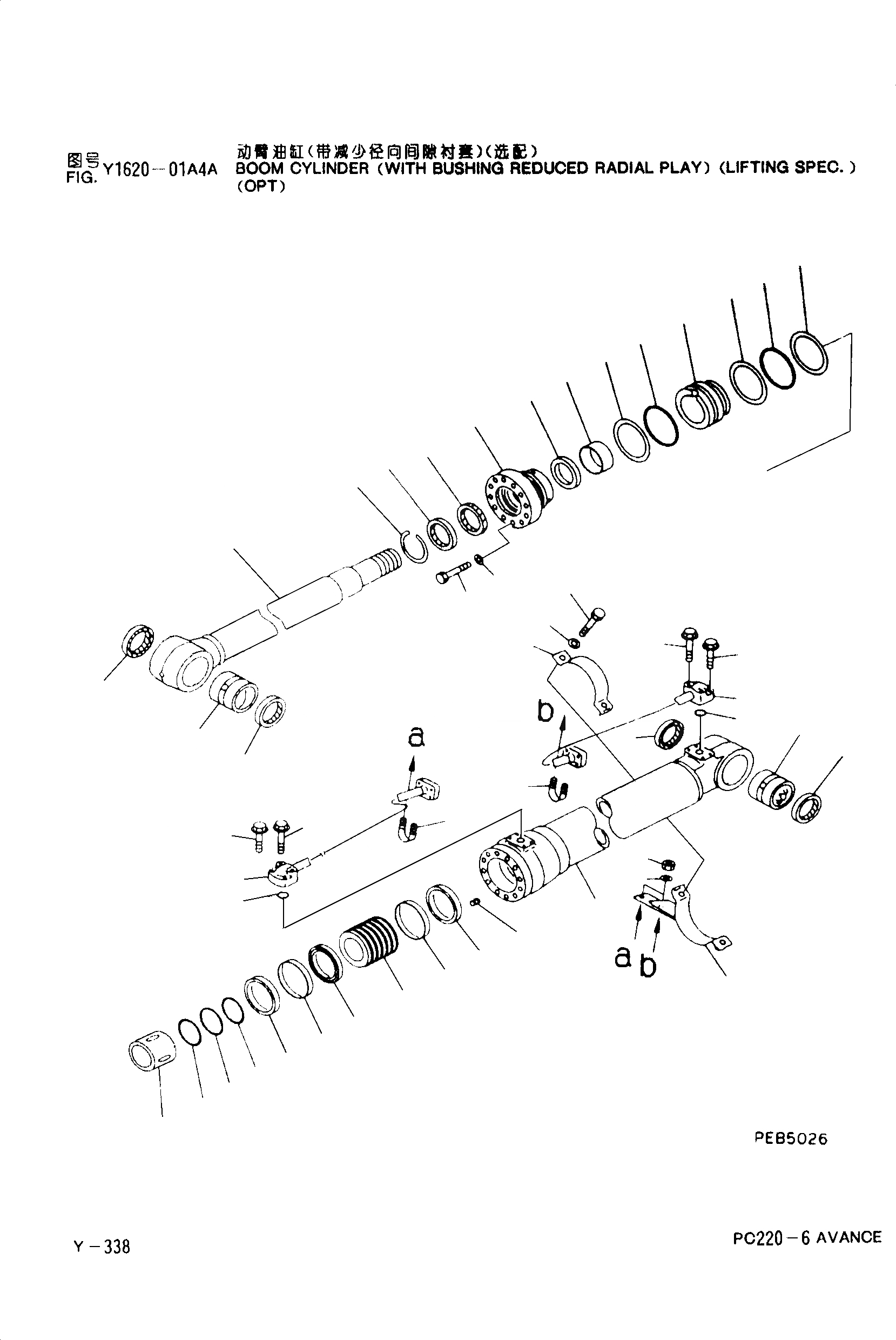

Запчасти Komatsu PC220-6 ЦИЛИНДР СТРЕЛЫ(С ВТУЛКА REDUCED RADIAL PLAY)(ПОДЪЕМ СПЕЦ-Я.)(ОПЦИОНН.) Y [РЕМ. КОМПЛЕКТЫ]

G1

206-63-X7240

BOOMCYLINDER GROUP,L.H

G2

206-63-X7250

BOOMCYLINDER GROUP,R.H

|$3

206-63-07240

CYLNDERASS'Y

1

206-63-54740

CYLINDER

2

206-70-61391

BUSHING

3

07145-00080

SEAL,DUST(KIT)

4

206-63-52520

ROD,PISTON

5

707-76-80010

BUSHING

6

07145-00080

SEAL,DUST(KIT)

7

707-27-14920

HEAD,CYLINDER

8

07179-13114

RING,SNAP

9

195-63-56170

SEAL,DUST(KIT)

10

707-52-90780

BUSHING

11

707-51-10030

PACKING,ROD(KIT)

12

07000-15130

O-RING(KIT)

13

707-35-91420

RING,BACK-UP(KIT)

14

707-51-10630

RING,BUFFER(KIT)

15

01010-81875

BOLT

16

707-41-11840

WASHER

17

707-36-14410

PISTON

18

707-44-14180

RING,PISTON

19

707-39-14820

RING,WEAR

20

707-44-14910

RING

21

707-71-61050

PLUNGER

22

07000-15090

O-RING(KIT)

23

07001-05090

RING,BACK-UP(KIT)

24

01310-01216

SCREW

25

707-71-32890

COLLAR

26

707-35-91420

RING,BACK-UP(KIT)

27

07000-15130

O-RING(KIT)

28

206-63-52570

TUBE,L.H

28

206-63-52670

TUBE,R.H

29

206-63-54580

TUBE,L.H

29

206-63-54680

TUBE,R.H

30

01435-01055

BOLT

31

01435-01040

BOLT

32

07000-13030

O-RING(KIT)

33

206-63-54590

BRACKET,L.H

33

206-63-54690

BRACKET,R.H

34

707-88-87680

BAND

35

01010-81035

BOLT

36

01643-51032

WASHER

37

07283-22738

CLIP

38

01599-01011

NUT

39

01643-31032

WASHER
