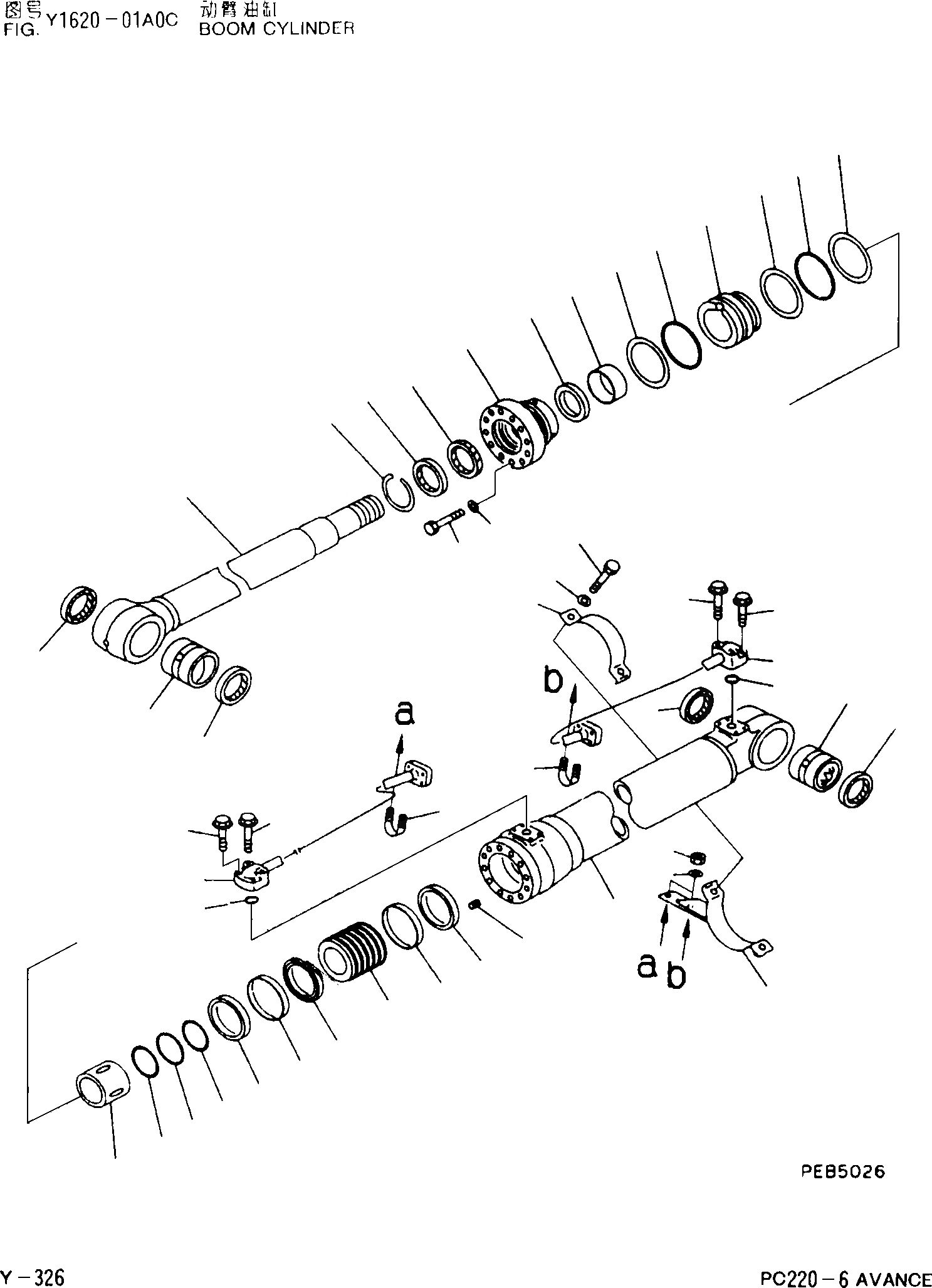

Запчасти Komatsu PC220-6 ЦИЛИНДР СТРЕЛЫ Y [РЕМ. КОМПЛЕКТЫ]

G1

206-63-X4200

BOOMCYLINDER GROUP,L.H

G2

206-63-X4210

BOOMCYLINDER GROUP,R.H

|$3

206-63-04100

CYLNDERASS'Y

1

206-63-54740

CYLINDER

2

206-70-55280

BUSHING

3

07145-00080

SEAL,DUST(KIT)

4

206-63-54720

ROD,PISTON

5

707-76-80010

BUSHING

6

07145-00080

SEAL,DUST(KIT)

7

707-27-12921

HEAD,CYLINDER

8

07179-13104

RING,SNAP

9

195-63-94170

SEAL,DUST(KIT)

10

707-52-90680

BUSHING

11

707-51-90030

PACKING,ROD(KIT)

12

07000-15120

O-RING(KIT)

13

707-35-91320

RING,BACK-UP(KIT)

14

707-51-90640

RING,BUFFER(KIT)

15

01010-81670

BOLT

16

01643-51645

WASHER

17

707-36-13471

PISTON

18

707-44-13180

RING,PISTON(KIT)

19

707-39-13110

RING,WEAR(KIT)

20

707-44-12911

RING

21

707-71-60930

PLUNGER

22

07000-15080

O-RING(KIT)

23

707-35-90940

RING,BACK-UP(KIT)

24

01310-01216

SCREW

25

707-71-32680

COLLAR

26

707-35-91320

RING,BACK-UP(KIT)

27

07000-15120

O-RING(KIT)

28

206-63-54770

TUBE,L.H

28

206-63-54870

TUBE,R.H

29

206-62-64270

TUBE,L.H

29

206-62-64290

TUBE,R.H

30

01435-01055

BOLT

31

01435-01040

BOLT

32

07000-13030

O-RING(KIT)

33

206-63-54192

BRACKET,L.H

33

206-63-54292

BRACKET,R.H

34

707-88-95081

BAND

35

01010-81035

BOLT

36

01643-51032

WASHER

37

07283-22738

CLIP

38

01599-01011

NUT

39

01643-31032

WASHER
