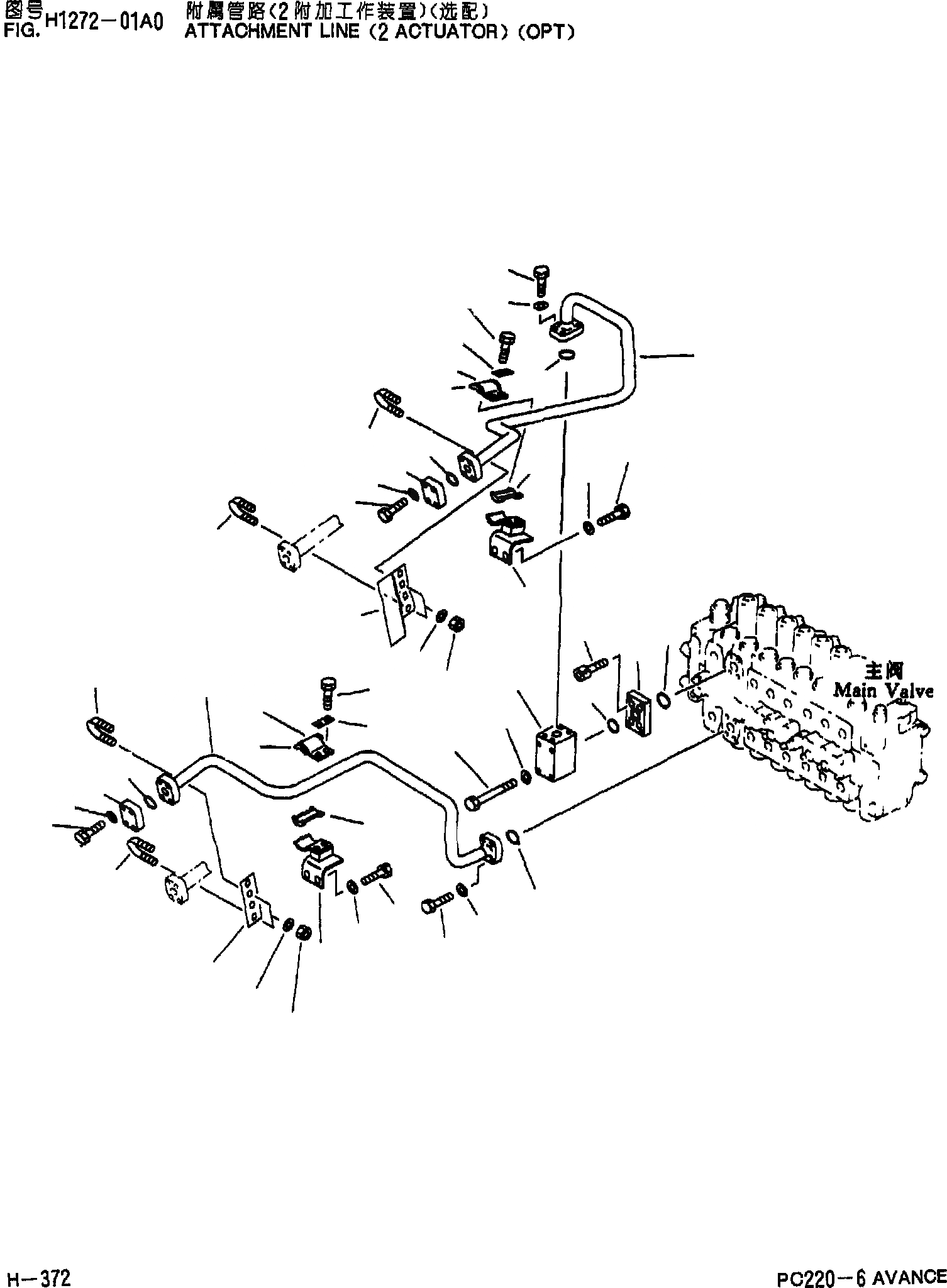

Запчасти Komatsu PC220-6 НАВЕСНОЕ ОБОРУД-Е(АКТУАТОР)(ОПЦИОНН.) H [ГИДРАВЛИКА]

1

20Y-62-25110

BLOCK

2

20Y-62-25120

PLATE

3

21T-09-11450

O-RING

4

21T-06-11470

O-RING

5

01252-41025

BOLT

6

205-62-74740

BOLT

7

01643-51032

WASHER

8

20Y-970-6112

TUBE

8

20Y-970-6111

TUBE

9

01010-51040

BOLT

10

01643-51032

WASHER

11

21T-09-11460

O-RING

12

20Y-970-6160

BRACKET

13

20Y-62-13760

SEAT

14

01010-51230

BOLT

15

01643-31232

WASHER

16

20Y-970-6122

TUBE

16

20Y-970-6121

TUBE

17

01010-51040

BOLT

18

01643-51032

WASHER

19

21T-09-11460

O-RING

20

20Y-970-6152

BRACKET

20

20Y-970-6151

BRACKET

21

20Y-62-13760

SEAT

22

01010-51230

BOLT

23

01643-31232

WASHER

|$27

20Y-62-13220

CLIP

24

20Y-62-13180

CLIP

25

20Y-62-13760

SEAT

26

20Y-62-13450

PLATE

27

01010-51230

BOLT

28

20Y-970-6130

BRACKET

29

07283-22738

CLIP

29

07283-22738

CLIP

30

07283-23442

CLIP

30

07283-23442

CLIP

31

01599-01011

NUT

31

01599-01011

NUT

32

01643-31032

WASHER

32

01643-31032

WASHER

33

20Y-970-6140

PLATE

34

07283-22738

CLIP

34

07283-22738

CLIP

35

07283-23442

CLIP

35

07283-23442

CLIP

36

01599-01011

NUT

36

01599-01011

NUT

37

01643-31032

WASHER

37

01643-31032

WASHER

38

207-62-56190

FLANGE

39

0700-13032

O-RING

40

07372-21040

BOLT

41

01643-51032

WASHER
