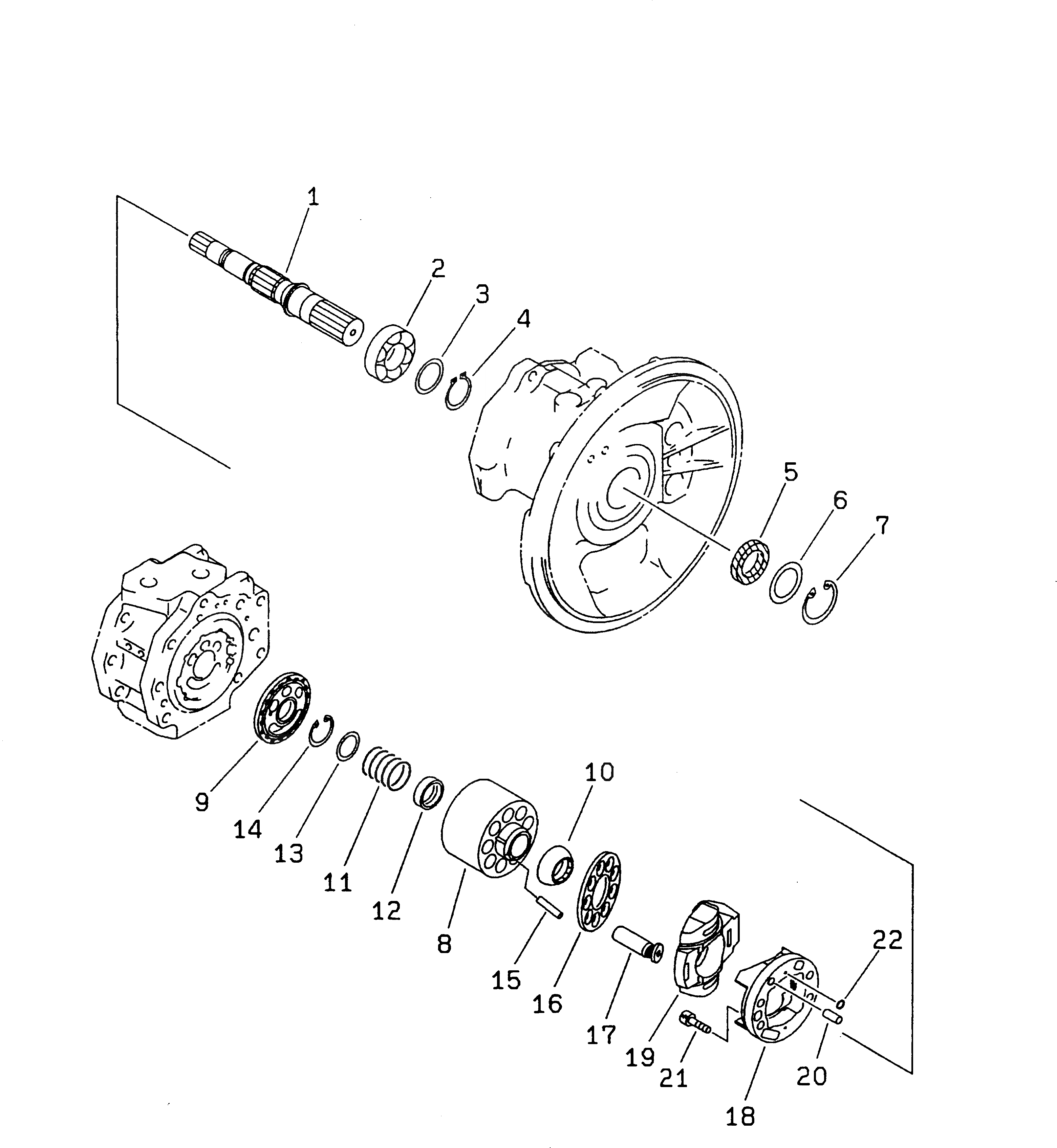

Запчасти Komatsu PC220-6 ОСНОВН. НАСОС (/9)(№-7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2L-00161

PUMP ASS'Y

|1

708-2L-00066

PUMP ASS'Y

|1

708-2L-00064

PUMP ASS'Y

|1

708-2L-00063

PUMP ASS'Y

|1

708-2L-00062

PUMP ASS'Y

|1

708-2L-01053

PUMP SUB ASS'Y

|1

708-2L-01052

PUMP SUB ASS'Y

1

708-2L-32110

SHAFT,FRONT

|1

708-2L-22112

SHAFT,FRONT

2

708-2L-32150

BEARING

3

708-2E-05040

WASHER KIT

|3

WASHER¤ 3.1MM

|3

WASHER¤ 3.0MM

|3

WASHER¤ 2.9MM

|3

WASHER¤ 2.8MM

4

708-25-12790

RING,SNAP

5

708-25-52861

SEAL,OIL

6

708-2L-22160

SPACER

7

04065-06825

RING,SNAP

|8

708-2L-04141

BLOCK ASS'Y,FRONT

|8

708-2L-04040

BLOCK ASS'Y,FRONT

8

BLOCK,CYLINDER

|8

BLOCK,CYLINDER

9

PLATE,VALVE

|9

PLATE,VALVE

10

708-2L-23351

GUIDE,RETAINER

11

708-2L-33160

SPRING

|11

708-2L-23151

SPRING

12

708-2L-23131

SEAT

13

708-7L-13140

SEAT

14

04065-04818

RING,SNAP

15

708-2L-23360

PIN

16

708-2L-33340

RETAINER,SHOE

|16

708-2L-23340

RETAINER,SHOE

17

708-2L-33310

PISTON SUB ASS'Y

|17

708-2L-23313

PISTON SUB ASS'Y

|18

708-2L-04061

CRADLE ASS'Y

18

CRADLE

19

CAM,ROCKER

20

04020-01228

PIN

21

01252-61230

BOLT

22

07000-B1009

O-RING
