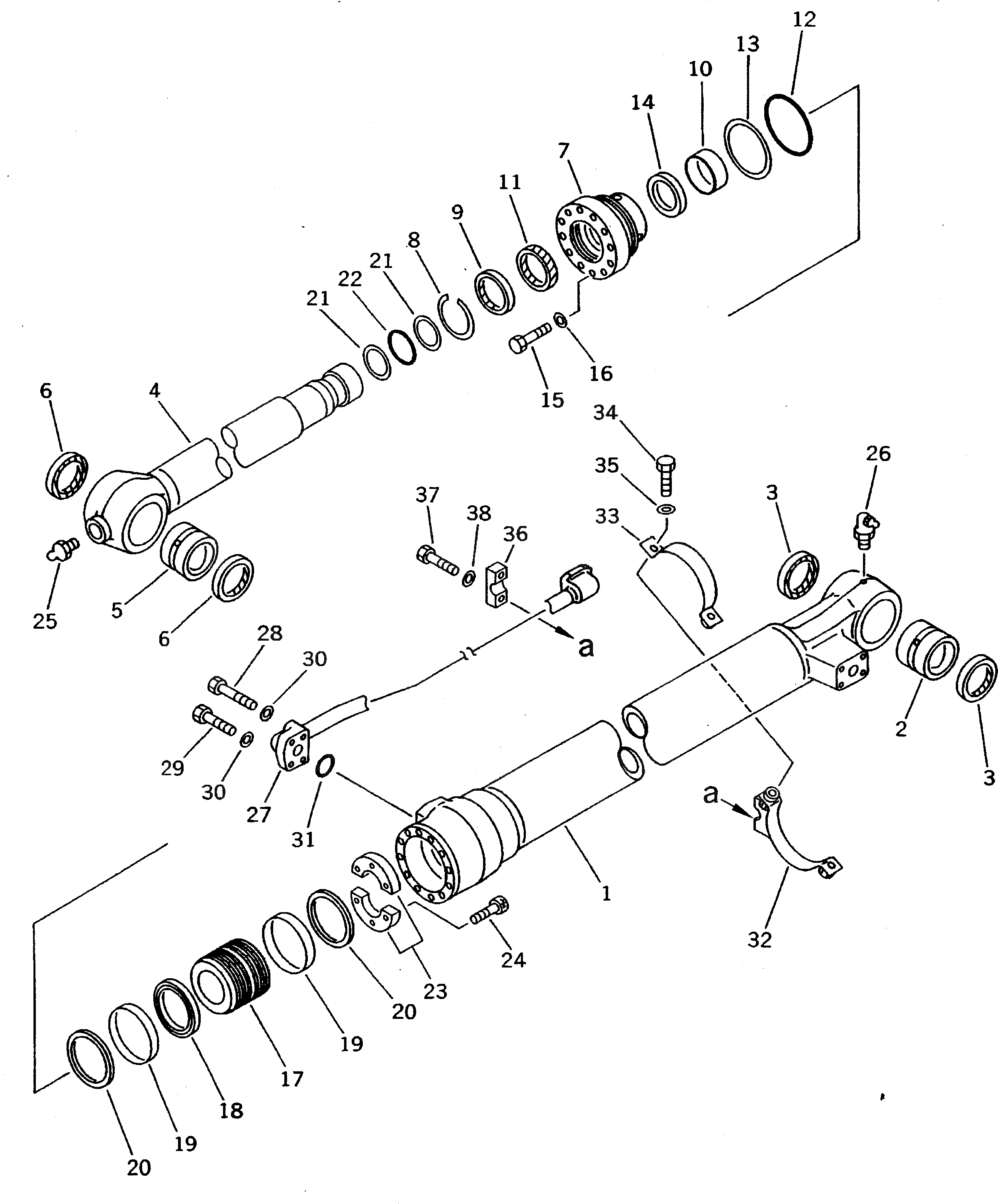

Запчасти Komatsu PC220-6 ЦИЛИНДР КОВША (ДЛЯ .M РУКОЯТЬ)(№7-8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

206-63-X2140

BUCKET CYLINDER G.

|$4

206-63-02140

CYLINDER ASS'Y

1

206-63-73540

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST (KIT)

4

206-63-73520

ROD,PISTON

5

707-76-80020

BUSHING

6

205-70-62140

SEAL,DUST (KIT)

7

707-27-14620

HEAD,CYLINDER

8

07179-13114

RING,SNAP

9

176-63-56170

SEAL,DUST (KIT)

10

707-52-90750

BUSHING

11

707-51-10030

PACKING,ROD (KIT)

12

07000-15135

O-RING (KIT)

13

07001-05135

RING,BACK-UP (KIT)

14

707-51-10630

RING,BUFFER (KIT)

15

01010-81875

BOLT

16

707-41-11840

WASHER

17

707-36-14340

PISTON

18

707-44-14180

RING,PISTON (KIT)

19

707-39-14820

RING,WEAR (KIT)

20

707-44-14910

RING

21

707-35-52920

RING,BACK-UP (KIT)

22

07000-12080

O-RING (KIT)

23

707-40-14870

SPACER

24

01252-31250

BOLT

25

07020-00000

FITTING,GREASE

26

07020-00900

FITTING,GREASE

27

206-63-73570

TUBE

28

07372-21060

BOLT

29

07372-21045

BOLT

30

01643-51032

WASHER

31

07000-13030

O-RING (KIT)

32

707-88-87100

BRACKET

33

707-88-87160

BAND

34

01010-51035

BOLT

35

01643-51032

WASHER

36

707-88-13590

CLAMP

37

01010-51040

BOLT

38

01643-31032

WASHER
