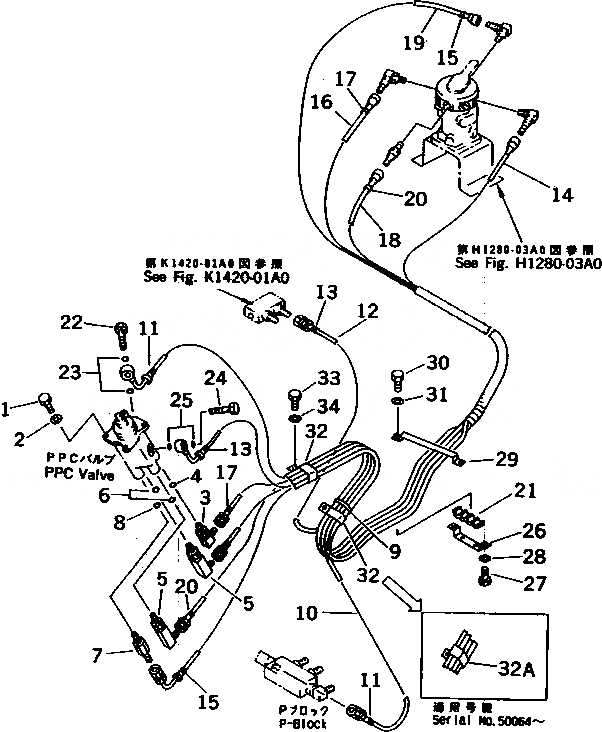

Запчасти Komatsu PC220-6 РАБОЧАЯ ЛИНИЯ PPC (КЛАПАН PPCAND ПАТРУБКИ ЛЕВОЙ СТОЙКИ) (MULTI PATTERN)(№-99) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

01010-50820

BOLT

2

01643-30823

WASHER

3

207-62-33920

ELBOW

4

07002-01423

O-RING

5

20Y-970-1741

ELBOW

6

07002-01423

O-RING

7

20Y-62-22260

NIPPLE

8

07002-01423

O-RING

9

08034-00536

BAND

10

20Y-62-23250

HOSE

11

20Y-62-22790

BAND, RED

12

20Y-62-23260

HOSE

13

20Y-62-22820

BAND, BLUE

14

20Y-62-23730

HOSE

15

20Y-62-22810

BAND, YELLOW

16

20Y-62-23750

HOSE, 1780MM

17

20Y-62-22820

BAND, BLUE

18

20Y-62-23740

HOSE, 1730MM

19

20Y-62-23760

HOSE

20

20Y-62-22790

BAND, RED

21

20Y-62-22170

CLAMP

22

20Y-62-18910

PLUG

23

07000-02018

O-RING

24

20Y-62-18890

BOLT, JOINT

25

07000-02015

O-RING

26

20Y-62-22180

CLAMP

27

01010-51016

BOLT

28

01643-31032

WASHER

29

20Y-62-22291

CLAMP

30

01010-51230

BOLT

31

01643-31232

WASHER

32

20Y-43-21740

CLIP

32

20Y-43-21740

CLIP

32A

20Y-62-23130

CLIP

33

01010-50816

BOLT

34

01643-30823

WASHER
