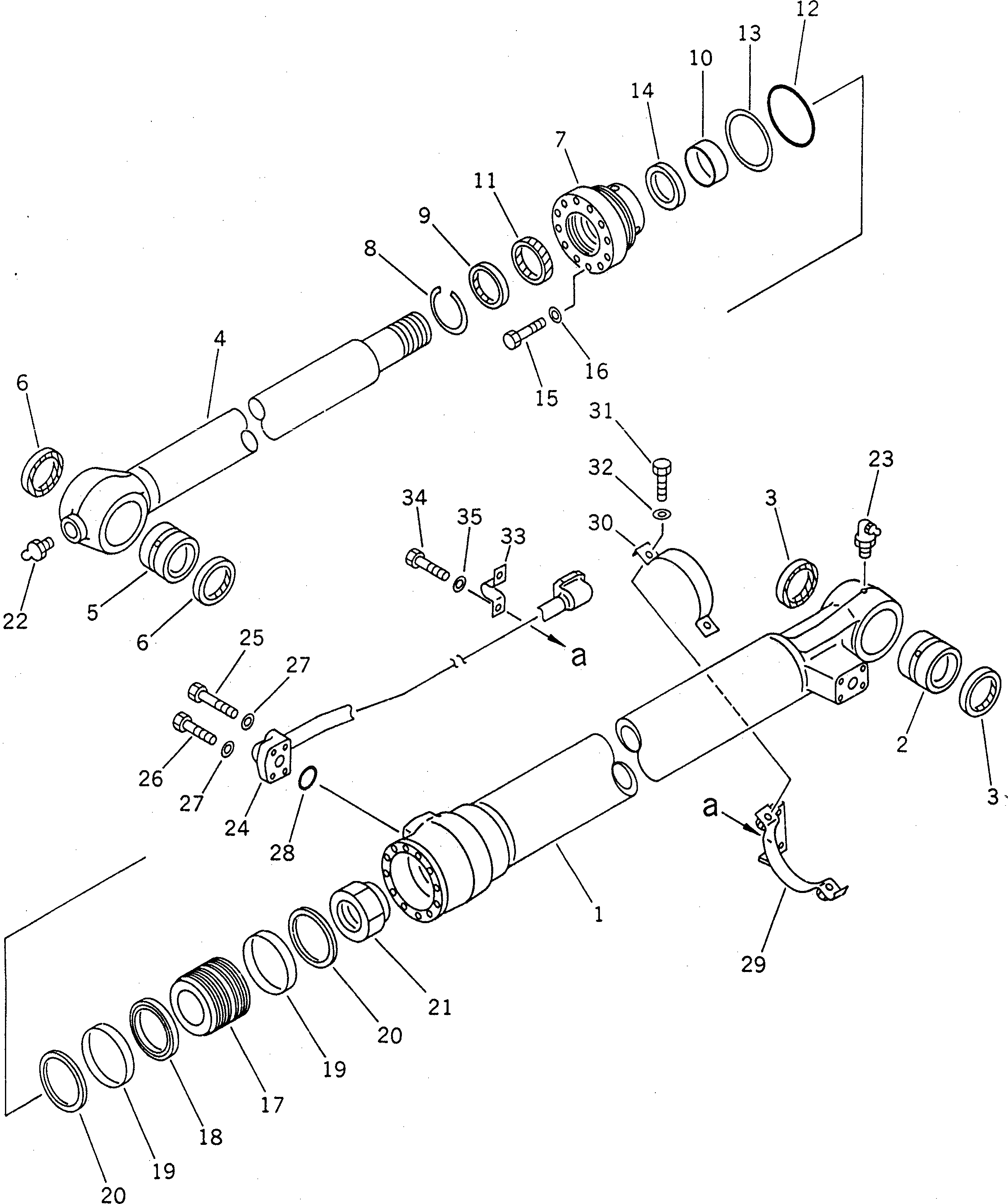

Запчасти Komatsu PC220-5C ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

206-63-X2130

BUCKET CYLINDER G.

|$$2

====================

|1

206-63-02130

CYLINDER ASS'Y

1

206-63-73340

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST (KIT)

4

206-63-73320

ROD,PISTON

5

707-76-80020

BUSHING

6

205-70-62140

SEAL,DUST (KIT)

7

707-27-13620

HEAD,CYLINDER

8

07179-13104

RING,SNAP

9

195-63-94170

SEAL,DUST (KIT)

10

707-52-90650

BUSHING

11

707-51-90030

PACKING,ROD (KIT)

12

07000-15125

O-RING (KIT)

13

07001-05125

RING,BACK-UP (KIT)

14

707-51-90630

RING,BUFFER (KIT)

15

01010-81670

BOLT

16

01643-51645

WASHER

17

707-36-13411

PISTON

18

707-44-13180

RING,PISTON (KIT)

19

707-39-13110

RING,WEAR (KIT)

20

707-44-13911

RING

21

07165-16870

NUT

22

07020-00000

FITTING,GREASE

23

07020-00900

FITTING,GREASE

24

206-63-73370

TUBE

25

07372-21060

BOLT

26

07372-21045

BOLT

27

01643-51032

WASHER

28

07000-13030

O-RING (KIT)

29

707-88-95980

BRACKET

30

707-88-96100

BAND

31

01010-51035

BOLT

32

01643-51032

WASHER

33

07282-02793

CLAMP

34

01010-51020

BOLT

35

01643-31032

WASHER

|$$39

====================
