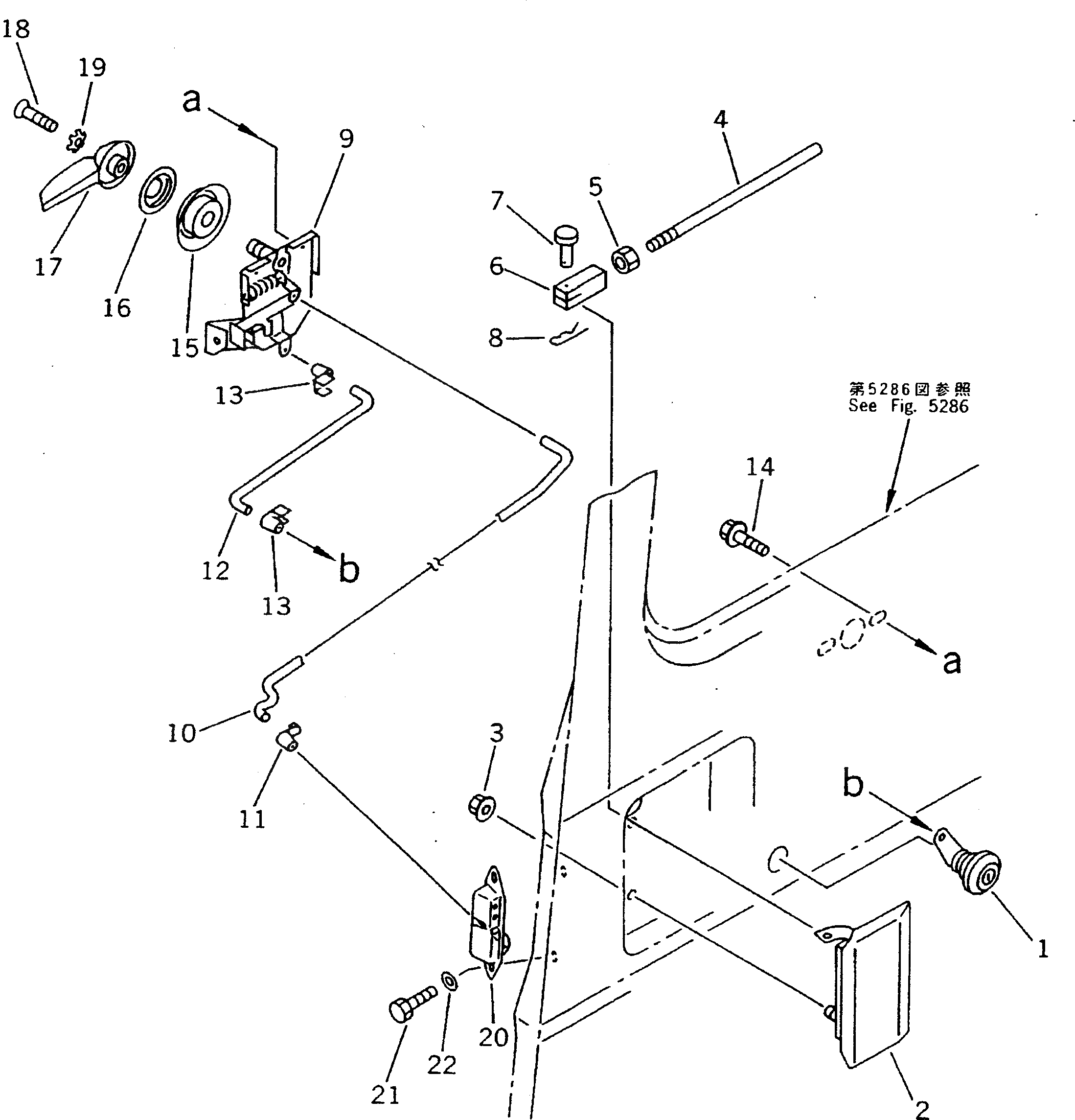

Запчасти Komatsu PC220-5C КАБИНА (7/7) (ДВЕРЬ /) ЧАСТИ КОРПУСА

G-1

20Y-54-X1742

OPERATOR'S CAB GROUP

G-1

20Y-54-X1741

OPERATOR'S CAB GROUP

|$$3

====================

|1

20Y-54-00101

OPERATOR'S CAB ASS'Y

|1

20Y-54-00100

OPERATOR'S CAB ASS'Y

|$$6

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5281 TO 5287.

|1

20Y-54-00024

DOOR ASS'Y

|$$8

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5286 AND 5287.

1

205-54-71642

LOCK ASS'Y

2

205-54-72102

HANDLE ASS'Y

3

01584-00605

NUT

4

20Y-54-11710

ROD

5

01584-00605

NUT

6

04211-20634

YOKE

7

04205-10620

PIN

8

04052-00633

PIN

9

20Y-54-13861

REMOTE CONTROL A.

10

20Y-54-11720

ROD

11

205-54-71840

SNAP

12

20Y-54-11730

ROD

13

205-54-71830

SNAP

14

01435-00616

BOLT

15

566-54-24260

BASE

16

566-54-24270

ESCUTCHEON

17

20Y-54-13390

HANDLE

18

01225-70510

SCREW

19

205-54-71880

WASHER,LOCK

20

20Y-54-14520

LOCK ASS'Y

21

01010-50616

BOLT

22

01643-30623

WASHER

|$$31

====================
