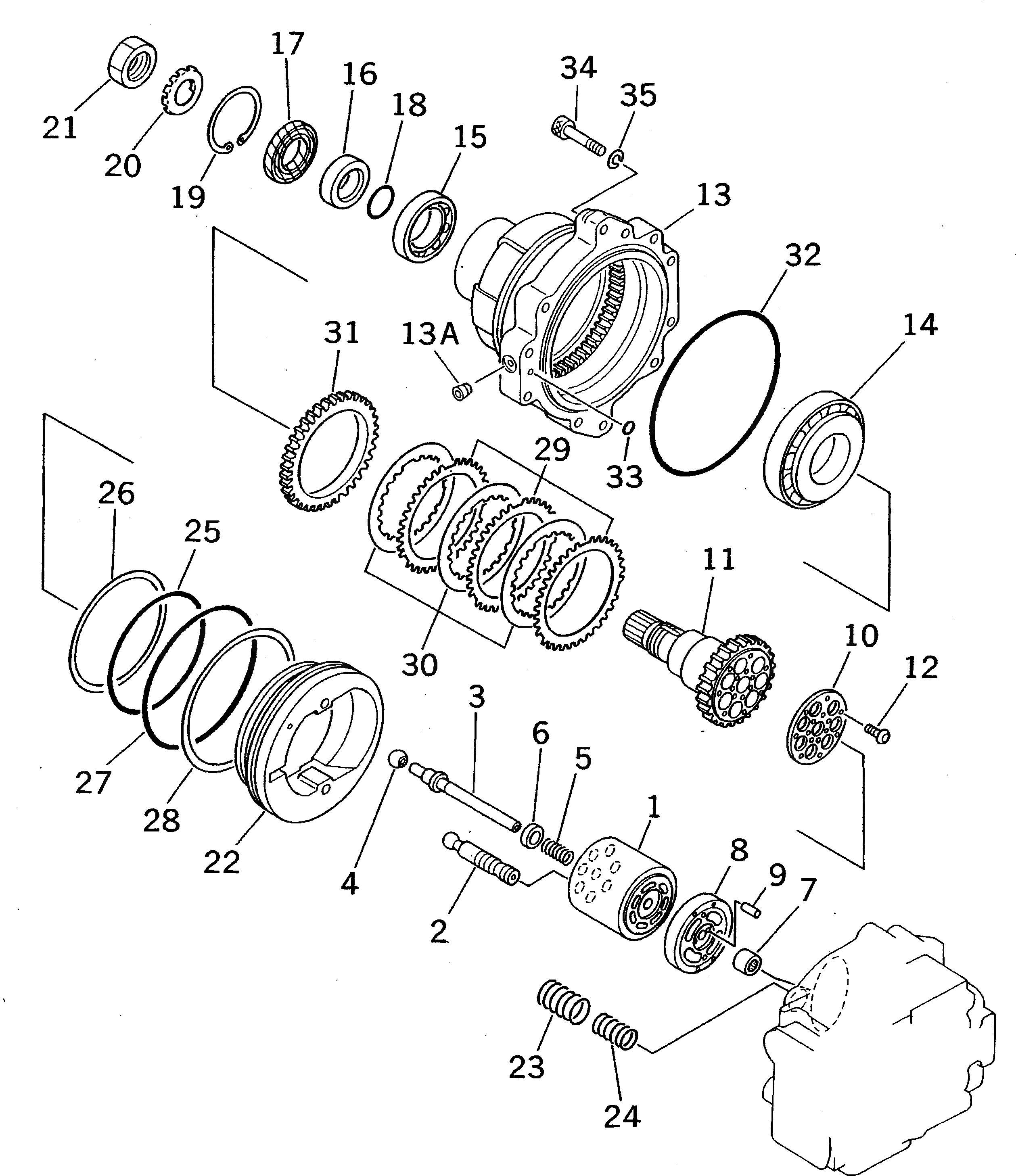

Запчасти Komatsu PC220-5C МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

G-1

206-27-X1111

FINAL DRIVE GROUP

|$2

706-75-10402

TRAVEL MOTOR ASS'Y

1

706-75-41091

BLOCK,CYLINDER

2

706-75-41163

PISTON SUB ASS'Y

3

706-75-42080

SHAFT,CENTER

4

706-75-41220

BALL,CENTER

5

706-75-41110

SPRING

6

706-75-41130

RING,CENTER

7

706-75-40010

BEARING

8

706-75-42840

PLATE,VALVE

9

04020-00820

PIN,DOWEL

10

706-75-42260

RETAINER

11

706-75-42962

SHAFT,DRIVE

11

706-75-42961

SHAFT,DRIVE

12

706-75-42270

SCREW

|$17

706-75-00070

BRAKE CASE SUB ASS'Y

13

CASE,BRAKE

13A

PLUG

14

706-75-42880

BEARING

15

706-76-40890

BEARING

16

706-75-42910

RING

17

706-76-41931

SEAL,OIL

18

07000-03040

O-RING

19

04065-09030

RING,SNAP

20

706-75-40940

WASHER,LOCK

21

01530-03912

NUT

22

706-75-91382

PISTON,BRAKE

23

706-75-91420

SPRING

24

706-75-91410

SPRING

25

07000-15155

O-RING

26

07001-05155

RING,BACK-UP

27

07000-15170

O-RING

28

07001-05170

RING,BACK-UP

29

706-75-91340

PLATE

30

706-75-91350

DISC

31

706-75-91330

PLATE

32

07000-05195

O-RING

33

07000-12010

O-RING

34

706-75-40360

BOLT

35

01602-21442

WASHER,SPRING
