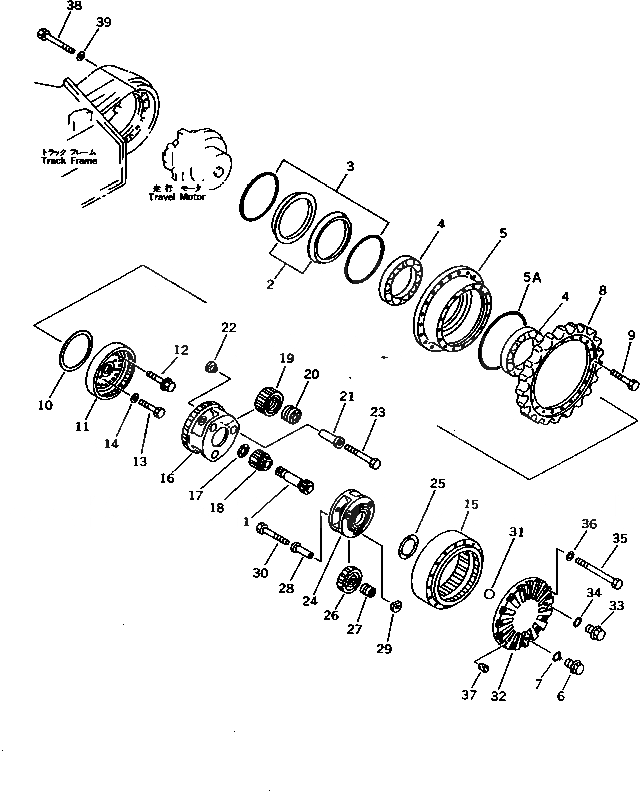

Запчасти Komatsu PC220-5 КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА(№-) ХОДОВАЯ
№
Артикул
Название
Примечание
Количество
|1
206-27-00038
FINAL DRIVE ASS'Y
|1
206-27-00037
FINAL DRIVE ASS'Y
|1
206-27-00035
FINAL DRIVE ASS'Y
|1
206-27-00034
FINAL DRIVE ASS'Y
1
20Y-27-13130
SHAFT
|2
150-27-00029
FLOATING SEAL ASS'Y
|2
150-27-00028
FLOATING SEAL ASS'Y
2
150-27-00263
SEAL RING ASS'Y
|2
150-27-00262
SEAL RING ASS'Y
|2
RING
|2
RING
3
144-873-0310
O-RING ASS'Y
|3
O-RING
4
20Y-27-11570
BEARING
5
20Y-27-13120
HUB
5A
20Y-27-13290
O-RING
6
07044-12412
PLUG
7
07002-02434
O-RING
8
20Y-27-11581
SPROCKET
9
20Y-27-11560
BOLT
10
20Y-27-00031
SPACER KIT
|10
SPACER¤ 4.70MM
|10
SPACER¤ 4.75MM
|10
SPACER¤ 4.80MM
|10
SPACER¤ 4.85MM
|10
SPACER¤ 4.90MM
|10
SPACER¤ 4.95MM
|10
SPACER¤ 5.00MM
|10
SPACER¤ 5.05MM
|10
SPACER¤ 5.10MM
11
20Y-27-13270
RETAINER
12
20Y-27-11180
BOLT
13
01010-51645
BOLT
14
01643-31645
WASHER
15
20Y-27-13190
GEAR
16
20Y-27-13230
CARRIER
17
20Y-27-13310
WASHER,THRUST
18
20Y-27-13210
GEAR
19
20Y-27-13220
GEAR
20
20Y-27-13260
BEARING
21
20Y-27-13240
PIN
22
20Y-27-11240
HOLDER
23
01011-51200
BOLT
24
20Y-27-13150
CARRIER
25
20Y-27-11250
SPACER
26
20Y-27-13140
GEAR
27
20Y-27-13180
BEARING
28
20Y-27-13160
PIN
29
20Y-27-13170
HOLDER
30
01010-51055
BOLT
31
04260-01905
BALL
32
20Y-27-13110
COVER
33
07044-12412
PLUG
34
07002-02434
O-RING
35
20Y-27-13281
BOLT
|35
20Y-27-13280
BOLT
36
01643-31645
WASHER
37
07049-01215
PLUG
38
01010-51670
BOLT
39
01643-31645
WASHER
Выбрано товаров: 60
