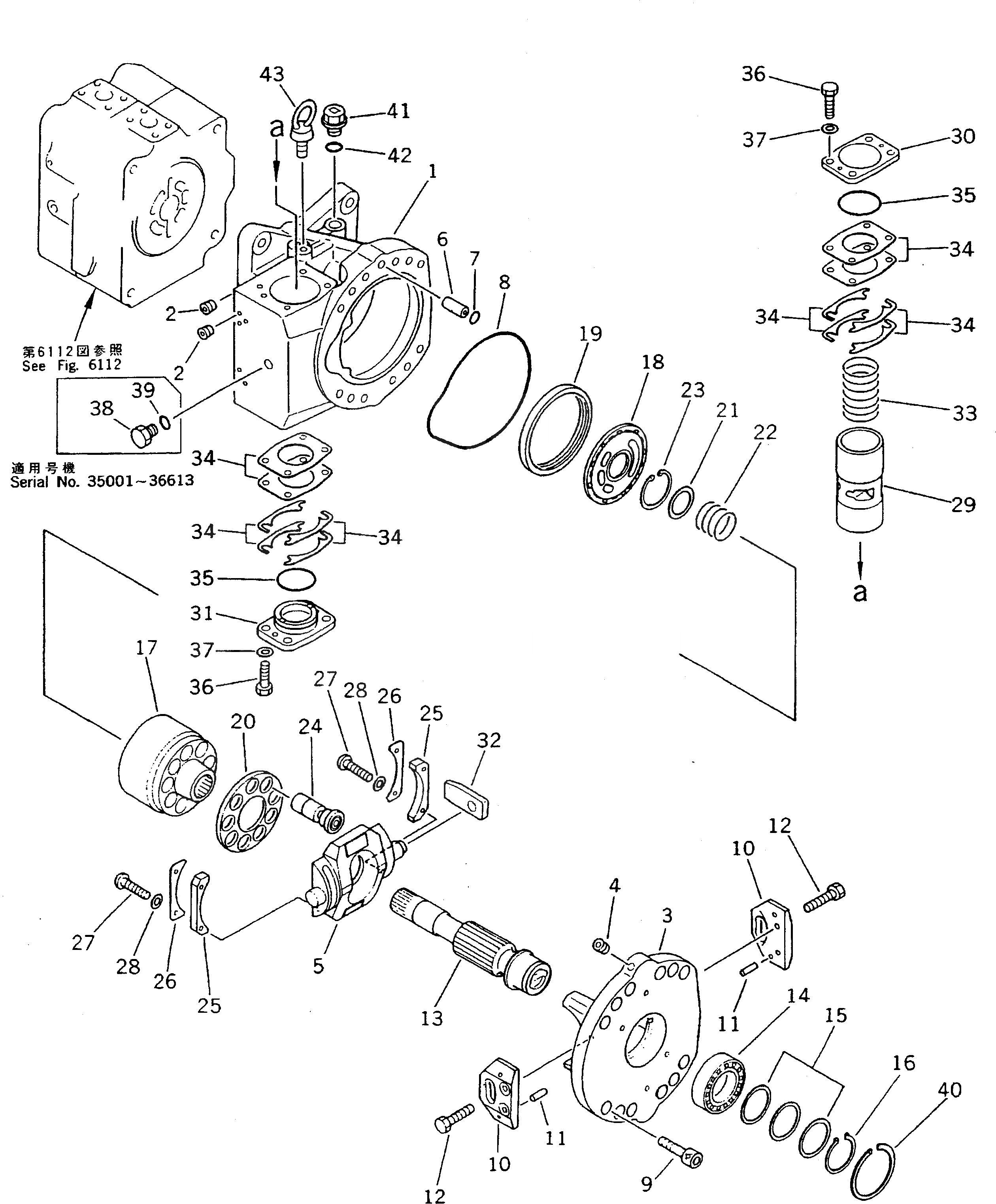

Запчасти Komatsu PC220-5 ГИДР. НАСОС. (/) (НАСОС SUB В СБОРЕ¤ ЗАДН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
G-1
206-60-X1261
PUMP GROUP
|1
708-25-04061
PUMP ASS'Y
|1
708-25-04022
PUMP ASS'Y
|1
708-25-04021
PUMP ASS'Y
|1
708-25-04151
PUMP SUB ASS'Y
|1
708-25-04112
PUMP SUB ASS'Y
|1
708-25-04111
PUMP SUB ASS'Y
|1
708-25-00100
CASE ASS'Y,REAR
1
CASE,REAR
2
PLUG
|3
708-25-00041
CRADLE ASS'Y,REAR
|3
708-25-00490
CRADLE SUB ASS'Y,REAR
3
CRADLE,REAR
4
PLUG
5
708-25-13411
CAM,ROCKER
6
708-25-12330
JOINT
7
07000-22015
O-RING
|7
708-25-13930
O-RING
8
708-25-12340
O-RING
9
708-25-12350
BOLT
10
708-25-12360
PLATE
11
04020-00820
PIN,DOWEL
12
01010-30816
BOLT
13
708-25-32720
SHAFT
14
708-25-12731
BEARING
15
708-25-05010
WASHER KIT
|15
WASHER¤ 2.0MM
|15
WASHER¤ 2.1MM
|15
WASHER¤ 2.2MM
16
708-25-12790
RING,SNAP
|17
708-25-00411
CYLINDER BLOCK ASS'Y,CYLINDER
|17
708-25-00410
BLOCK ASS'Y,CYLINDER
17
708-25-13151
BLOCK,CYLINDER
18
708-25-13621
PLATE,VALVE
|18
708-25-13620
PLATE,VALVE
19
708-25-13630
RING
20
708-25-13422
RETAINER,SHOE
21
708-25-13120
WASHER
22
708-25-13130
SPRING
23
708-25-13140
RING,SNAP
24
708-25-13312
PISTON SUB ASS'Y
25
708-25-05061
SPACER KIT
|25
SPACER¤ 11.540MM
|25
SPACER¤ 11.560MM
|25
SPACER¤ 11.575MM
26
708-25-13441
RETAINER
27
708-25-13470
SCREW
28
01643-30623
WASHER
29
708-25-14112
PISTON
30
708-25-14140
CAP
31
708-25-14150
CAP
32
708-25-14121
SLIDER
33
708-25-14130
SPRING
34
708-25-05050
SHIM KIT
|34
SHIM¤ 0.1MM
|34
SHIM¤ 0.2MM
|34
SHIM¤ 0.5MM
|34
SHIM¤ 0.1MM
35
07000-02065
O-RING
36
01016-31035
BOLT
37
01643-31032
WASHER
38
720-68-19870
PLUG
39
07002-01223
O-RING
40
708-25-12970
RING,SNAP
41
07044-02412
PLUG
42
07002-02434
O-RING
43
04530-01018
BOLT,EYE
Выбрано товаров: 67
