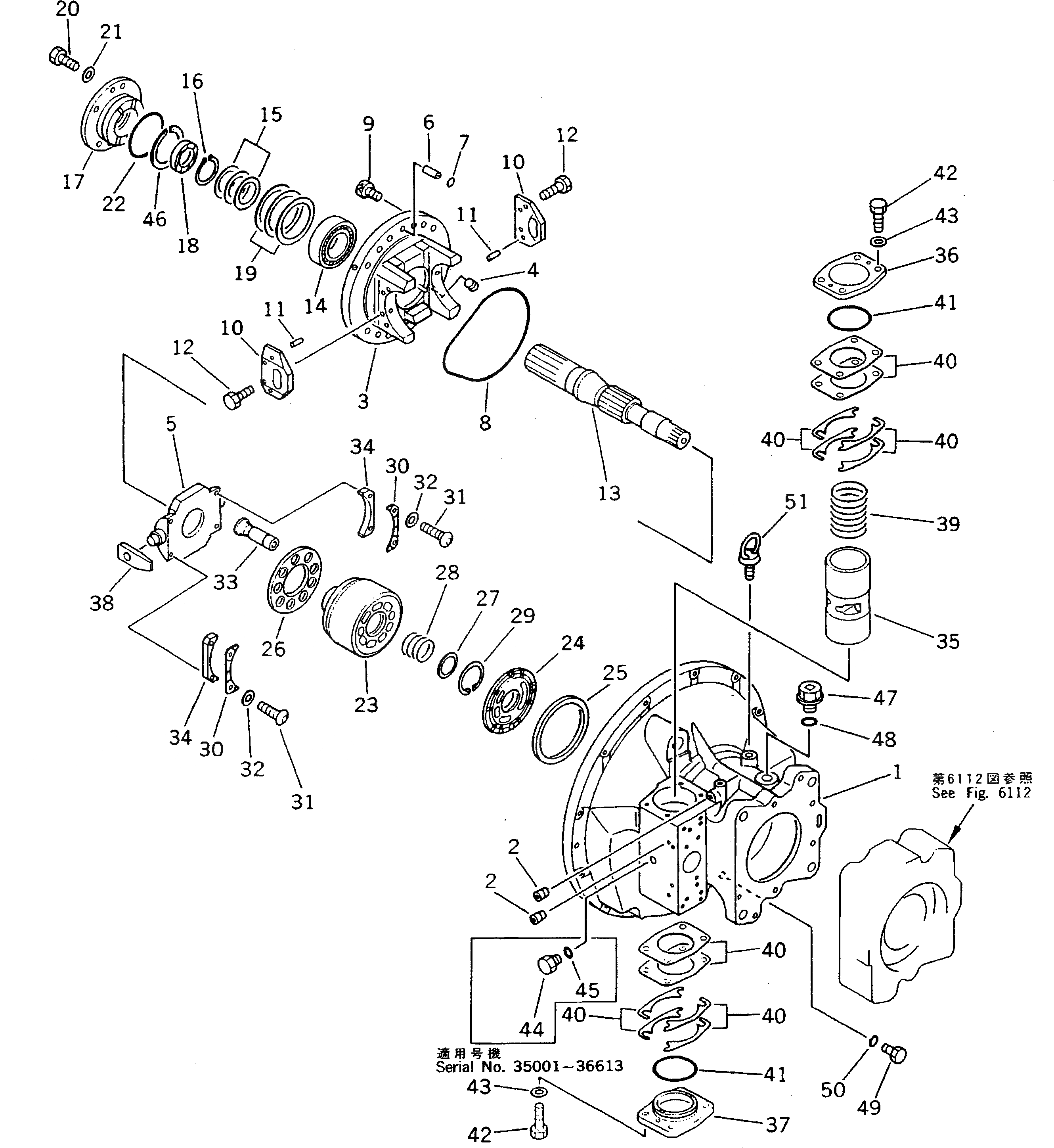

Запчасти Komatsu PC220-5 ГИДР. НАСОС. (/) (НАСОС SUB В СБОРЕ¤ ПЕРЕДН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
G-1
206-60-X1261
PUMP GROUP
|1
708-25-04061
PUMP ASS'Y
|1
708-25-04022
PUMP ASS'Y
|1
708-25-04021
PUMP ASS'Y
|1
708-25-04151
PUMP SUB ASS'Y
|1
708-25-04112
PUMP SUB ASS'Y
|1
708-25-04111
PUMP SUB ASS'Y
|1
708-25-00630
CASE ASS'Y,FRONT
|1
708-25-00471
CASE ASS'Y,FRONT
1
CASE,FRONT
|1
CASE,FRONT
2
PLUG
|3
708-25-00031
CRADLE ASS'Y,FRONT
|3
708-25-00480
CRADLE SUB ASS'Y,FRONT
3
CRADLE,FRONT
4
PLUG
5
708-25-13411
CAM,ROCKER
6
708-25-12330
JOINT
7
07000-22015
O-RING
|7
708-25-13930
O-RING
8
708-25-12340
O-RING
9
708-25-12390
BOLT
10
708-25-12360
PLATE
11
04020-00820
PIN,DOWEL
12
01010-30816
BOLT
13
708-25-12711
SHAFT
14
708-25-12731
BEARING
15
708-25-05010
WASHER KIT
|15
WASHER¤ 2.0MM
|15
WASHER¤ 2.1MM
|15
WASHER¤ 2.2MM
16
708-25-12790
RING,SNAP
17
708-25-12812
HOUSING
18
708-25-52860
SEAL,OIL
19
708-25-05130
SHIM KIT
|19
SHIM¤ 0.1MM
|19
SHIM¤ 0.2MM
20
01010-30820
BOLT
21
01643-30823
WASHER
22
07000-02080
O-RING
|23
708-25-00401
CYLINDER BLOCK ASS'Y,CYLINDER
|23
708-25-00400
BLOCK ASS'Y,CYLINDER
23
708-25-13151
BLOCK,CYLINDER
24
708-25-13611
PLATE,VALVE
|24
708-25-13610
PLATE,VALVE
25
708-25-13630
RING
26
708-25-13422
RETAINER,SHOE
27
708-25-13120
WASHER
28
708-25-13130
SPRING
29
708-25-13140
RING,SNAP
30
708-25-13441
RETAINER
31
708-25-13470
SCREW
32
01643-30623
WASHER
33
708-25-13312
PISTON SUB ASS'Y
34
708-25-05061
SPACER KIT
|34
SPACER¤ 11.540MM
|34
SPACER¤ 11.560MM
|34
SPACER¤ 11.575MM
35
708-25-14211
PISTON
36
708-25-14140
CAP
37
708-25-14150
CAP
38
708-25-14121
SLIDER
39
708-25-14130
SPRING
40
708-25-05050
SHIM KIT
|40
SHIM¤ 0.1MM
|40
SHIM¤ 0.1MM
|40
SHIM¤ 0.2MM
|40
SHIM¤ 0.5MM
41
07000-02065
O-RING
42
01016-31035
BOLT
43
01643-31032
WASHER
44
720-68-19870
PLUG
45
07002-01223
O-RING
46
708-25-12970
RING,SNAP
47
07044-02412
PLUG
48
07002-02434
O-RING
49
07040-11209
PLUG
50
07002-01223
O-RING
51
04530-01018
BOLT,EYE
Выбрано товаров: 79
