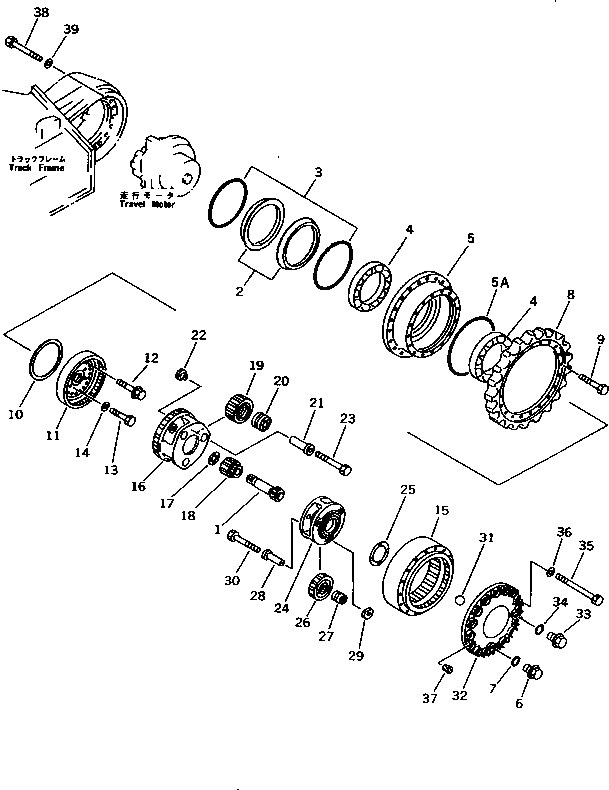

Запчасти Komatsu PC220-5 КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА(№-) ХОДОВАЯ
№
Артикул
Название
Примечание
Количество
|$2
206-27-00033
FINAL DRIVE ASS'Y
|$3
206-27-00032
FINAL DRIVE ASS'Y
|$4
206-27-00031
FINAL DRIVE ASS'Y
|$6
206-27-00030
FINAL DRIVE ASS'Y
1
20Y-27-13130
SHAFT
|$9
150-27-00028
FLOATING SEAL ASS'Y
|$10
150-27-00027
FLOATING SEAL ASS'Y
2
RING
3
O-RING
3
O-RING
4
20Y-27-11570
BEARING
5
20Y-27-13120
HUB
5A
20Y-27-13290
O-RING
6
07044-12412
PLUG
7
07002-02434
O-RING
8
20Y-27-11581
SPROCKET
9
20Y-27-11560
BOLT
10
20Y-27-00031
SPACER KIT
10
20Y-27-00030
SPACER KIT
10
SPACER, 4.70MM
10
SPACER, 4.75MM
10
SPACER, 4.80MM
10
SPACER, 4.85MM
10
SPACER, 4.90MM
10
SPACER, 4.95MM
10
SPACER, 5.00MM
10
SPACER, 5.05MM
10
SPACER, 5.10MM
11
20Y-27-13270
RETAINER
12
20Y-27-11180
BOLT
13
01010-51645
BOLT
13
01010-51235
BOLT
14
01643-31645
WASHER
14
01643-31232
WASHER
15
20Y-27-13190
GEAR
16
20Y-27-13230
CARRIER
17
205-26-71541
WASHER,THRUST
18
20Y-27-13210
GEAR
19
20Y-27-13220
GEAR
20
20Y-27-13260
BEARING
21
20Y-27-13240
PIN
22
20Y-27-11240
HOLDER
23
01011-51200
BOLT
24
20Y-27-13150
CARRIER
25
205-27-71570
SPACER
26
20Y-27-13140
GEAR
27
20Y-27-13180
BEARING
28
20Y-27-13160
PIN
29
20Y-27-13170
HOLDER
30
01010-51055
BOLT
31
04260-01905
BALL
32
20Y-27-13110
COVER
33
07044-12412
PLUG
34
07002-02434
O-RING
35
20Y-27-13280
BOLT
36
01643-31645
WASHER
37
07049-01215
PLUG
38
01010-51670
BOLT
39
01643-31645
WASHER
Выбрано товаров: 59
