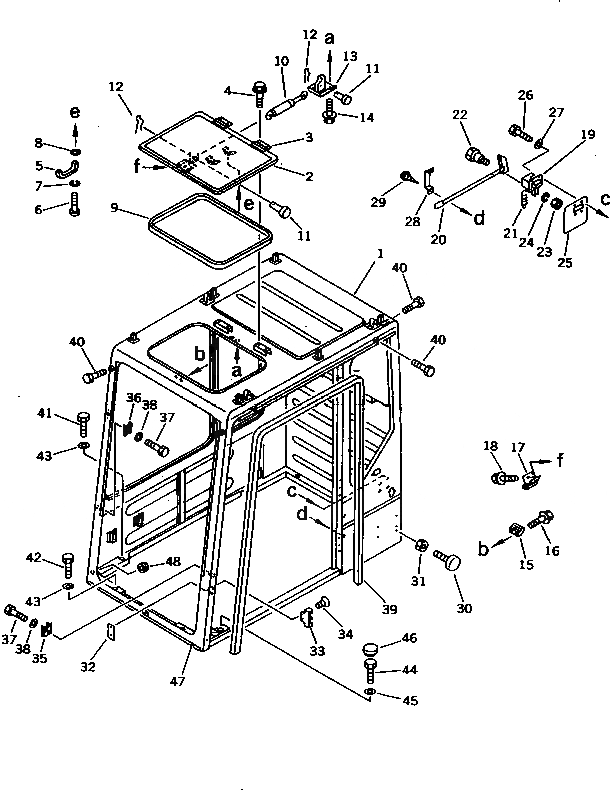

Запчасти Komatsu PC220-5 КАБИНА (/7) (КАБИНА) (ДЛЯ K.D.C.) ЧАСТИ КОРПУСА

G-1

20Y-954-X301

OPERATOR'S CAB GROUP

G-1

20Y-954-X300

OPERATOR'S CAB GROUP

|$3

20Y-54-00131

OPERATOR'S CAB ASS'Y

|$4

20Y-54-00130

OPERATOR'S CAB ASS'Y

1

CAB

1

CAB

2

20Y-54-11262

COVER

3

20Y-54-11282

HINGE

4

01435-00616

BOLT

5

20Y-54-14590

HANDLE

6

01220-40610

SCREW

7

01602-20619

WASHER,SPRING

8

01641-20608

WASHER

9

20Y-54-14630

SEAL

10

205-54-63650

GAS SPRING ASS'Y

11

04205-10825

PIN

12

04052-10833

PIN

13

20Y-54-11383

BRACKET

14

01435-00616

BOLT

15

20Y-54-13492

BRACKET

16

01435-00616

BOLT

17

20Y-54-14321

LOCK ASS'Y

18

20Y-54-14370

BOLT

|$25

20Y-54-11890

LOCK ASS'Y

19

20Y-54-13530

LOCK

20

20Y-54-13540

LEVER

21

20Y-54-13550

SPRING

22

20Y-54-13560

PIN

23

01580-10605

NUT

24

01602-20619

WASHER,SPRING

25

20Y-54-14530

PLATE

26

01010-50825

BOLT

27

01643-30823

WASHER

28

20Y-54-11490

BRACKET

29

01370-00412

SCREW

30

20Y-54-11611

STOPPER

31

01580-11008

NUT

32

20Y-54-11750

SEAT

33

205-54-71731

STRIKER

34

20Y-54-11740

SCREW

35

20Y-54-14480

BRACKET,L.H.

36

20Y-54-14490

BRACKET,R.H.

37

01010-50825

BOLT

38

01643-30823

WASHER

39

205-54-71560

TRIM

40

01010-51016

BOLT

41

01010-51270

BOLT

42

01010-51255

BOLT

43

01643-31232

WASHER

44

01010-51225

BOLT

45

01643-31232

WASHER

46

20Y-54-13480

PLUG

47

20Y-00-11810

PLATE

48

20Y-54-18980

GROMMET
