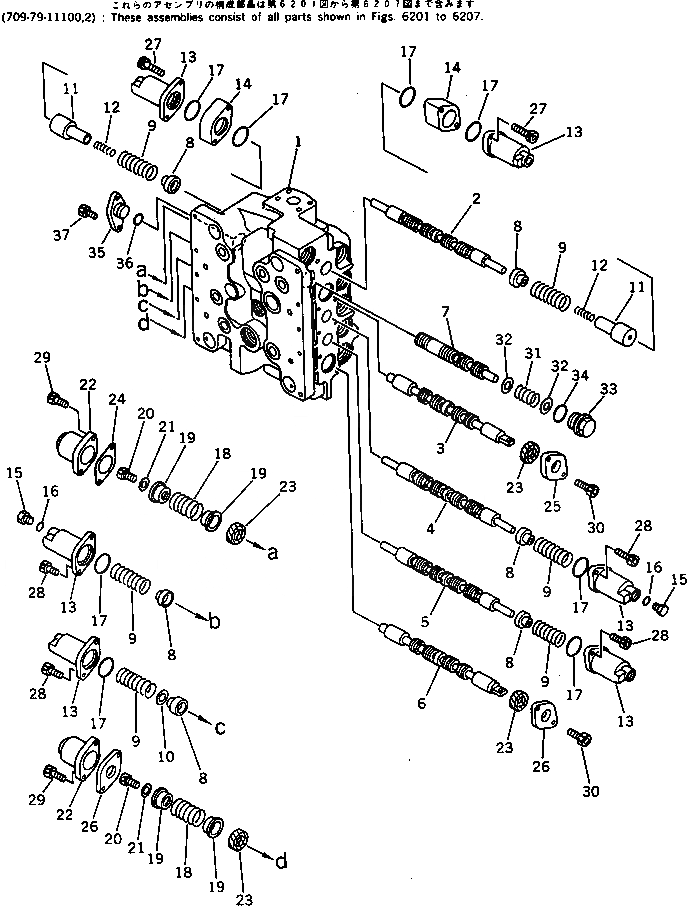

Запчасти Komatsu PC220-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-11102

CONTROL VALVE ASS'Y

|1

709-79-11100

CONTROL VALVE ASS'Y

|1

709-75-91100

VALVE ASS'Y

1

BODY,VALVE

2

SPOOL,SWING

3

SPOOL,BOOM HIGH

4

SPOOL,SERVICE

5

SPOOL,ARM

6

SPOOL,L.H. TRAVEL

7

SPOOL

8

709-74-92110

RETAINER

9

709-74-92180

SPRING

10

709-74-92360

SHIM¤ 0.5MM

11

709-74-92420

RETAINER

12

709-74-92430

SPRING

13

709-74-92120

CASE

14

709-74-92410

PLATE

15

07040-11409

PLUG

16

07002-01423

O-RING

17

709-74-92170

O-RING

18

709-75-92150

SPRING

19

709-75-92130

RETAINER

20

01252-30812

BOLT

21

01643-30823

WASHER

22

709-75-92140

CASE

23

709-75-92120

SEAL

24

709-75-92170

PLATE

25

709-75-92160

PLATE

26

709-75-92110

PLATE

27

01252-30850

BOLT

28

01252-30820

BOLT

29

01252-30825

BOLT

30

01252-30812

BOLT

31

709-74-92210

SPRING

32

709-74-92270

WASHER

33

709-74-92230

PLUG

34

07002-03034

O-RING

35

709-74-92260

PLATE

36

07000-02018

O-RING

37

01252-30820

BOLT
