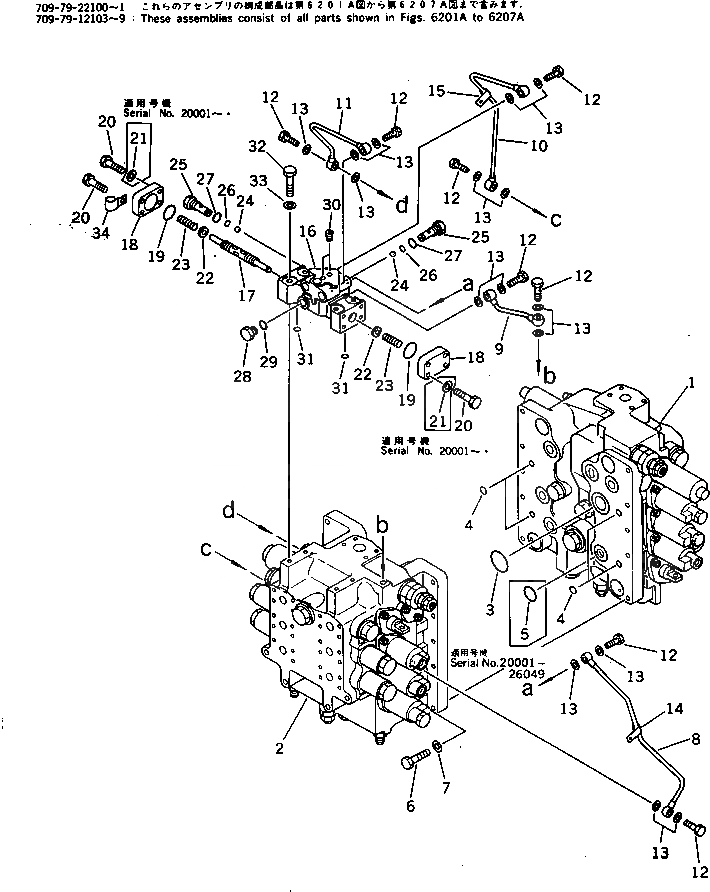

Запчасти Komatsu PC220-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-79-22101
CONTROL VALVE ASS'Y
|1
709-79-22100
CONTROL VALVE ASS'Y
|1
709-79-12109
CONTROL VALVE ASS'Y
|1
709-79-12108
CONTROL VALVE ASS'Y
|1
709-79-12107
CONTROL VALVE ASS'Y
|1
709-79-12106
CONTROL VALVE ASS'Y
|1
709-79-12105
CONTROL VALVE ASS'Y
|1
709-79-12104
CONTROL VALVE ASS'Y
|1
709-79-12103
CONTROL VALVE ASS'Y
1
709-75-92105
VALVE ASS'Y
|1
709-75-92104
VALVE ASS'Y
|1
709-75-00020
VALVE ASS'Y
|1
709-75-92103
VALVE ASS'Y
2
709-74-92105
VALVE ASS'Y
|2
709-74-92104
VALVE ASS'Y
|2
709-74-00020
VALVE ASS'Y
3
07000-13038
O-RING
4
07000-02010
O-RING
5
07000-13028
O-RING
|5
07000-13028
O-RING
6
01010-51040
BOLT
7
01643-31032
WASHER
8
709-79-11130
TUBE
9
709-79-11110
TUBE
10
709-79-11140
TUBE
11
709-79-11120
TUBE
12
07206-30508
BOLT,JOINT
13
07005-00812
GASKET
14
08036-31210
CLIP
15
08036-31214
CLIP
|16
709-70-91102
SHUTTLE VALVE ASS'Y
|16
709-70-91101
SHUTTLE VALVE ASS'Y
16
BODY
|16
BODY
17
SPOOL
18
709-70-91150
PLATE
19
07000-13025
O-RING
20
01010-50825
BOLT
21
01643-30823
WASHER
22
706-73-77140
PLATE
23
709-70-91130
SPRING
24
04260-00793
BALL
25
709-70-91170
PLUG
26
07000-01007
O-RING
27
07002-01423
O-RING
28
07040-11409
PLUG
29
07002-01423
O-RING
30
07043-70108
PLUG
31
07000-11009
O-RING
32
01010-50855
BOLT
33
01643-30823
WASHER
34
08036-30810
CLIP
Выбрано товаров: 52
