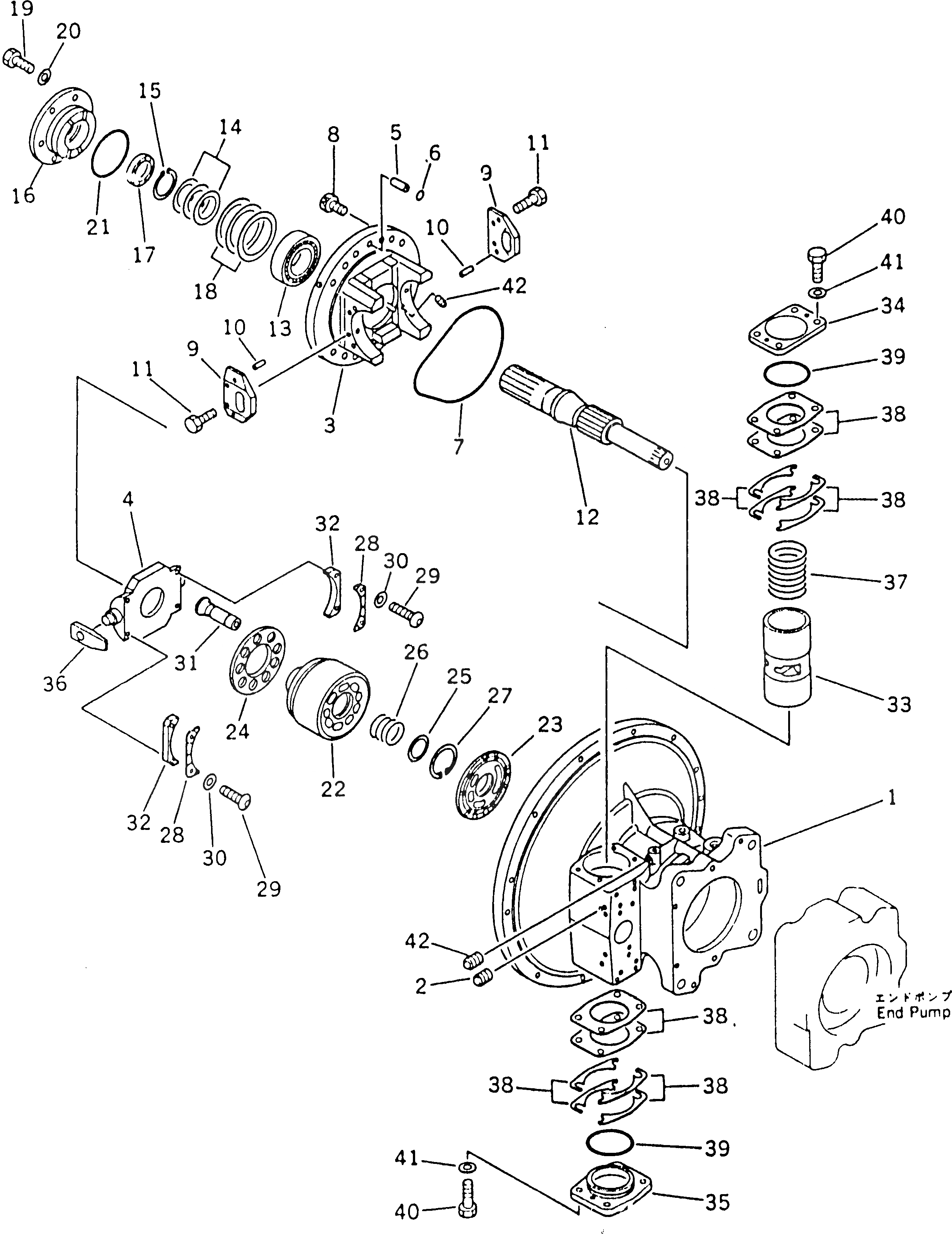

Запчасти Komatsu PC220-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-25-01054
PUMP ASS'Y
|1
708-25-01053
PUMP ASS'Y
|1
708-25-01052
PUMP ASS'Y
|1
708-25-01051
PUMP ASS'Y
|1
708-25-01050
PUMP ASS'Y
|1
708-25-10101
PUMP ASS'Y
|1
708-25-11100
PUMP SUB ASS'Y
1
CASE,FRONT
2
720-68-19740
PLUG
|3
CRADLE ASS'Y,FRONT
3
CRADLE,FRONT
4
CAM,ROCKER
5
708-25-12330
JOINT
6
07000-12015
O-RING
7
708-25-12340
O-RING
8
708-25-12390
BOLT
9
708-25-12360
PLATE
10
04020-00820
PIN,DOWEL
11
01010-50816
BOLT
12
SHAFT,FRONT
13
BEARING
14
708-25-05010
WASHER KIT
|14
WASHER¤ 2.0MM
|14
WASHER¤ 2.1MM
|14
WASHER¤ 2.2MM
15
RING,SNAP
16
708-25-12810
HOUSING
17
706-73-40920
SEAL,OIL
18
708-25-05030
SHIM KIT
|18
SHIM
|18
SHIM
|18
SHIM
19
01010-50820
BOLT
20
01643-30823
WASHER
21
07000-02080
O-RING
|22
708-25-00011
BLOCK ASS'Y
22
BLOCK,CYLINDER
23
PLATE,VALVE
24
RETAINER,SHOE
25
708-25-13120
WASHER
26
708-25-13130
SPRING
27
708-25-13140
RING,SNAP
28
RETAINER
29
SCREW
30
WASHER
|31
708-25-00200
PISTON ASS'Y
31
PISTON SUB ASS'Y
32
SPACER¤ 11.575MM
|32
SPACER¤ 11.540MM
|32
SPACER¤ 11.560MM
|33
708-25-00210
PISTON GROUP
33
PISTON
34
CAP
35
CAP
36
708-25-14120
SLIDER
37
708-25-14130
SPRING
38
708-25-05050
SHIM KIT
|38
SHIM¤ 0.1MM
|38
SHIM¤ 0.1MM
|38
SHIM¤ 0.2MM
|38
SHIM¤ 0.5MM
39
07000-02065
O-RING
40
01010-51025
BOLT
41
01643-31032
WASHER
42
720-68-19510
PLUG
Выбрано товаров: 65
