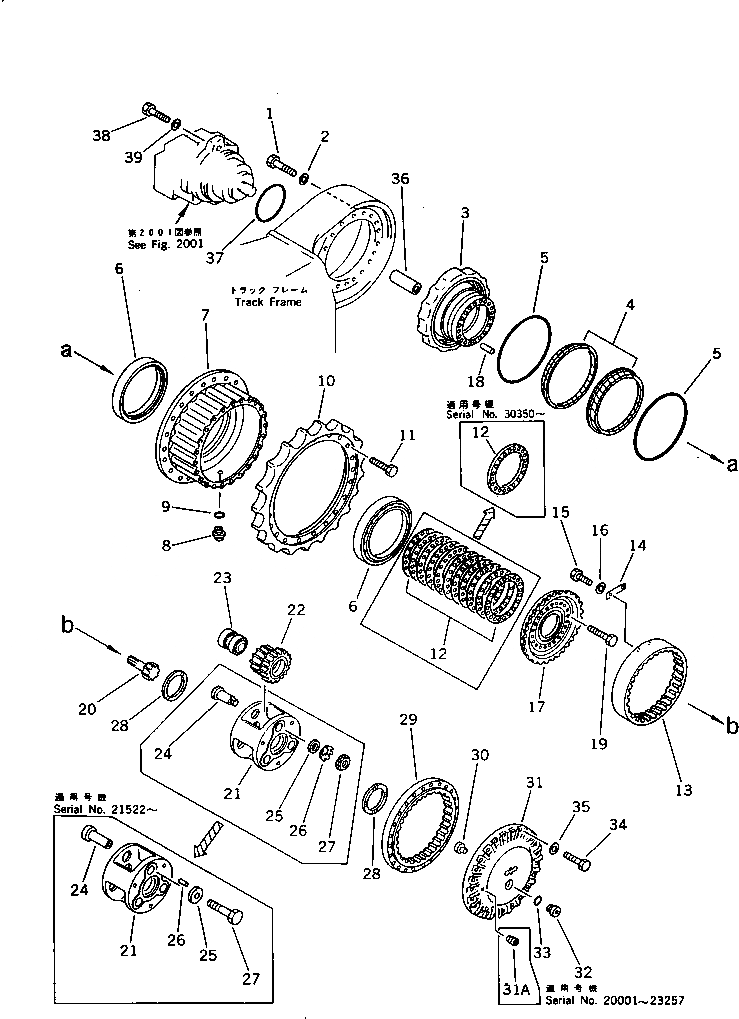

Запчасти Komatsu PC220-3 КОНЕЧНАЯ ПЕРЕДАЧА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА
№
Артикул
Название
Примечание
Количество
1
01010-51670
BOLT
2
01643-31645
WASHER
|$2
206-27-00027
FINAL DRIVE ASS'Y
|$3
206-27-00026
FINAL DRIVE ASS'Y
|$4
206-27-00025
FINAL DRIVE ASS'Y
|$5
206-27-00024
FINAL DRIVE ASS'Y
|$6
206-27-00023
FINAL DRIVE ASS'Y
|$7
206-27-00022
FINAL DRIVE ASS'Y
|$8
206-27-00021
FINAL DRIVE ASS'Y
|$9
206-27-00020
FINAL DRIVE ASS'Y
3
205-27-71481
SHAFT
3
205-27-71480
SHAFT
|$14
150-27-00027
FLOATING SEAL ASS'Y
4
150-27-00262
SEAL RING ASS'Y
4
RING,SEAL
5
150-27-00270
O-RING ASS'Y
5
O-RING
6
205-27-71430
BEARING
7
205-27-71471
HUB
7
205-27-71470
HUB
8
07044-12412
PLUG
9
07002-02434
O-RING
10
205-27-71281
SPROCKET
11
205-27-71670
BOLT
11
01010-51640
BOLT
12
20Y-27-11310
SPACER, 4.85MM
12
205-27-00060
SHIM ASS'Y
12
SHIM, 0.15MM
12
SHIM, 0.2MM
13
205-27-71531
GEAR
13
205-27-71530
GEAR
14
205-27-71610
PLATE
15
01010-50820
BOLT
16
01643-50823
WASHER
17
205-27-71630
GEAR
18
04020-01842
PIN,DOWEL
19
205-27-71680
BOLT
19
205-27-71670
BOLT
19
01010-51640
BOLT
20
206-27-44112
GEAR
21
205-27-71510
CARRIER
22
206-27-00010
PLANETARY GEAR A.
22
GEAR
23
205-27-71560
BEARING
24
205-27-71582
PIN
24
205-27-71580
PIN
25
205-27-71592
COLLAR
25
205-27-71591
COLLAR
26
04020-00616
PIN,DOWEL
26
01658-03618
WASHER
27
01010-51465
BOLT
27
01530-03610
NUT,LOCK
28
205-27-71570
SPACER
29
206-27-44132
GEAR
30
205-27-71360
BUTTON
31
205-27-71492
COVER
31
205-27-71491
COVER
31A
07043-70312
PLUG
32
07040-12414
PLUG
32
07040-13618
PLUG
33
07002-02434
O-RING
33
07002-03634
O-RING
34
01010-51685
BOLT
35
01643-31645
WASHER
36
205-27-71131
COUPLING
37
07000-05190
O-RING
38
01010-51670
BOLT
39
01643-31645
WASHER
12
20Y-27-11320
SPACER, 4.90MM
12
20Y-27-11330
SPACER, 4.95MM
12
20Y-27-11340
SPACER, 5.00MM
12
20Y-27-11350
SPACER, 5.05MM
12
20Y-27-11360
SPACER, 5.10MM
Выбрано товаров: 73
