Запчасти Komatsu PC220-3 МАРКИРОВКА(ФРАНЦИЯ-АНГЛ.)(ДЛЯ WRIST УПРАВЛ-Е)(W/O АВТОМАТИЧ. DECEL.¤ПОВОРОТН. MECHA.ТОРМОЗ.)(С -STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

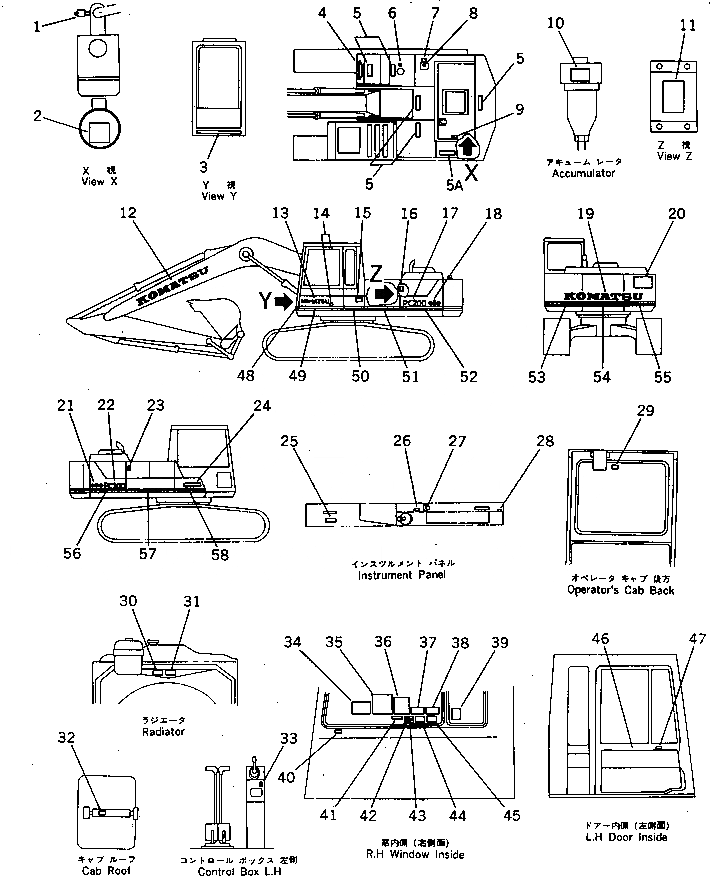

Схема запчастей Komatsu PC220-3 - МАРКИРОВКА(ФРАНЦИЯ-АНГЛ.)(ДЛЯ WRIST УПРАВЛ-Е)(W/O АВТОМАТИЧ. DECEL.¤ПОВОРОТН. MECHA.ТОРМОЗ.)(С -STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

08670-50641

INDICATOR,DUST

2

09637-30762

PLATE, INSTRUCTION

2

09637-30262

PLATE, INSTRUCTION

3

205-54-76480

PLATE

4

205-54-76511

SEAT,NONSKID

4

205-54-76510

SEAT,NONSKID

5

154-54-23260

SEAT,NONSKID

5A

205-54-76511

SEAT,NONSKID

5A

154-54-23260

SEAT,NONSKID

6

09669-00002

PLATE, CAUTION,FUEL

7

09653-05000

PLATE, SAFETY,HYDRAULIC TANK CAP

8

09669-00003

PLATE, CAUTION,HYDRAULIC OIL TANK

9

09667-05000

PLATE, SAFETY

10

205-00-75480

PLATE

11

205-00-75471

PLATE

11

205-00-75470

PLATE

12

205-00-63171

PLATE, MARK,KOMATSU

13

09690-50500

PLATE, MARK,KOMATSU

14

205-00-63770

PLATE

15

09602-52643

PLATE, NAME

15

205-00-72430

RIVET

15

205-00-71540

SCREW

16

205-00-76410

PLATE

17

206-00-44110

PLATE, MARK,PC220

18

205-00-71240

PLATE, MARK,SYMBOL

19

205-00-71110

PLATE, MARK

20

09133-05000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

21

205-00-71240

PLATE, MARK,SYMBOL

22

206-00-44110

PLATE, MARK,PC220

23

205-00-73360

PLATE, OPERATING

23

203-00-31120

PLATE, INSTRUCTION

24

09690-50500

PLATE, MARK,KOMATSU

25

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

26

09685-00001

PLATE, OPERATING

27

09683-51060

PLATE, OPERATING,STARTING SWITCH

28

205-00-75880

PLATE

29

205-00-63890

PLATE

30

205-00-66310

PLATE, CAUTION

31

09668-05000

PLATE, SAFETY

32

205-00-63980

PLATE, SAFETY

33

09685-00002

PLATE, OPERATING

34

205-00-71870

PLATE

35

205-00-66110

PLATE, OPERATING

36

205-00-75440

PLATE

37

205-00-66350

PLATE

38

205-00-66220

PLATE

39

205-00-71620

PLATE, CAUTION

40

205-00-63910

PLATE

41

205-00-73260

PLATE

42

09131-05000

PLATE, SAFETY,SWING LOCK LEVER

43

09651-05000

PLATE, SAFETY,BEFORE OPERATING

44

09173-05000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

45

205-00-63870

PLATE, CAUTION

46

205-54-72191

COVER

46

205-54-72190

COVER

46

205-54-72350

CLIP ASS'Y

46

205-54-72350

CLIP ASS'Y

47

205-00-71340

PLATE, OPERATING

|$58

205-00-71530

LINE, STRIPE, 50M

48

205-00-73270

LINE, STRIPE, 46MM,(SERVICE PARTS)

49

205-00-71120

LINE, STRIPE, 1030MM,(SERVICE PARTS)

50

205-00-71130

LINE, STRIPE, 476MM,(SERVICE PARTS)

51

205-00-71140

LINE, STRIPE, 844MM,(SERVICE PARTS)

52

205-00-71150

LINE, STRIPE, 984MM,(SERVICE PARTS)

53

205-00-71160

LINE, STRIPE, 1093MM,(SERVICE PARTS)

54

205-00-71170

LINE, STRIPE, 955MM,(SERVICE PARTS)

55

205-00-71160

LINE, STRIPE, 1093MM,(SERVICE PARTS)

56

205-00-71190

LINE, STRIPE, 849MM,(SERVICE PARTS)

57

205-00-71210

LINE, STRIPE, 1104MM,(SERVICE PARTS)

58

205-00-71230

LINE, STRIPE, 757MM,(SERVICE PARTS)

Выбрано товаров: 70
