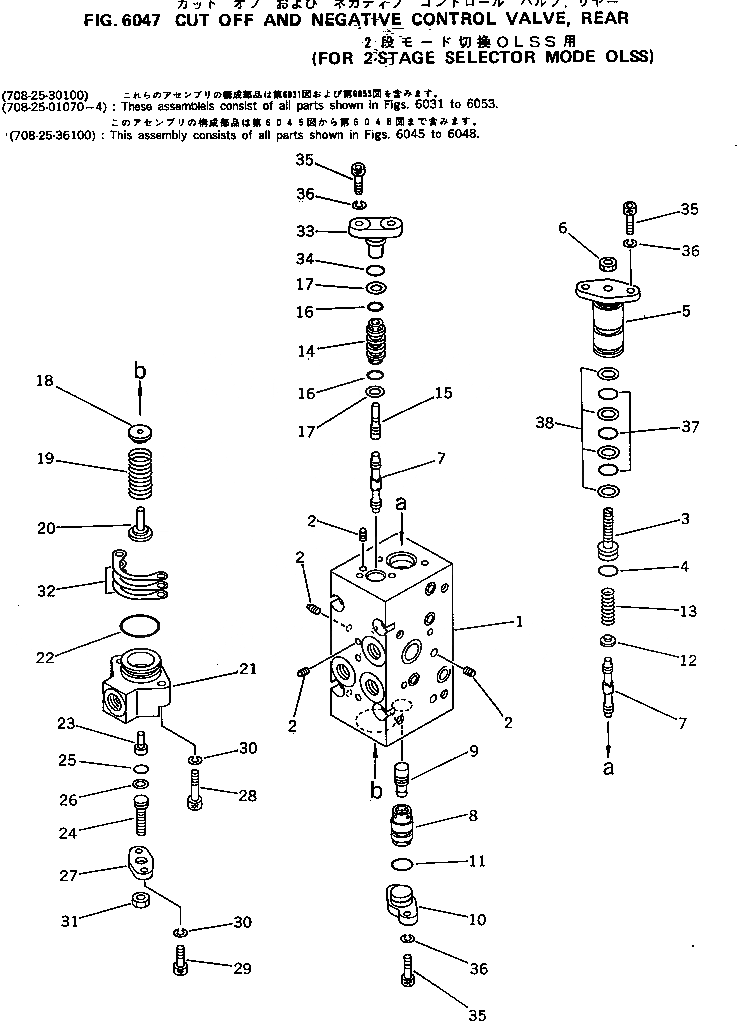

Запчасти Komatsu PC220-3 CUT OFF И NEGATIVE УПРАВЛЯЮЩ. КЛАПАН¤ ЗАДН. (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-25-01074

PUMP ASS'Y

|$1

708-25-01073

PUMP ASS'Y

|$2

708-25-01072

PUMP ASS'Y

|$3

708-25-01071

PUMP ASS'Y

|$4

708-25-01070

PUMP ASS'Y

|$5

708-25-30100

HYDRAULIC PUMP ASS'Y

|$6

708-25-36100

SERVO VALVE ASS'Y,REAR

|$7

708-25-37100

VALVE ASS'Y

|$8

708-23-07040

BODY ASS'Y

1

BODY

2

PLUG

3

708-25-17120

PLUG

4

07000-02012

O-RING

5

708-25-17130

COVER

6

01580-10806

NUT

7

708-25-17140

SPOOL

8

708-25-17150

SLEEVE

9

708-25-17160

PISTON

10

708-25-17170

COVER

11

07000-02014

O-RING

12

708-25-17180

SEAT

13

708-25-17190

SPRING

14

708-25-17210

SLEEVE

15

708-25-17220

PISTON

16

07000-12012

O-RING

17

07001-02012

RING,BACK-UP

18

708-25-17240

SEAT

19

708-25-17250

SPRING

20

708-25-17260

SEAT

21

708-25-17280

COVER

22

07000-03028

O-RING

23

708-25-17270

PISTON

24

708-25-17290

PLUG

25

07000-11009

O-RING

26

07001-01009

RING,BACK-UP

27

708-25-17310

COVER

28

01252-30630

BOLT

29

01252-30616

BOLT

30

01602-20619

WASHER,SPRING

31

01580-10806

NUT

32

708-25-17320

SHIM

32

708-25-17330

SHIM

32

708-25-17340

SHIM

33

708-25-17230

COVER

34

07000-02012

O-RING

35

01252-30616

BOLT

36

01602-20619

WASHER,SPRING

37

07000-02021

O-RING

38

07001-02021

RING,BACK-UP
