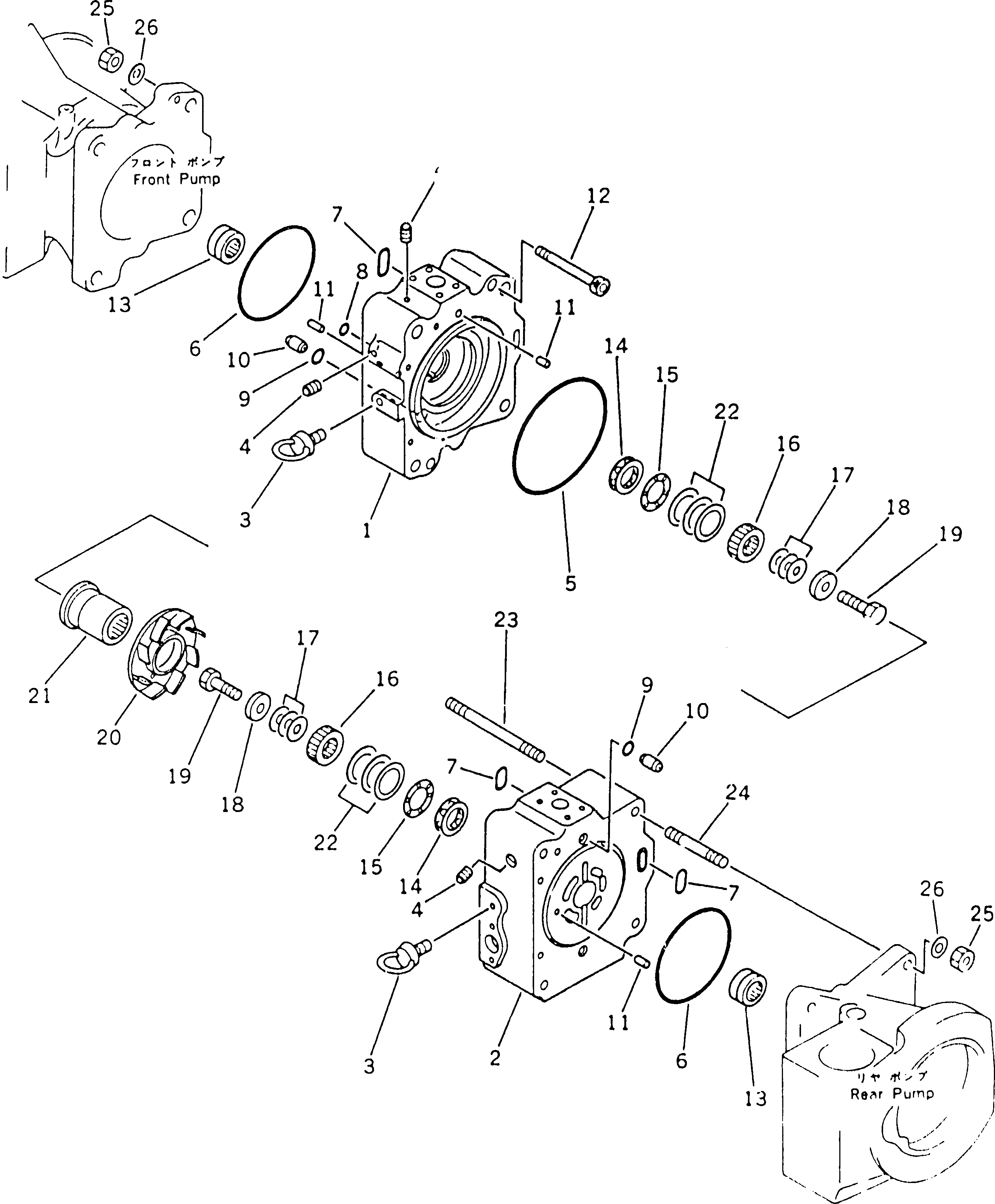

Запчасти Komatsu PC220-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-25-01074

PUMP ASS'Y

|$1

708-25-01073

PUMP ASS'Y

|$2

708-25-01072

PUMP ASS'Y

|$3

708-25-01071

PUMP ASS'Y

|$4

708-25-01070

PUMP ASS'Y

|$5

708-25-30100

HYDRAULIC PUMP ASS'Y

|$6

708-25-11100

PUMP SUB ASS'Y

1

CAP,END

2

CAP,END

3

04530-01018

BOLT,EYE

4

720-68-19510

PLUG

5

07000-05165

O-RING

6

07000-02135

O-RING

7

07000-03032

O-RING

8

07000-11009

O-RING

9

07000-12015

O-RING

10

708-25-12330

JOINT

11

720-68-19610

PIN

12

708-25-12530

BOLT

13

708-25-12740

BEARING

14

06000-51106

BEARING

15

708-25-12820

SPACER

16

708-25-12830

BOSS

17

708-25-05020

SHIM KIT

17

SHIM, 0.1MM

17

SHIM, 0.15MM

17

SHIM, 0.2MM

17

SHIM, 0.5MM

18

708-25-12880

PLATE

19

01010-51016

BOLT

20

708-25-12540

IMPELLER

21

708-25-12550

COUPLING

22

708-25-05040

SPACER KIT

22

SPACER, 0.1MM

22

SPACER, 0.2MM

22

SPACER, 0.5MM

23

01141-81620

STUD

24

01140-81645

STUD

25

01582-21613

NUT

26

01643-31645

WASHER
