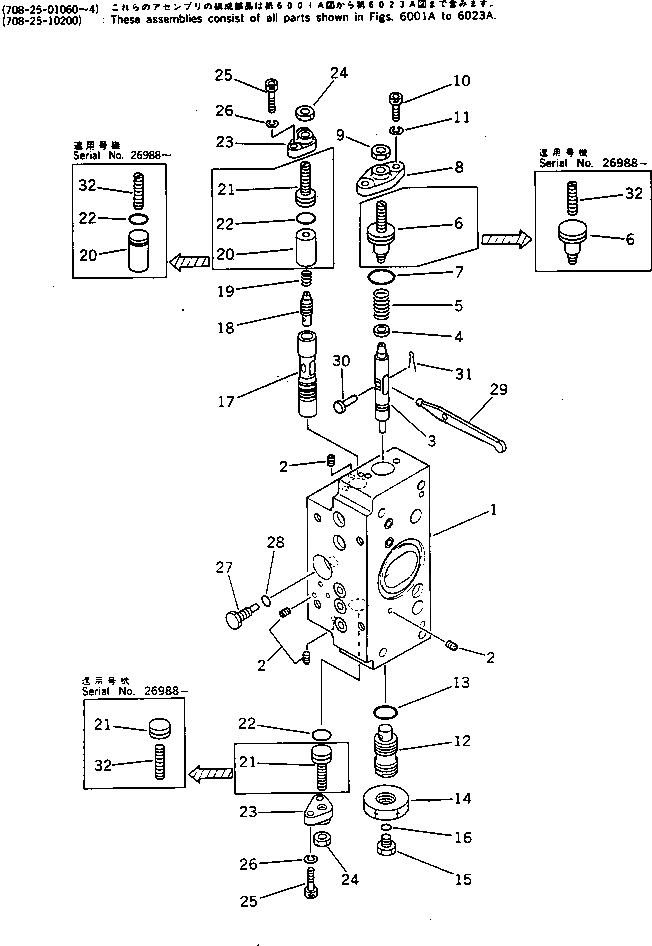

Запчасти Komatsu PC220-3 СЕРВОКЛАПАН¤ ЗАДН. (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-25-01054

PUMP ASS'Y

|$1

708-25-01053

PUMP ASS'Y

|$2

708-25-01052

PUMP ASS'Y

|$3

708-25-01051

PUMP ASS'Y

|$4

708-25-01050

PUMP ASS'Y

|$5

708-25-10101

PUMP ASS'Y

|$6

708-25-16101

SERVO VALVE ASS'Y,REAR

|$7

708-25-16200

VALVE ASS'Y

|$8

708-23-07010

BODY ASS'Y

1

BODY

2

PLUG

3

708-25-15120

PISTON

4

708-25-15130

SEAT

5

708-25-15140

SPRING

6

708-25-15160

PLUG

7

07000-02018

O-RING

8

708-25-15150

COVER

9

01580-10806

NUT

10

01252-30616

BOLT

11

01602-20619

WASHER,SPRING

12

708-25-15171

PLUG

13

07002-02034

O-RING

14

07239-12009

NUT

15

07040-11007

PLUG

16

07002-01023

O-RING

17

708-25-15180

SLEEVE

18

708-25-15280

SPOOL

19

708-25-15310

SPRING

20

708-25-15290

SPACER

21

708-25-15240

PLUG

22

07000-02012

O-RING

23

708-25-15250

COVER

24

01580-10806

NUT

25

01252-30616

BOLT

26

01602-20619

WASHER,SPRING

27

708-25-15260

PLUG

28

07002-00823

O-RING

29

708-25-15270

ARM

30

04205-00514

PIN

31

04050-01210

PIN,COTTER
