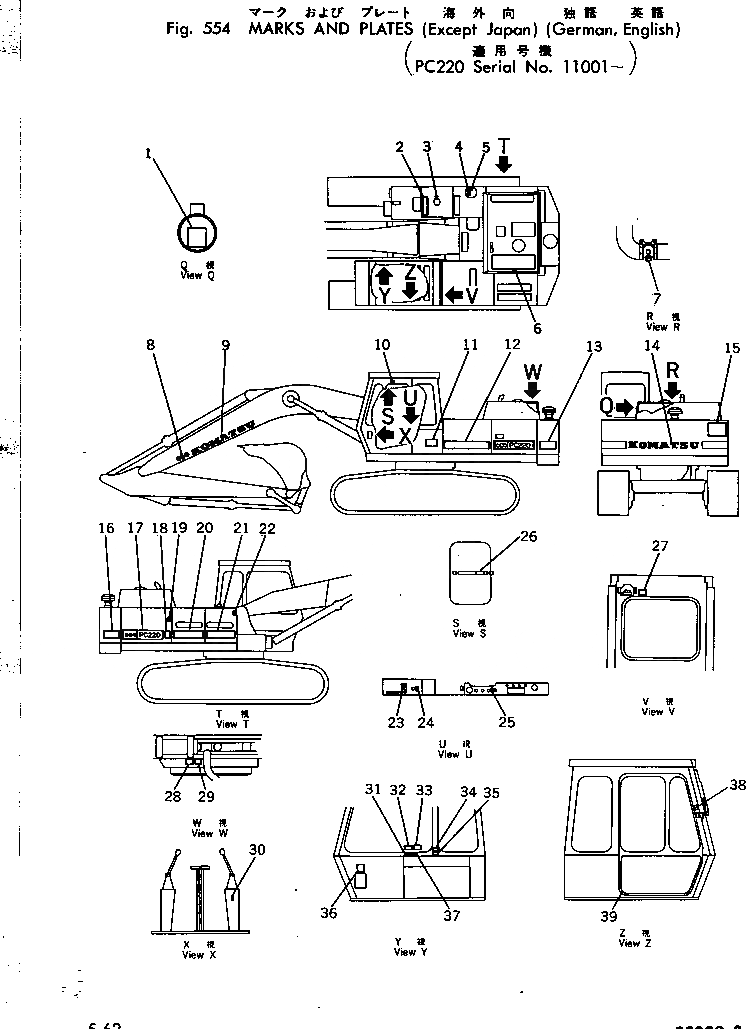

Запчасти Komatsu PC220-2 МАРКИРОВКА (ПОРТУГАЛ.) ОСНОВНАЯ РАМА И КАБИНА

1

09637-81161

PLATE, INSTRUCTION,AIR CLEANER

2

154-54-23260

SEAT,NONSKID

3

09669-00002

PLATE, CAUTION,FUEL TANK

4

09653-02000

PLATE, SAFETY,HYDRAULIC OIL TANK

5

09669-00003

PLATE, CAUTION,HYDRAULIC OIL TANK

6

09667-02000

PLATE, SAFETY,ENGINE COVER

7

08670-20635

INDICATOR,DUST INDICATOR

8

205-00-63280

PLATE, MARK,SYMBOL

9

205-00-63171

PLATE, MARK,KOMATSU

10

205-00-63770

PLATE,GUARD

11

09602-21643

PLATE, NAME,(LIMITED SUPPLY)

11

01220-60408

SCREW

12

206-00-43110

STRIPE

13

206-00-43121

STRIPE

13

206-00-43120

STRIPE

14

205-00-63270

PLATE, MARK,KOMATSU

15

09133-02000

PLATE, SAFETY,KEEP, OUT OF TURNING AREA

16

206-00-43131

STRIPE

16

206-00-43130

STRIPE

17

206-00-42170

PLATE, MARK,PC220

18

206-00-43140

STRIPE

19

207-00-13530

PLATE,LEVEL GAUGE, HYDRAULICK OIL

20

206-00-43150

STRIPE

21

206-00-42240

PLATE, MARK

22

205-00-65170

PLATE,LEVEL GAUGE, FUEL

23

09685-00002

PLATE, OPERATING,OPERATING, SWING LOCK LEVER

24

207-00-13520

PLATE, OPERATING,MAIN SWITCH

25

205-00-64140

PLATE,STARTING SWITCH

26

207-00-13510

PLATE, SAFETY,GAS SPRING

27

207-00-13450

PLATE,AUTOMATIC LOCK

28

205-00-65290

PLATE, CAUTION

29

09668-02000

PLATE, SAFETY,RADIATOR CAP

30

09685-00001

PLATE, OPERATING,SAFETY LOCK

31

09651-02000

PLATE, SAFETY,BEFORE OPERATING

32

205-00-65160

PLATE,ENGINE STOP

33

205-00-64230

PLATE,CYLINDER AIR BLEED

34

09173-02000

PLATE, SAFETY,INSPECTION, MAINTENANCE

35

207-00-13480

PLATE, CAUTION

36

207-00-13550

PLATE, CAUTION,WINDOW WASHER (OP)

37

09131-02000

PLATE, SAFETY,SWING LOCK LEVER

38

207-00-13460

PLATE, CAUTION,WIPER MOTOR WIRING

39

205-00-65230

COVER

39

205-00-65310

CLIP ASS'Y,(ATTACHED TO COVER)
