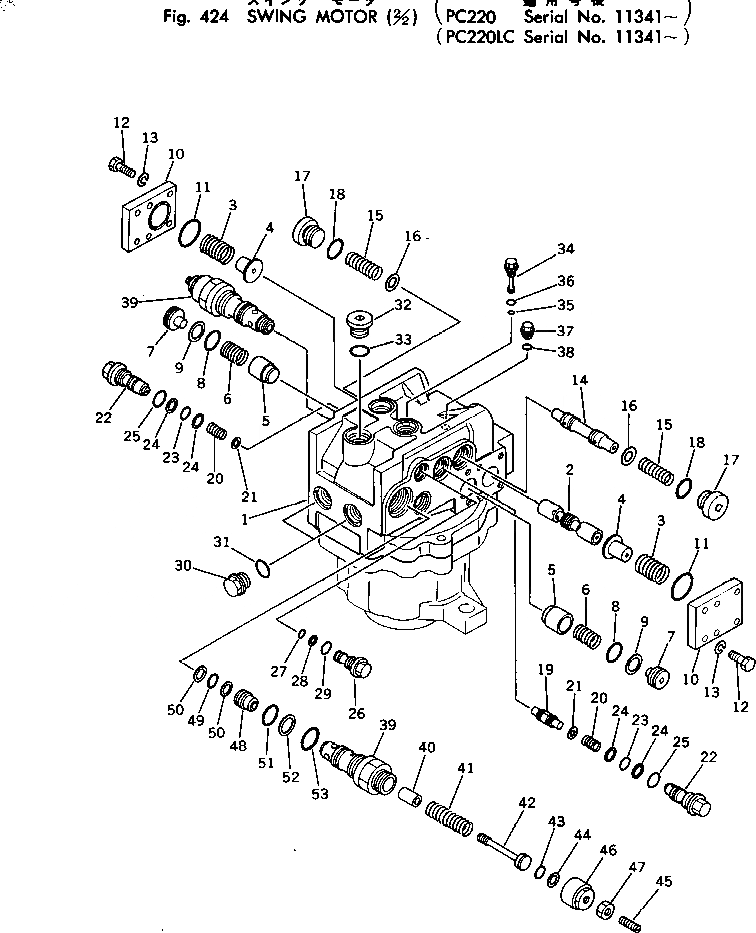

Запчасти Komatsu PC220-2 МОТОР ПОВОРОТА (/)(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS
№
Артикул
Название
Примечание
Количество
|$0
706-75-11101
SWING MOTOR ASS'Y
|$1
706-75-11100
SWING MOTOR ASS'Y
1
HOUSING
2
706-75-74451
SPOOL
2
SPOOL
3
706-75-74170
SPRING
3
706-75-74190
SPRING
4
706-75-74161
RETAINER
5
706-75-74231
VALVE
6
706-75-74240
SPRING
7
706-75-74261
SEAT
8
07000-13022
O-RING
9
07001-03022
RING,BACK-UP
10
706-75-74220
PLATE
11
07000-13040
O-RING
12
01010-51035
BOLT
13
01602-21030
WASHER,SPRING
14
SPOOL
15
706-73-71380
SPRING
16
706-73-71360
PLATE
17
07040-13016
PLUG
18
07002-13034
O-RING
19
SPOOL
20
706-75-77150
SPRING
21
706-73-77140
PLATE
22
706-75-71410
PLUG
23
07000-12016
O-RING
24
07001-02016
RING,BACK-UP
25
07002-12434
O-RING
26
706-73-71460
PLUG
27
07000-12012
O-RING
28
07001-02012
RING,BACK-UP
29
07002-12034
O-RING
30
700-22-11370
PLUG
31
07002-12434
O-RING
32
07040-12414
PLUG
33
07002-02434
O-RING
34
706-75-71390
ORIFICE
35
07000-01005
O-RING
36
07002-01223
O-RING
37
706-73-71450
PLUG
38
07000-12014
O-RING
|$42
706-75-76501
RELIEF VALVE ASS'Y
|$43
706-75-76200
RELIEF VALVE ASS'Y
39
706-75-75231
SLEEVE
39
706-75-75230
SLEEVE
40
706-75-75250
VALVE
41
706-75-75140
SPRING
42
706-75-75150
PISTON
43
07000-12018
O-RING
44
07001-02018
RING,BACK-UP
45
706-75-75190
SCREW
46
706-75-75220
PLUG
47
01580-11210
NUT
48
706-75-75240
SEAT,VALVE
49
07000-22018
O-RING
50
07001-02018
RING,BACK-UP
51
07000-13025
O-RING
52
07001-03025
RING,BACK-UP
53
07002-13634
O-RING
Выбрано товаров: 60
