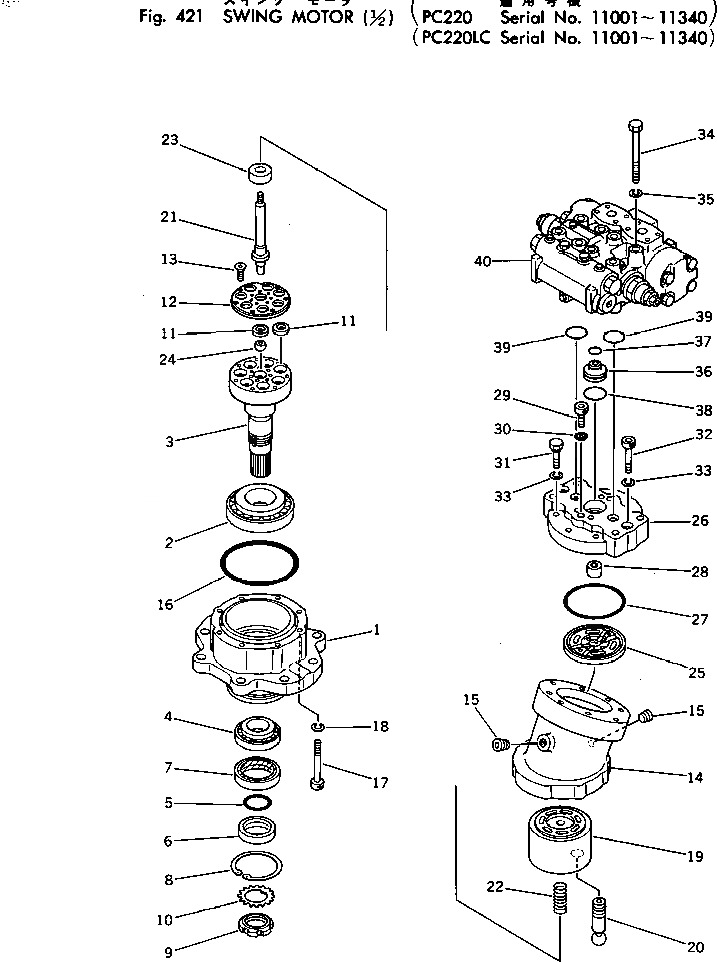

Запчасти Komatsu PC220-2 МОТОР ПОВОРОТА (/)(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

706-75-02500

SWING MOTOR ASS'Y

|$1

706-75-42003

MOTOR ASS'Y,(KMF090)

1

COVER,FRONT

2

BEARING (KIT)

3

SHAFT,DRIVE (KIT)

4

BEARING

5

O-RING (KIT)

6

RING

7

SEAL,OIL (KIT)

8

RING,SNAP

9

NUT

10

WASHER,LOCK (KIT)

11

HOLDER (KIT)

12

RETAINER (KIT)

13

SCREW (KIT)

14

PLATE

15

706-73-40360

PLUG

16

O-RING (KIT)

17

BOLT

18

WASHER,SPRING

19

BLOCK,CYLINDER (KIT)

20

PISTON ASS'Y (KIT)

21

SHAFT,CENTER (KIT)

22

SPRING (KIT)

23

RING,CENTER (KIT)

24

BALL,CENTER (KIT)

25

PLATE,VALVE

26

COVER,END

27

O-RING (KIT)

28

BEARING

29

BOLT (KIT)

30

GASKET,SEAL (KIT)

31

BOLT

32

BOLT

33

WASHER,SPRING

34

01011-51230

BOLT

35

01602-21236

WASHER,SPRING

36

706-75-73260

CAP

37

07000-02018

O-RING

38

07000-03035

O-RING

39

07000-13032

O-RING

40

706-75-73200

BRAKE VALVE ASS'Y

|$42

706-98-00211

DRIVE SHAFT KIT,(EXCEPT JAPAN)

|$43

BEARING

|$44

SHAFT,DRIVE

|$45

07000-03040

O-RING

|$46

SEAL,OIL

|$47

WASHER,LOCK

|$48

HOLDER

|$49

RETAINER

|$50

SCREW

|$51

706-75-41091

BLOCK,CYLINDER

|$52

PISTON ASS'Y

|$53

SHAFT,CENTER

|$54

SPRING

|$55

RING,CENTER

|$56

BALL

|$57

07000-02110

O-RING

|$58

BOLT

|$59

07005-00612

GASKET
