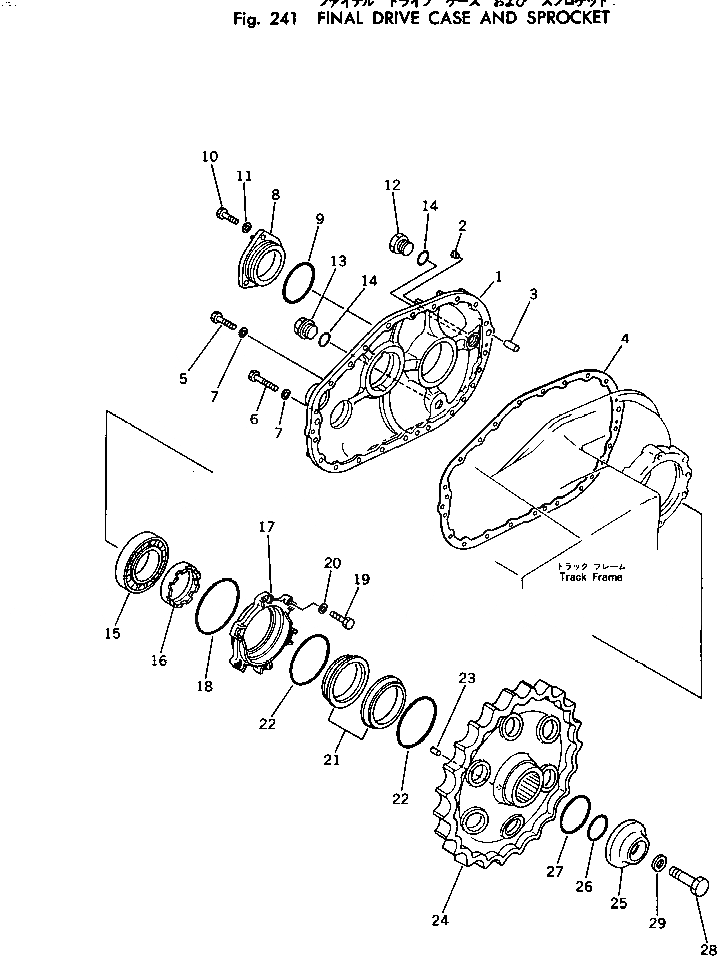

Запчасти Komatsu PC220-2 КОРПУС КОНЕЧН. ПЕРЕДАЧИ И ЗВЕЗДОЧКА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

205-27-00014

FINAL DRIVE ASS'Y,L.H.

|$1

205-27-00024

FINAL DRIVE ASS'Y,R.H.

1

CASE,L.H.

1

CASE,R.H.

2

07049-01418

PLUG

3

170-27-12250

PIN,DOWEL

4

205-27-51131

GASKET

5

01010-51650

BOLT

6

01010-51670

BOLT

7

01643-31645

WASHER

8

205-27-62330

COVER

9

07000-05150

O-RING

10

01010-51440

BOLT

11

01643-31445

WASHER

12

07040-13618

PLUG

13

07044-13620

PLUG

14

07002-03634

O-RING

15

06030-23026

BEARING

16

205-27-52160

NUT

17

205-27-62341

COVER

18

07000-05200

O-RING

19

01010-51435

BOLT

20

01643-31445

WASHER

|$23

180-27-00024

FLOATING SEAL ASS'Y

|$24

205-27-00040

FLOATING SEAL ASS'Y

21

180-27-00072

SEAL RING ASS'Y

21

180-27-00070

SEAL RING ASS'Y

21

RING,SEAL

21

RING,SEAL

22

180-27-00081

O-RING ASS'Y

22

O-RING

23

04020-00820

PIN,DOWEL

24

206-27-21111

SPROCKET

25

205-27-51261

COVER

26

07000-05085

O-RING

27

07000-05125

O-RING

28

205-27-52110

BOLT

29

01643-33380

WASHER
