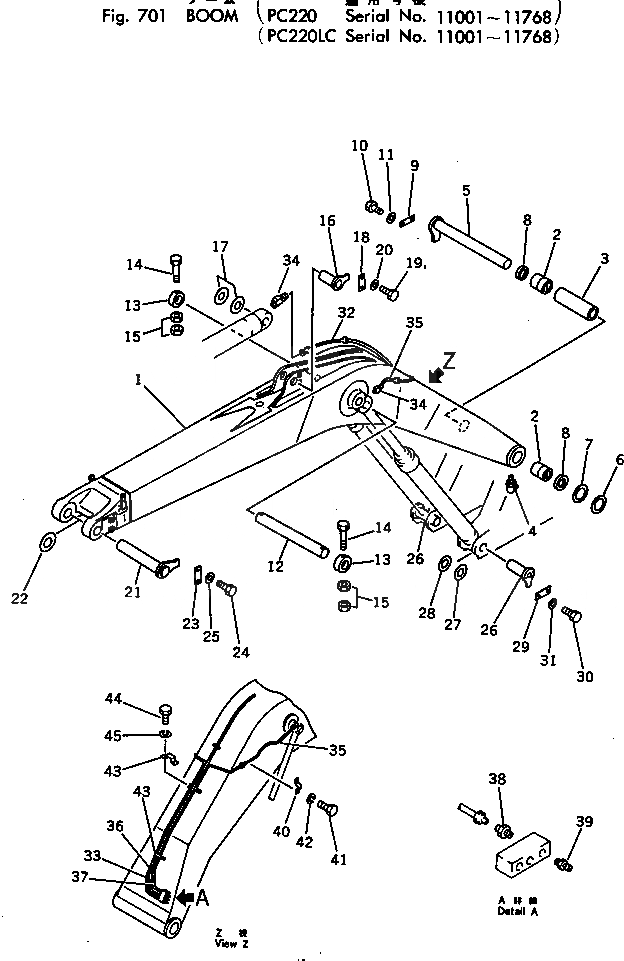

Запчасти Komatsu PC220-2 СТРЕЛА(№-78) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

206-70-00050

BOOM ASS'Y

1

BOOM

2

206-70-45570

BUSHING

3

206-70-45580

SPACER

4

07020-00900

FITTING,GREASE

5

206-70-45560

PIN

6

207-70-11350

SPACER, 1.5MM

7

207-70-11340

SPACER, 0.8MM

8

07145-00100

SEAL,DUST

9

205-70-65690

PLATE

10

01010-52050

BOLT

11

01643-32060

WASHER

12

206-70-45590

PIN

13

206-70-45620

PLATE

14

01011-52090

BOLT

15

01580-12016

NUT

16

206-70-45610

PIN

17

206-70-45220

SPACER, 1.0MM

18

205-70-66580

PLATE

19

01010-51230

BOLT

20

01643-31232

WASHER

21

205-70-65680

PIN

22

206-70-45220

SPACER, 1.0MM

23

205-70-65690

PLATE

24

01010-52050

BOLT

25

01643-32060

WASHER

26

205-70-65750

PIN

27

205-70-51450

SPACER, 1.0MM

28

205-70-61570

SPACER, 1.5MM

29

205-70-66580

PLATE

30

01010-51230

BOLT

31

01643-31232

WASHER

32

209-72-16580

HOSE

33

206-70-45651

TUBE

34

205-70-65780

ELBOW

35

205-70-51360

HOSE, 540MM

36

206-70-45630

TUBE

37

206-70-45640

TUBE

38

07213-50813

CONNECTOR

39

07020-00000

FITTING,GREASE

40

205-70-51420

CLIP

41

01010-50612

BOLT

42

01602-20619

WASHER,SPRING

43

205-70-51410

CLIP

44

01010-50612

BOLT

45

01602-20619

WASHER,SPRING
