Запчасти Komatsu PC220-2 МАРКИРОВКА (ИТАЛИЯ) (P.O.C. MODEL) ОСНОВНАЯ РАМА И КАБИНА

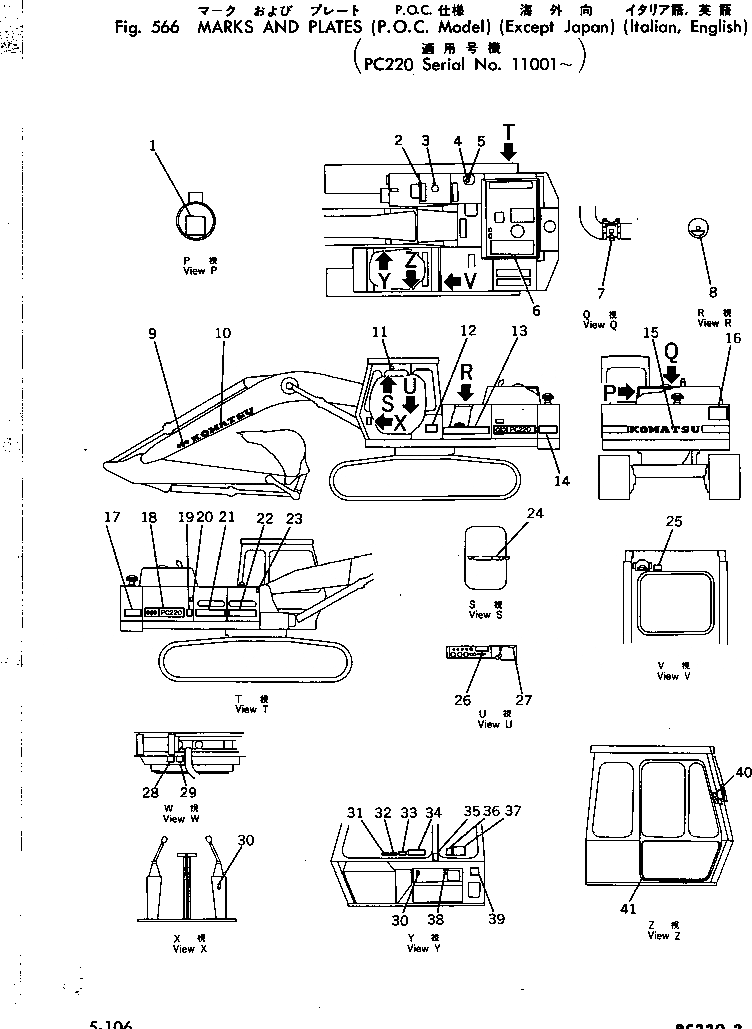

Схема запчастей Komatsu PC220-2 - МАРКИРОВКА (ИТАЛИЯ) (P.O.C. MODEL) ОСНОВНАЯ РАМА И КАБИНА

Артикул

Название

Примечание

Количество

1

09637-40261

PLATE, INSTRUCTION,AIR CLEANER

2

154-54-23260

SEAT,NONSKID

3

09669-00002

PLATE, CAUTION,FUEL TANK

4

09653-06000

PLATE, SAFETY,HYDRAULIC OIL TANK

5

09669-00003

PLATE, CAUTION,HYDRAULIC OIL TANK

6

09667-06000

PLATE, SAFETY,ENGINE COVER

7

08670-20640

INDICATOR,DUST INDICATOR

8

205-00-66570

PLATE,ACCUMULATOR

9

205-00-63280

PLATE, MARK,SYMBOL

10

205-00-63171

PLATE, MARK,KOMATSU

11

205-00-63770

PLATE,GUARD

12

09602-61643

PLATE, NAME,(LIMITED SUPPLY)

12

01220-60408

SCREW

13

206-00-43110

STRIPE

14

206-00-43121

STRIPE

14

206-00-43120

STRIPE

15

205-00-63270

PLATE, MARK,KOMATSU

16

09133-06000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

17

206-00-43131

STRIPE

17

206-00-43130

STRIPE

18

206-00-42170

PLATE, MARK,PC220

19

206-00-43140

STRIPE

20

205-00-66560

PLATE,LEVEL GAUGE, HYDRAULIC OIL

21

206-00-43150

STRIPE

22

206-00-42240

PLATE, MARK

23

205-00-65170

PLATE,LEVEL GAUGE, FUEL

24

205-00-66430

PLATE, SAFETY,GAS SPRING

25

205-00-66460

PLATE,AUTOMATIC LOCK

26

205-00-66420

PLATE,STARTING SWITCH

27

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

28

205-00-66510

PLATE, CAUTION

29

09668-06000

PLATE, SAFETY,RADIATOR CAP

30

09685-00001

PLATE, OPERATING,SAFETY LOCK

31

09651-06000

PLATE, SAFETY,BEFORE OPERATING

32

09131-06000

PLATE, SAFETY,SWING LOCK LEVER

33

205-00-66520

PLATE,ENGINE STOP

34

205-00-66470

PLATE,CYLINDER AIR BLEED

35

205-00-66480

PLATE, CAUTION

36

09173-06000

PLATE, SAFETY,INSPECTION, MAINTENANCE

37

09659-26000

PLATE, SAFETY,ACCUMULATOR

38

205-00-66440

PLATE,MAIN SWITCH

39

205-00-66530

PLATE,WINDOW WASHER (OP)

40

205-00-66450

PLATE, CAUTION,WIPER MOTOR WIRING

41

205-00-66550

COVER

41

205-00-65310

CLIP ASS'Y,(ATTACHED TO COVER)

Выбрано товаров: 45
