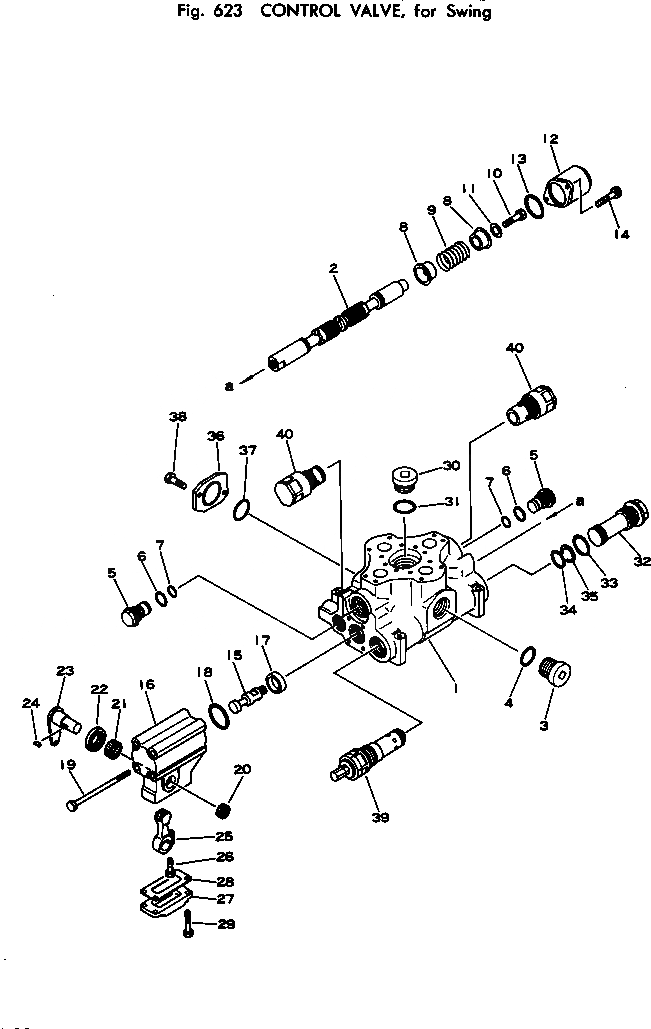

Запчасти Komatsu PC220-1 УПРАВЛЯЮЩ. КЛАПАН¤ ДЛЯ ПОВОРОТН. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-91-13001

CONTROL VALVE ASS'Y

|$1

700-91-13000

CONTROL VALVE ASS'Y

|$2

700-91-14001

CONTROL VALVE ASS'Y

|$3

700-91-14000

CONTROL VALVE ASS'Y

1

BODY

2

SPOOL

3

07040-13618

PLUG

4

07002-13634

O-RING

5

700-22-11360

PLUG

6

07002-02434

O-RING

7

07000-02014

O-RING

8

700-93-11870

RETAINER

9

700-93-11880

SPRING

9

700-93-11890

SPRING

10

01252-31016

BOLT

11

01643-31032

WASHER

12

700-93-11920

CASE

13

07430-71380

O-RING

14

01252-30820

BOLT

15

700-93-11930

JOINT

16

700-93-11710

CASE

17

700-93-11720

COLLAR

18

07430-71380

O-RING

19

700-93-11730

BOLT

20

700-93-11740

BEARING

21

700-93-11750

BEARING

22

700-93-11761

SEAL

23

700-93-11770

LEVER

24

04010-00416

KEY

25

700-93-11780

LEVER

26

01010-30825

BOLT

27

700-93-11790

PLATE

28

700-93-11810

GASKET

29

01010-30820

BOLT

30

700-93-11380

PLUG

31

07002-13634

O-RING

32

700-93-11310

PLUG

33

07002-03634

O-RING

34

700-93-11320

O-RING

35

700-93-11330

RING

36

700-93-11940

FLANGE

37

07430-71380

O-RING

38

01010-31025

BOLT

39

700-90-55000

VALVE ASS'Y,RELIEF

39

700-91-52000

VALVE ASS'Y,RELIEF

40

700-90-62000

VALVE ASS'Y,SUCTION
