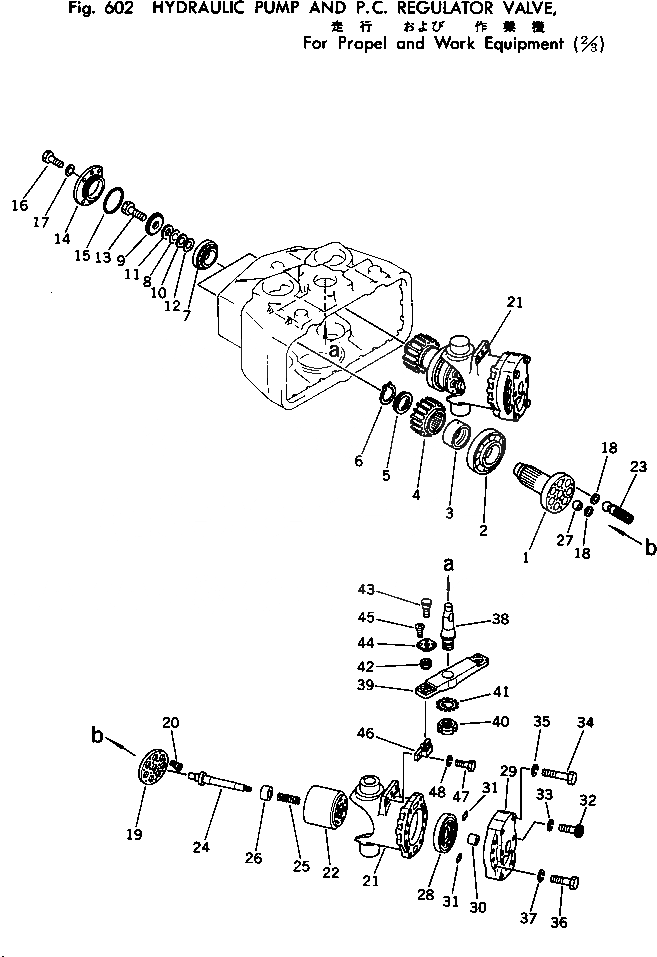

Запчасти Komatsu PC220-1 ГИДР. НАСОС. И P.C. РЕГУЛИР. КЛАПАН¤ (ДЛЯ PКАНАТL И РАБОЧ. ОБОРУД-Е) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-66-11202

HYDRAULIC PUMP ASS'Y

|$1

706-66-11201

HYDRAULIC PUMP ASS'Y

|$2

706-66-11201

HYDRAULIC PUMP ASS'Y

|$3

706-66-11201

HYDRAULIC PUMP ASS'Y

|$4

706-66-13201

HYDRAULIC PUMP ASS'Y

|$5

706-66-13200

HYDRAULIC PUMP ASS'Y

|$6

706-66-13200

HYDRAULIC PUMP ASS'Y

|$7

706-66-42001

PUMP SUB ASS'Y

|$8

706-66-42000

PUMP SUB ASS'Y

|$9

706-66-42000

PUMP SUB ASS'Y

|$10

706-66-42000

PUMP SUB ASS'Y

1

SHAFT

2

BEARING

3

RING

4

GEAR

5

SPACER

6

RING

7

BEARING

8

SHIM

9

PLATE

10

SHIM

11

SPACER

12

SHIM

13

BOLT

14

706-66-40420

COVER

15

706-66-40430

O-RING

16

01010-50825

BOLT

17

01602-20825

WASHER

18

HOLDER

19

RETAINER

20

SCREW

21

CASING

22

BLOCK

23

PISTON SUB ASS'Y

24

SHAFT

25

SPRING

26

RING

27

BALL

28

PLATE

|$39

COVER ASS'Y

|$40

COVER ASS'Y

29

COVER

30

BUSHING

30

BEARING

30

BUSHING

30

BEARING

30

BUSHING

30

BEARING

31

O-RING

32

BOLT

33

WASHER

34

BOLT

35

WASHER

36

BOLT

37

WASHER

38

ROD

39

LINK

40

NUT

41

WASHER

42

BEARING

43

PIN

44

HOLDER

45

SCREW

46

BRACKET

47

BOLT

48

WASHER
