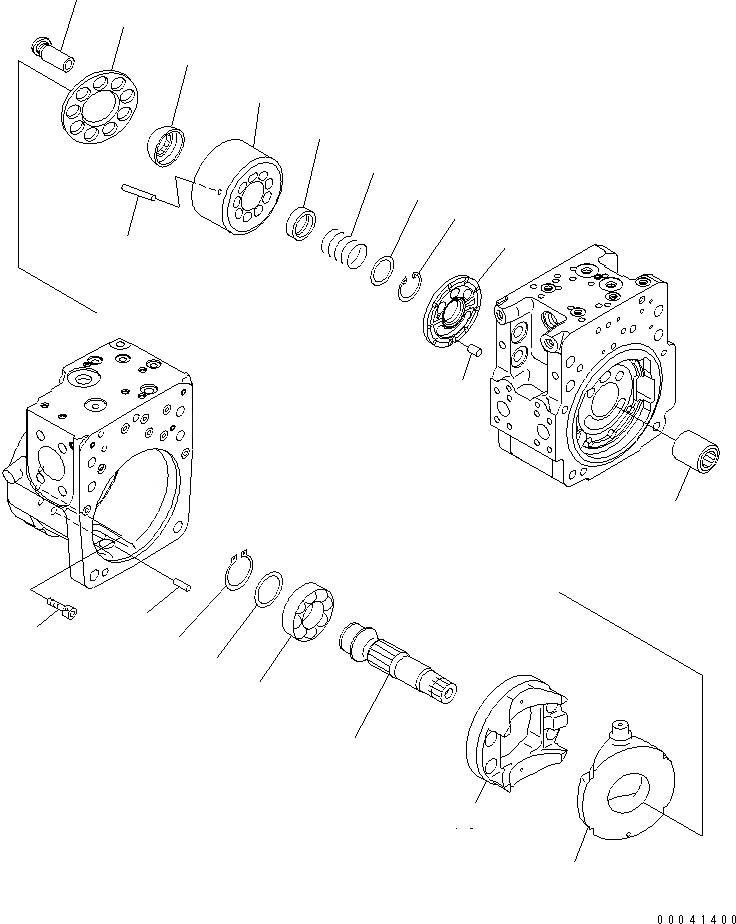

Запчасти Komatsu PC210NLC-8K ОСНОВН. НАСОС (7/) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2L-00701

PUMP ASSEMBLY

|1

708-2L-00700

PUMP ASSEMBLY

|1

708-2L-01701

PUMP SUB ASSEMBLY

|1

708-2L-01700

PUMP SUB ASSEMBLY

1

708-2L-42220

SHAFT, REAR

2

708-2L-42250

BEARING

3

708-2E-05040

WASHER KIT

|3

WASHER, 3.1MM

|3

WASHER, 3.0MM

|3

WASHER, 2.9MM

|3

WASHER, 2.8MM

4

708-25-12790

RING, SNAP

|5

708-2L-06890

BLOCK ASSEMBLY, REAR

5

BLOCK, CYLINDER

6

PLATE, VALVE

7

708-18-13230

PIN

8

04065-05820

RING, SNAP

9

708-2L-43130

SEAT

10

708-2L-43150

SPRING

11

708-2H-23141

SEAT

12

708-2L-43510

GUIDE, RETAINER

13

708-2L-43360

PIN

14

708-2L-43340

RETAINER, SHOE

15

708-2L-43311

PISTON SUB ASSEMBLY

|16

708-2L-06262

CRADLE ASSEMBLY

|16

708-2L-06261

CRADLE ASSEMBLY

16

CRADLE

|16

CRADLE

17

CAM, ROCKER

18

04020-01228

PIN, DOWEL

19

01252-61025

BOLT

20

708-2L-42230

COUPLING
