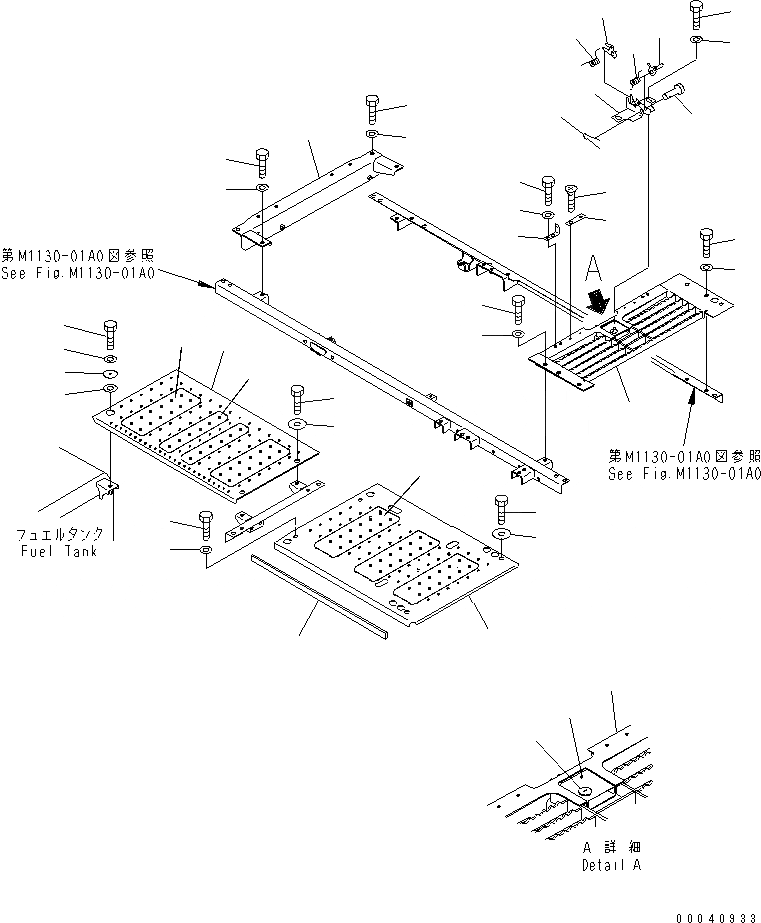

Запчасти Komatsu PC210NLC-8K КРЫШКА(КАБИНА ВЕРХН.) M ЧАСТИ КОРПУСА

|1

20Y-54-75650

COVER ASSEMBLY

1

20Y-54-78752

COVER

2

20Y-00-42140

PLATE

3

20Y-00-42120

PLATE

4

01010-81230

BOLT

5

175-54-34170

WASHER

6

01010-81230

BOLT

7

01643-31232

WASHER

8

20Y-54-19930

COLLAR

9

20Y-54-19920

PLATE

|10

20Y-54-75610

COVER ASSEMBLY

10

20Y-54-71712

COVER

11

20Y-00-42140

PLATE

12

20Y-54-73730

SHEET

13

20Y-54-78723

COVER

|13

20Y-54-78722

COVER

14

20Y-54-25852

LOCK

|14

20Y-54-25851

LOCK

15

20Y-54-73190

LOCK ASSEMBLY

|15

20Y-54-27540

LOCK ASSEMBLY

16

20Y-54-75910

PLATE

|16

20Y-54-27511

PLATE

17

20Y-54-75930

BRACKET

|17

20Y-54-27523

BRACKET

18

20Y-54-75920

LEVER

|18

21K-54-26341

LEVER

19

21K-54-26351

SPRING

20

20X-54-21460

SPRING

21

04205-11038

PIN

22

04050-13020

PIN, COTTER

23

01010-81025

BOLT

24

01643-31032

WASHER

25

20Y-54-27182

BRACKET

26

01010-81025

BOLT

27

01643-31032

WASHER

28

205-54-68440

PLATE

29

01224-40616

SCREW

30

01010-81230

BOLT

31

01643-31232

WASHER

32

01010-81230

BOLT

33

175-54-34170

WASHER

34

01010-81230

BOLT

35

01643-31232

WASHER

36

20Y-54-78171

FRAME

37

01010-81230

BOLT

38

01643-31232

WASHER
