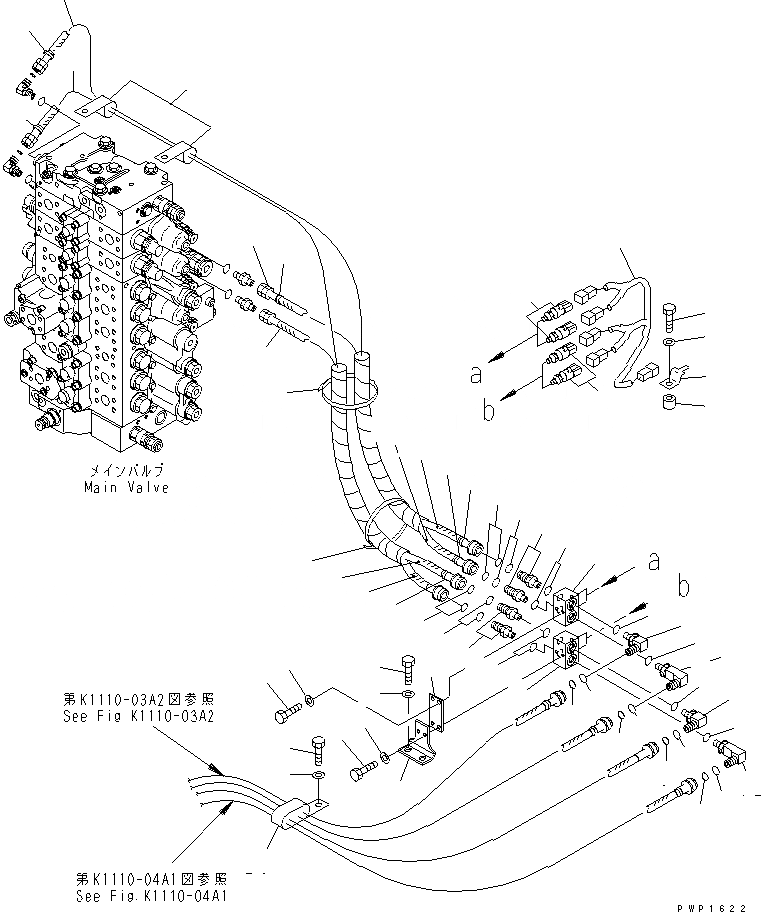

Запчасти Komatsu PC210NLC-7K ОСНОВН. ЛИНИЯ PPC (БЛОК) ( НАВЕСН. ОБОРУД) ( PB) ГИДРАВЛИКА

1

20Y-62-43430

BLOCK

2

01010-80820

BOLT

3

01643-30823

WASHER

4

20Y-62-43450

PLATE

5

20Y-62-43440

BRACKET

6

01010-81225

BOLT

7

01643-31232

WASHER

8

20Y-62-22271

ELBOW

9

201-60-11390

O-RING

10

20Y-62-19560

O-RING

11

07002-01423

O-RING

12

14X-43-14840

ELBOW

13

201-60-11390

O-RING

14

20Y-62-19560

O-RING

15

07002-01423

O-RING

16

20Y-62-16630

NIPPLE

17

201-60-11390

O-RING

18

20Y-62-19560

O-RING

19

07002-01423

O-RING

20

206-06-61130

SWITCH

21

20Y-06-22430

WIRING HARNESS

22

08053-01512

CLIP

23

195-33-11220

SPACER

24

01010-81045

BOLT

25

01643-31032

WASHER

26

04434-53412

CLIP

27

01010-81225

BOLT

28

01643-31232

WASHER

29

207-62-72720

HOSE¤ 1400MM

30

20Y-62-22810

BAND¤ YELLOW

31

20Y-62-43520

HOSE¤ 2100MM

32

20Y-62-43980

HOSE¤ 1450MM

33

20Y-62-43990

HOSE¤ 2150MM

34

20Y-62-22840

BAND¤ BLACK

35

20Y-62-22860

BAND¤ BROWN

36

08034-20536

BAND

37

04434-53412

CLIP
